Electric Lift Geared Traction Machine YJ336

Model NO.: YJ336

Use of Occasions: Others

Traction Ratio: 1:1 2:1

Max.Lifting Height: 60m

Trademark: Xinda

Transport Package: Non-Wooden

Specification: ISO9001 / CCC / CE

Origin: China

HS Code: 84253190

OUR ADVANTAGES

1.We have taken the lead in developing permanent magnet synchronous gearless traction machine successfully in china,achieving six items of "the whole nation first".
2.We have 20 years' export experience and are ready to serve your market.
3.More than thirty years in elevator spare parts.
4.A leader in Mainland China.
5.We can provide high quality technical support.
6.We guarantee first-rate services.

PRODUCT DESCRIPCTION

Product Name	Geared traction elevator machine electric lift geared traction machine
Drive	VVVF drive
Rated speed	0.45-1.0m/s
Rated capacity	2000,2500,5000kg
Static capacity	2600kg
Noise level	<66dB(A)
Torsional vibration	<4.5mm/s
Horizontal and vertical vibrations	<1.0mm/s
Brake voltage	DC 110V for brake opening,and DC 110V or DC55V for brake holding
Certificate	ISO9001 / CCC / CE
Features	Low-energy, Low noises, Non-pollution, Less maintenance
Payments	T/T, L/C

Don't hesitate to contact us if you have any questions.

PRODUCTS SHOW

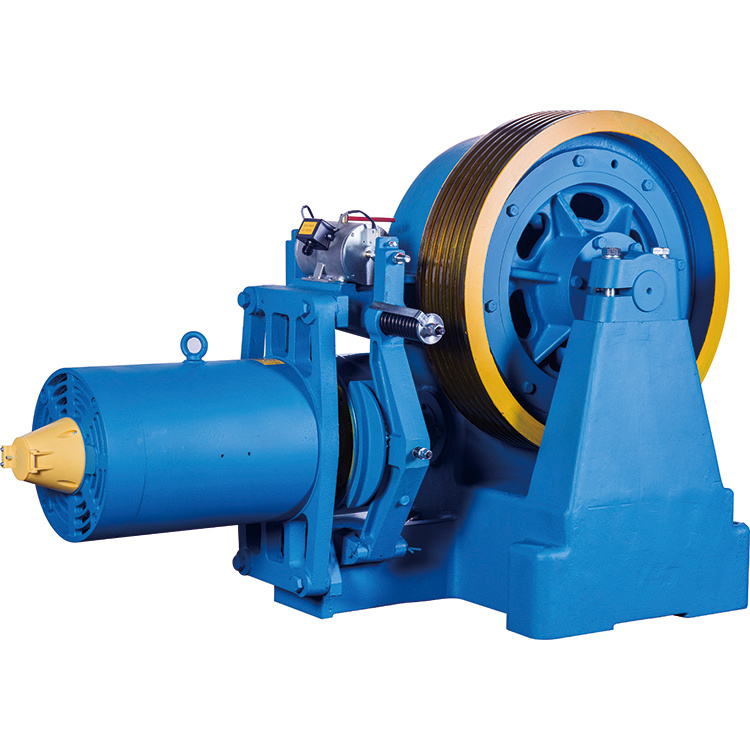

Geared Traction Elevator Machine Electric Lift Geared Traction Machine

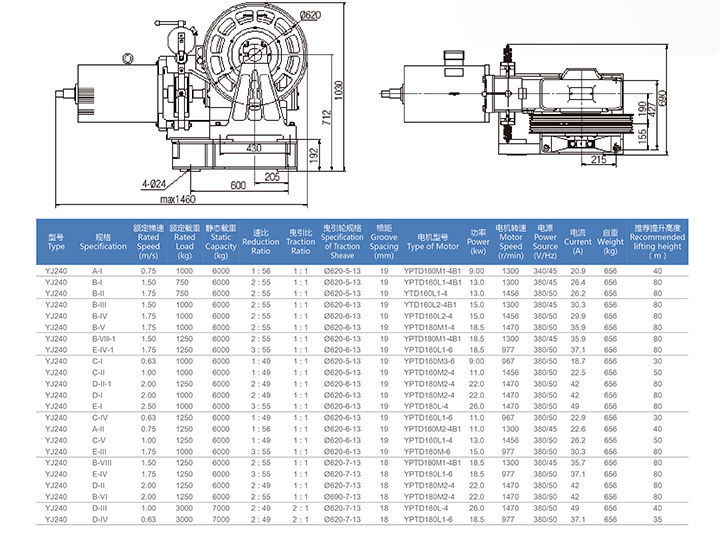

Overall dimensions and mounting dimensions

COMPANY OVERVIEW

With multi-industry and self-supporting import and export rights, China Ningbo Xinda Group Co., Ltd. is one of the largest manufacturers & exporters for elevator key mechanical components in the world. we have 20 years' export experience and are ready to serve your market.Our global annual sales amount reached US$200 million in 2009. We provide worldwide customers with a full line of reliable products:

1. Elevator key components:such as Geared Traction Machine, Gearless Traction Machine, lift motors, Elevator Car, Door Operator, Landing Door, Overspeed Governor, Safety Gear, etc.
2. Complete elevators, escalators, moving walks:such as Passenger Elevators, Freight Elevators, Commercial elevators, Residential Elevator, MRL elevators, Service Elevator, Bed Elevator, Observation Elevator, Indoor or Outdoor Escalators, passenger conveyors etc.
3. Screw air compressors:such as Twin-screw compressor, stationery screw compressors, air-cooled Screw Compressor, water cooled Screw Compressor, oil-flooded compressor, variable frequency screw compressor, portable screw compressor etc.
4. Rotogravure Printing machines:such as combined type rotogravure press, dry lamination machine, rotogravure printing & coating machine, rotogravure printing & slitting machine etc.

Our products exported to overseas markets, including: Germany, Turkey, Russia, India, South Africa, Australia, Brazil, Argentina, and so on.
Don't hesitate to contact us if you have any questions.
