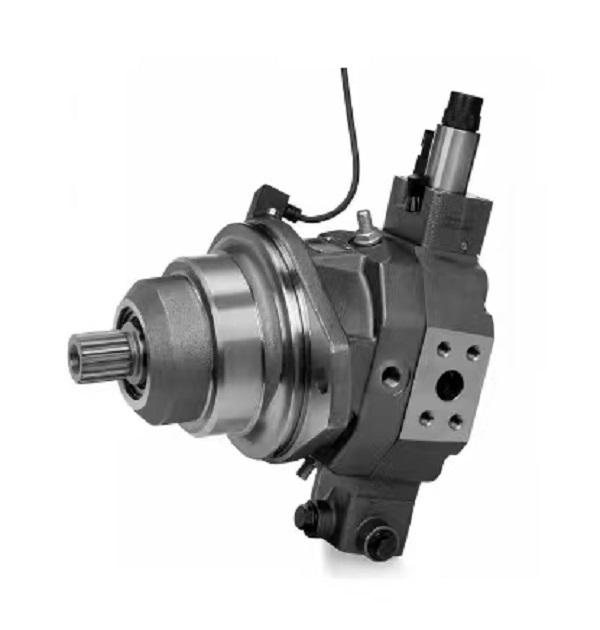

A6VE Series Variable Piston Motor

Product Overview

A6VE Series Variable Piston Motor is swashplate variable displacement Hydraulic piston motor, the core power output component for closed-loop hydraulic system of heavy-duty mobile Machine. As high-performance hydraulic motor, it converts hydraulic pressure energy supplied by the hydraulic system into rotary mechanical torque to drive travel, slewing and winch mechanisms of engineering Machine. This Hydraulic piston motor is widely used in hydrostatic closed transmission circuits, which can adjust displacement continuously according to load changes of the Machine. It switches between low-speed high-torque and high-speed low-torque working states to meet diverse operation requirements.

A6VE series provides multiple displacement specifications including 28cc, 55cc, 80cc, 107cc, 160cc. Original and domestic replacement versions are available. Consistent mounting dimensions, shaft size and oil port layout allow direct replacement without modifying the existing hydraulic system.

Technical Specifications

- Model: A6VE Series Variable Piston Motor

- Type: Variable displacement Hydraulic piston motor / hydraulic motor

- Displacement options: 28cc, 55cc, 80cc, 107cc, 160cc

- Rated Pressure: 400 bar

- Peak Pressure: 450 bar

- Structure: Axial piston swashplate design

- Working Medium: Anti-wear hydraulic mineral oil

- Control types: EP, HA, HD and other control options

- Application: Closed loop hydraulic system for heavy mobile construction Machine

- Feature: High volumetric efficiency, strong overload capacity, compact structure

Working Principle

When the Machine operates, high-pressure hydraulic oil from the hydraulic system flows into the cylinder block of this Hydraulic piston motor. The pressurized oil pushes pistons against the inclined swashplate to generate rotary motion of the output shaft. By adjusting the swashplate angle, this variable hydraulic motor changes its displacement. When the Machine encounters heavy load, the motor increases displacement to output larger torque; during light-load travel, it reduces displacement to achieve higher rotating speed. The pressure feedback signal from the hydraulic system automatically controls the swashplate angle, matching power output to load demand. Heavy-duty bearings and precision piston-valve pairs guarantee stable rotation under continuous shock and vibration.

Core Advantages

1. A6VE Hydraulic piston motor owns high volumetric efficiency and low heat generation, optimizing energy utilization of the whole hydraulic system.

2. Multiple displacements and control modes for selection, flexible to adapt different working scenarios of construction and mining Machine.

3. Robust cast housing and premium sealing assemblies, excellent shock and vibration resistance, reliable performance in harsh site environments.

4. Standard installation interface, interchangeable with original parts. Quick replacement without redesigning or modifying the hydraulic system of your Machine.

5. Both genuine and aftermarket alternatives available, cost-effective spare parts for equipment overhaul and global hydraulic distributors stock.

Application Range

This series hydraulic motor is the key drive unit for hydraulic system of asphalt pavers, crawler carriers, drilling rigs, concrete pump trucks and other heavy-duty mobile Machine. It is commonly applied for hydrostatic travel drive and winch drive, used in new machine assembly and field maintenance replacement.
