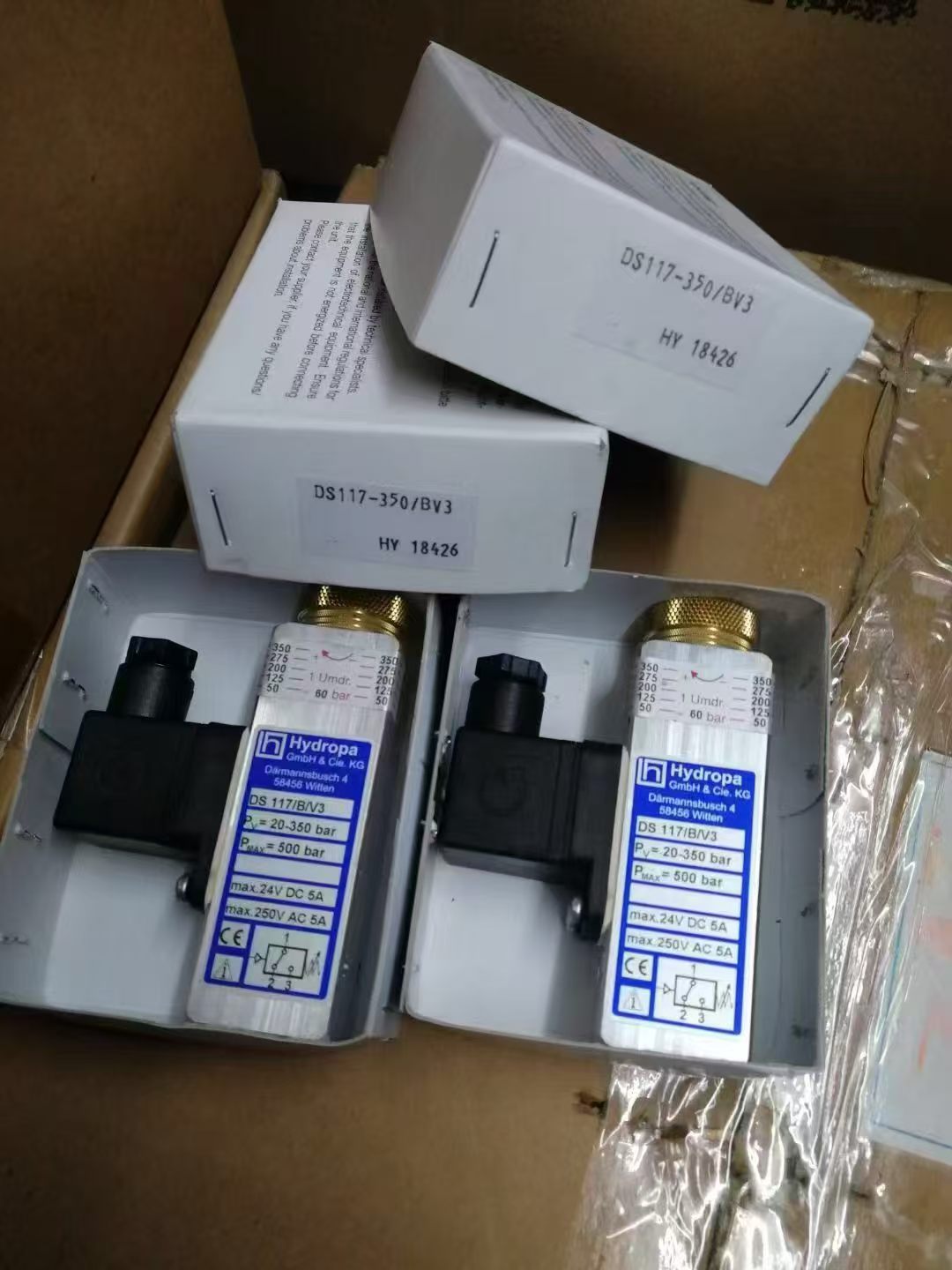

Hydropa Pressure Switch, Full Series DS117, DS507, DS307

Product Overview

Hydropa pressure switch is original German piston-type pressure monitoring component, including full series DS117, DS507 and DS307. It serves as critical safety protection part for hydraulic system on industrial and construction Machine. This pressure switch adopts piston-spring structure with adjustable switching pressure range, maximum pressure resistance up to 500 bar. It delivers stable performance under continuous working conditions and excellent anti-shock capability, monitoring pressure changes inside the hydraulic system and sending electrical signal once pressure reaches preset threshold to protect the whole Machine from overload damage.

Different models cover various pressure ranges: DS307 for low to medium pressure, DS117 for medium pressure, DS507 for high pressure applications. All are genuine Hydropa products, widely used for pressure monitoring and safety cut-off in diverse hydraulic system.

Technical Specifications

- Product Name: Hydropa Pressure Switch

- Models: DS117, DS507, DS307, complete series available

- Origin: Made in Germany, original genuine

- Structure: Piston spring type

- Adjustable pressure range: Multiple optional ranges for each model

- Max withstand pressure: 500 bar

- Electrical specification: Max 250V AC / 24V DC, 5A

- Working Medium: Anti-wear hydraulic mineral oil

- Working Temperature: -40℃ ~ +90℃

- Application: Pressure monitoring & safety protection of hydraulic system for industrial Machine

- Feature: Shock-resistant, high repeat accuracy, reliable switching action

Working Principle

When the Machine is running, hydraulic oil pressure from the hydraulic system acts on the internal piston of the pressure switch. The piston pushes against the preloaded spring. Once hydraulic pressure reaches the preset value, the piston triggers the built-in microswitch and outputs an electrical signal. Users can adjust the set switching pressure by tuning the top adjustment screw. When system pressure drops below the setting value, the microswitch resets automatically. This signal can control pump unloading, alarm or equipment stop to safeguard the hydraulic system and the whole Machine.

Core Advantages

1. Original German Hydropa quality, DS117, DS507, DS307 full series in stock, flexible selection for different hydraulic system.

2. Adjustable pressure setting, max pressure resistance up to 500 bar, meets low/medium/high pressure working requirements of Machine.

3. Piston spring design, strong anti-shock performance, stable operation under vibration and heavy load hydraulic environment.

4. High switching repeat precision, long electrical service life, low failure rate for continuous monitoring of hydraulic system.

5. Compact structure, easy installation and wiring, convenient maintenance for hydraulic stations and engineering Machine.

Application Range

Hydropa DS117, DS507, DS307 pressure switches are widely installed in hydraulic system of hydraulic power packs, machine tools, construction machinery, mining equipment and other industrial Machine. Main functions include overpressure alarm, pump unloading, safety cut-off and pressure sequence control. Popular for new machine assembly and spare part replacement.
