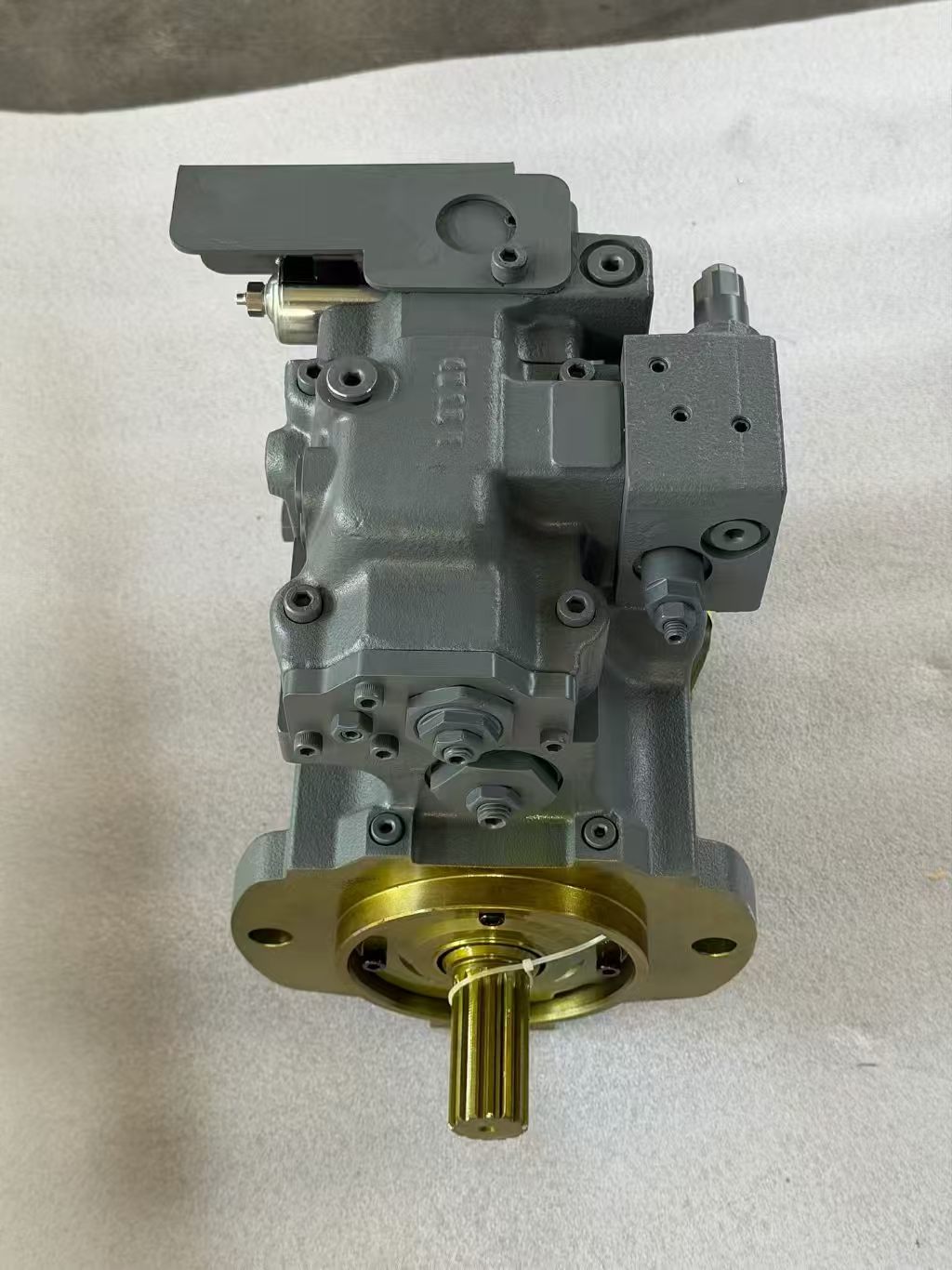

K7V63S Hydraulic piston pump

Product Overview

K7V63S is a Kawasaki KPM variable swashplate Hydraulic piston pump, a high-performance hydraulic pump widely adopted as the main power source for the hydraulic system of construction Machine. This Hydraulic piston pump is the upgraded version of K3V63 series, featuring compact overall structure, high power density, low noise and excellent volumetric efficiency. It converts mechanical rotational energy into high-pressure hydraulic oil energy, supplying stable flow and pressure for the whole hydraulic system of excavators and other mobile engineering Machine.

The K7V63S hydraulic pump adopts open-loop control design, equipped with built-in load sensing regulator. It can automatically adjust displacement according to load changes of the Machine, saving energy and reducing heat generation inside the hydraulic system. It is available as original replacement or aftermarket spare part for medium-sized excavators.

Technical Specifications

- Model: K7V63S

- Type: Variable displacement Hydraulic piston pump / hydraulic pump

- Displacement: 63cc/rev

- Rated Pressure: 350 bar

- Peak Pressure: 400 bar

- Max Self-priming Speed: 2650 rpm

- Working Medium: Anti-wear hydraulic mineral oil

- Control Mode: Load sensing control

- Application: Main pump for open-loop hydraulic system of construction Machine

- Feature: Compact layout, low noise, high efficiency, heavy-duty bearing design

Working Principle

When the Machine starts, the drive shaft drives the cylinder block of this Hydraulic piston pump to rotate. The pistons reciprocate along the angled swashplate, completing oil suction and oil discharge cycles. As a variable hydraulic pump, the built-in regulator senses pressure feedback signal from the hydraulic system and changes the swashplate angle dynamically. It automatically adjusts output flow to match the load demand of the Machine. The high-pressure hydraulic oil delivered by the hydraulic pump flows into the hydraulic system, driving hydraulic cylinders and hydraulic motors to realize digging, boom lifting and slewing actions of the excavator.

Core Advantages

1. K7V63S Hydraulic piston pump has high volumetric efficiency and low operating noise, reducing energy consumption of the whole hydraulic system.

2. Reinforced heavy-load bearings and thicker drive shaft reduce edge load, greatly extending service life of the hydraulic pump under continuous heavy-duty working conditions of the Machine.

3. Compact structure with shorter overall length, easy to install in limited mounting space of construction Machine.

4. Load-sensing control matches power output automatically, effectively preventing overload damage to the hydraulic system.

5. Widely interchangeable, available in original and aftermarket versions, ideal for equipment overhaul and spare part stocking for global hydraulic distributors.

Application Range

This hydraulic pump serves as the main pump of hydraulic system for 10–15 ton excavators, crawler drills, pile drivers and other mobile engineering Machine. K7V63S Hydraulic piston pump is commonly used for new machine assembly and field maintenance replacement.
