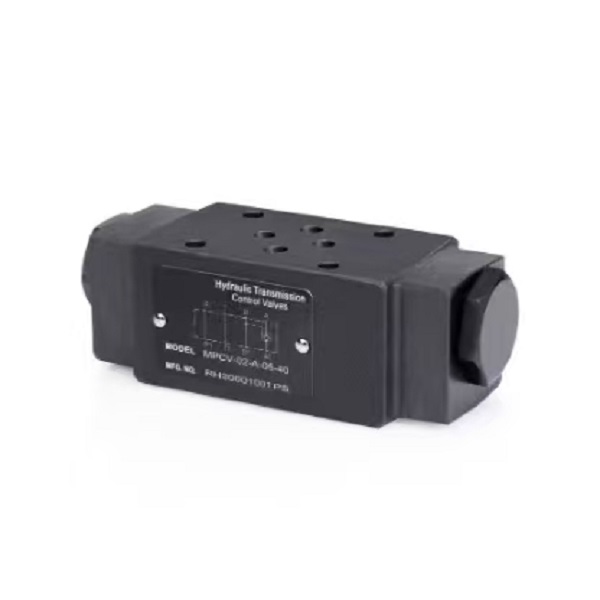

MPCV Modular Pilot Operated Check Valve

Product Overview

MPCV Modular Pilot Operated Check Valve is a sandwich stacked Hydraulic valve, also known as hydraulic lock. It is an essential load-holding component for the hydraulic system of industrial Machine. This Hydraulic valve adopts modular stacked design according to ISO4401 standard mounting surface. It allows free oil flow in one direction and tightly locks the oil passage in reverse direction. When pilot control pressure is supplied, the internal pilot piston pushes the poppet open to realize reverse oil flow. It can keep hydraulic cylinders locked in position without creeping, ensuring safety and position retention for the hydraulic system of Machine.

Multiple models including MPCV-02, MPCV-03 are available with A/B/W port types for single-side or double-side locking. The compact sandwich structure can be stacked directly between solenoid valve and manifold block without extra pipe connections, reducing leakage points of the hydraulic system.

Technical Specifications

- Model: MPCV Modular Pilot Operated Check Valve

- Type: Stacked pilot operated check Hydraulic valve

- Mounting standard: ISO4401, NG6 / NG10 optional

- Max working pressure: 25 MPa

- Rated flow: 35L/min (02 size), 70L/min (03 size)

- Poppet seal: Metal to metal zero-leakage sealing

- Working medium: Anti-wear hydraulic mineral oil

- Working temperature: -20℃ ~ +80℃

- Application: Load holding & position locking for hydraulic system of industrial Machine

- Feature: Zero leakage locking, compact sandwich installation, stable pilot control

Working Principle

When the Machine runs, hydraulic oil flows freely through the poppet of this Hydraulic valve in forward direction. Once the oil flow reverses, the poppet is pressed tightly onto the valve seat to cut off the oil circuit and lock the hydraulic actuator in place. When reverse movement is required, pilot pressure oil from the hydraulic system pushes the built-in pilot piston. The piston mechanically pushes the poppet away from the seat, enabling reverse oil flow and releasing the locked cylinder. After pilot pressure disappears, the spring resets the poppet and re-locks the circuit, preventing accidental movement of the Machine.

Core Advantages

1. MPCV Hydraulic valve uses precision poppet sealing design, nearly zero internal leakage for long-time pressure holding of the hydraulic system.

2. Modular sandwich stacked installation, simple assembly between valve stack, less pipeline connections and fewer potential leak points for the Machine.

3. Reliable pilot control, stable unlocking performance, effectively preventing cylinder drifting and position shift under heavy load.

4. Robust cast valve body and premium sealing elements, resistant to pressure impact, suitable for continuous operation of the hydraulic system.

5. Multiple port configurations optional (A, B, W), widely interchangeable for hydraulic power unit assembly and equipment overhaul spare parts.

Application Range

This Hydraulic valve is widely used in the hydraulic system of hydraulic power packs, injection molding machines, machine tools, lifting machinery and other industrial Machine. Mainly applied for hydraulic cylinder position locking, load holding and safety protection, used in new machine assembly and maintenance replacement.
