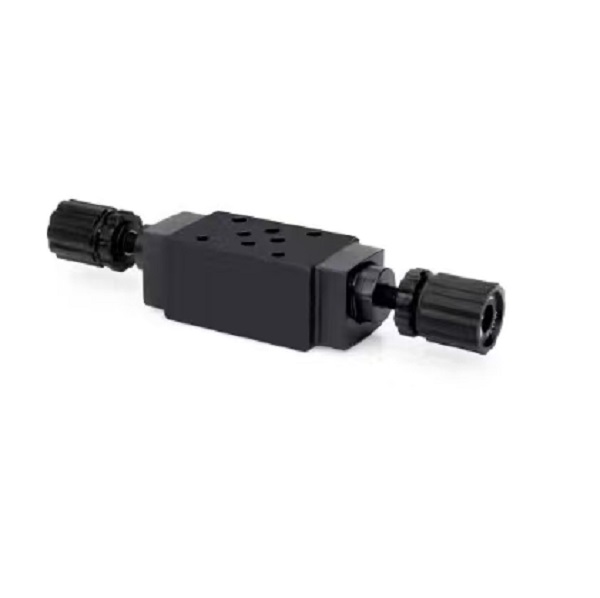

MTCV Modular Throttle Check Valve

Product Overview

MTCV Modular Throttle Check Valve is a sandwich stacked Hydraulic valve, used as flow control component for the hydraulic system of industrial Machine. This Hydraulic valve follows ISO4401 standard mounting surface for stacked assembly. It integrates throttle and check valve functions into one unit. In forward direction, hydraulic oil flows through the adjustable throttle orifice to limit flow and control actuator speed; in reverse direction, the built-in check valve fully opens to allow free oil return without throttling resistance. It can be stacked directly between solenoid valve and manifold block, simplifying piping layout and reducing leakage points of the hydraulic system.

Available in NG6 and NG10 sizes, with single or dual A/B port adjustment options. Users can turn the adjusting knob to precisely set flow rate to meet different speed requirements of the Machine.

Technical Specifications

- Model: MTCV Modular Throttle Check Valve

- Type: Modular throttle check Hydraulic valve

- Mounting standard: ISO4401, NG6 / NG10 optional

- Max working pressure: 25 MPa

- Rated flow: 40 L/min (NG6), 80 L/min (NG10)

- Control mode: Meter-in speed regulation

- Working medium: Anti-wear hydraulic mineral oil

- Working temperature: -20℃ ~ +80℃

- Application: Flow and speed control for hydraulic system of industrial Machine

- Feature: Stacked installation, adjustable flow, built-in check valve, compact structure

Working Principle

When the Machine operates, hydraulic oil from the hydraulic system flows into this Hydraulic valve. During forward movement, oil passes through the adjustable throttle gap. Rotating the knob changes the opening size of the orifice to restrict flow and control the moving speed of hydraulic cylinders. When oil flows in reverse direction, the pressure pushes the check poppet open, and oil passes freely without throttling. This Hydraulic valve realizes controlled forward speed and free reverse return, ensuring smooth and stable movement of the actuator in the hydraulic system.

Core Advantages

1. MTCV Hydraulic valve adopts modular sandwich design, easy stacking together with other modular valves, fewer pipelines and lower risk of oil leakage for the hydraulic system.

2. Manual adjustable throttle knob, precise flow regulation to set ideal movement speed for the Machine.

3. Two-in-one design combining throttle and check valve, saves installation space and reduces component quantity.

4. Precision machined valve spool, stable regulating performance, low pressure loss during continuous operation.

5. Simple structure, convenient maintenance and replacement, ideal for hydraulic power pack assembly and spare part inventory.

Application Range

This Hydraulic valve is widely applied in hydraulic system of hydraulic power units, injection molding machines, machine tools, automation clamps and other industrial Machine. It controls the telescopic speed of hydraulic cylinders, used in new machine assembly and equipment overhaul replacement.
