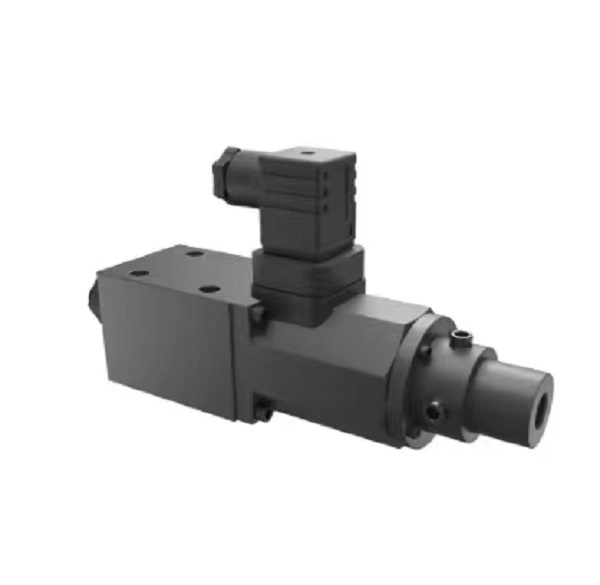

EDG Direct-acting Proportional Relief Valve

Product Overview

EDG Direct-acting Proportional Relief Valve is a high-precision electro-hydraulic Hydraulic valve, designed for pilot pressure control of the hydraulic system of industrial Machine. This Hydraulic valve adopts direct poppet structure, which can continuously adjust the relief pressure linearly according to the electrical input signal. It matches with proportional amplifier to realize stepless pressure regulation of the hydraulic system. Widely used as pilot pressure regulating valve, it stabilizes and limits the system pressure of small-flow hydraulic circuits, protecting the whole Machine from overpressure damage.

The EDG series (EDG-01) is plate mounting type, mainly used for pilot oil circuit pressure control rather than main high-flow circuit. Multiple pressure range versions are available, such as C type for medium pressure and H type for high pressure. Original and aftermarket replacement options are both offered, suitable for hydraulic power unit, fixture and automation Machine pressure control renovation and spare parts replacement.

Technical Specifications

- Model: EDG Direct-acting Proportional Relief Valve

- Type: Direct-acting proportional relief Hydraulic valve

- Mounting: Subplate mounting

- Max working pressure: 250 bar

- Rated flow: 2 L/min

- Input signal: 0~10V or 4~20mA, matched with proportional amplifier

- Coil voltage: DC24V

- Pressure hysteresis: Less than 5%

- Working medium: Anti-wear hydraulic mineral oil

- Application: Pilot pressure control for hydraulic system of industrial Machine

- Feature: Fast response, high pressure control accuracy, compact size

Working Principle

When the Machine is running, the controller sends adjustable electrical signal to this Hydraulic valve. The proportional solenoid generates electromagnetic force proportional to the signal value and acts directly on the poppet against the spring. When hydraulic pressure from the hydraulic system exceeds the set pressure, the poppet lifts to release excess oil and limit system pressure. By changing the input electric signal, the electromagnetic force changes, so the relief pressure can be adjusted continuously. If the electric signal is cut off, the valve returns to the default pressure state, safeguarding the hydraulic system and the Machine.

Core Advantages

1. EDG Hydraulic valve provides linear proportional pressure regulation, high control precision and quick response for the hydraulic system.

2. Direct acting poppet structure, simple internal construction, convenient pressure tuning for pilot control circuits of Machine.

3. Low hysteresis and stable output pressure, less pressure fluctuation during continuous operation of the hydraulic system.

4. Compact plate-mounted design, occupies small installation space, easy wiring and maintenance.

5. Multiple pressure range selections, good interchangeability, ideal spare part for hydraulic station, fixture and servo system overhaul.

Application Range

This Hydraulic valve is widely installed in the hydraulic system of hydraulic power packs, hydraulic fixtures, injection molding machines, servo test benches and other industrial Machine. It is mainly used for pilot circuit stepless pressure adjustment and overpressure protection, for new machine assembly and maintenance replacement.
