2.54mm Right Angle Slot DIP Connector

2.54mm Right Angle Slot DIP Connector

2 week ago

2 0

HuiZhou Antenk Electronics Co., LTD

 5 year year

Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. produces ECCS series 2.54 millimeter right angle slot DIP connectors to achieve stable signal and power interconnection between printed circuit boards and matching card edge assemblies. This right angle slot DIP connector uses PBT plus glass filler or LCP insulator with UL94V 0 flame retardant grade, contact material is brass or phosphor bronze with nickel underlayer, contact area supports gold flash and multiple gold thickness plating while solder tail applies tin plating. It supports wide pin count selection from 4 pins up to 128 pins, rated current reaches 3 amp, maximum contact resistance 20 milliohms, minimum insulation resistance 5000 megaohms at 500V DC and 1000V AC RMS dielectric withstand, operating temperature ranges from minus 55 degree Celsius to plus 105 degree Celsius with max 0.4 kilogram force insertion force per contact pair. Users implement right angle DIP through hole soldering on PCB boards, select suitable pin number plastic material and contact plating according to project requirements, strictly follow official drawing for PCB layout and keep finished goods under dry storage environment to prevent terminal oxidation. Unlike competitors that outsource core production procedures Antenk completes full in house manufacturing including independent mold development terminal stamping plastic injection molding electroplating and comprehensive laboratory reliability verification. We hold ISO9001 ISO14001 IATF16949 and UL certifications and provide tray bag tube tape and reel and other packaging options, more than seventy percent of our connectors are exported globally. Please share your project specifications for free sample evaluation and full technical datasheet resources.

1. Phosphor Bronze Slot Connector delivers reliable electrical conductivity and good spring performance for long term plug in operations.

2. High Insulation DIP Connector offers 5000 megaohms minimum insulation resistance to avoid signal interference in electronic systems.

3. Right Angle Slot Socket adopts angled DIP structure to realize space saving board mounting for compact electronic devices.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 2.54 millimeter slot right angle DIP connector

1.2 Measurement unit: millimeter

1.3 Key dimension: 2.54 millimeter pitch, pin count ranges from 4 pins up to 128 pins. DIP solder tail length is selectable. Refer to official engineering drawing for complete dimension tables, PCB footprint and card layout reference data. Maximum insertion force is 0.4 kilogram force per contact pair.

1.4 Contact plating options: gold flash, 3 micro inch gold, 5 micro inch gold, 10 micro inch gold, 15 micro inch gold, 30 micro inch gold, gold tin composite plating, pure tin plating. Nickel underlayer applies before surface plating.

1.5 Available packaging form: tray, bag, tube, tube with cap, tape and reel, tape and reel with cap

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and PCB layout files for your hardware design validation.

2. Material Construction

2.1 Insulator housing: Optional PBT plus glass filler or LCP material with UL94V 0 flame retardant grade

2.2 Contact terminal: Brass or phosphor bronze material, contact area is gold plated and solder tail is tin plated with nickel base layer

3. Electrical & Performance Parameters

3.1 Rated current: 3 Amp

3.2 Maximum contact resistance: 20 milliohms

3.3 Minimum insulation resistance: 5000 megaohms measured under 500V DC

3.4 Dielectric withstand: 1000V AC RMS at 60 Hertz for one minute

3.5 Operating temperature range: minus 55 degree Celsius to plus 105 degree Celsius

4. Usage Method

4.1 Assembly mode: Right angle DIP through hole soldering onto printed circuit boards

4.2 Operation tip: Select suitable pin quantity, insulator material and contact plating according to actual project requirements

5. Application Scenarios

5.1 Industrial control equipment

5.2 Communication electronic assemblies

5.3 Instrument and meter devices

5.4 General card edge interconnection systems

6. Operation & Storage Precautions

6.1 Strictly follow official drawing tolerance standards for PCB and card layout design

6.2 Do not exceed maximum insertion force to avoid terminal spring force decline or permanent deformation

6.3 Store products in dry environment to prevent oxidation of plated contact and solder surfaces

6.4 Confirm pin count, housing material and plating specifications before mechanical and circuit design

6.5 CTA: Submit your pin count, material and plating demands, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

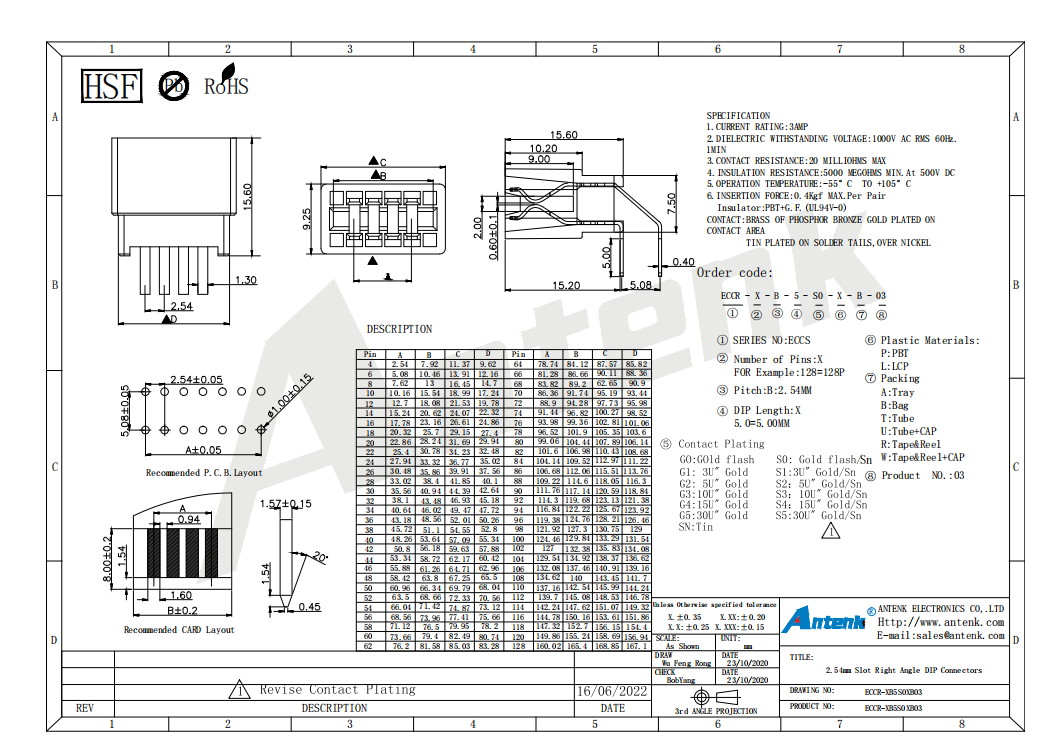

Product Drawing：

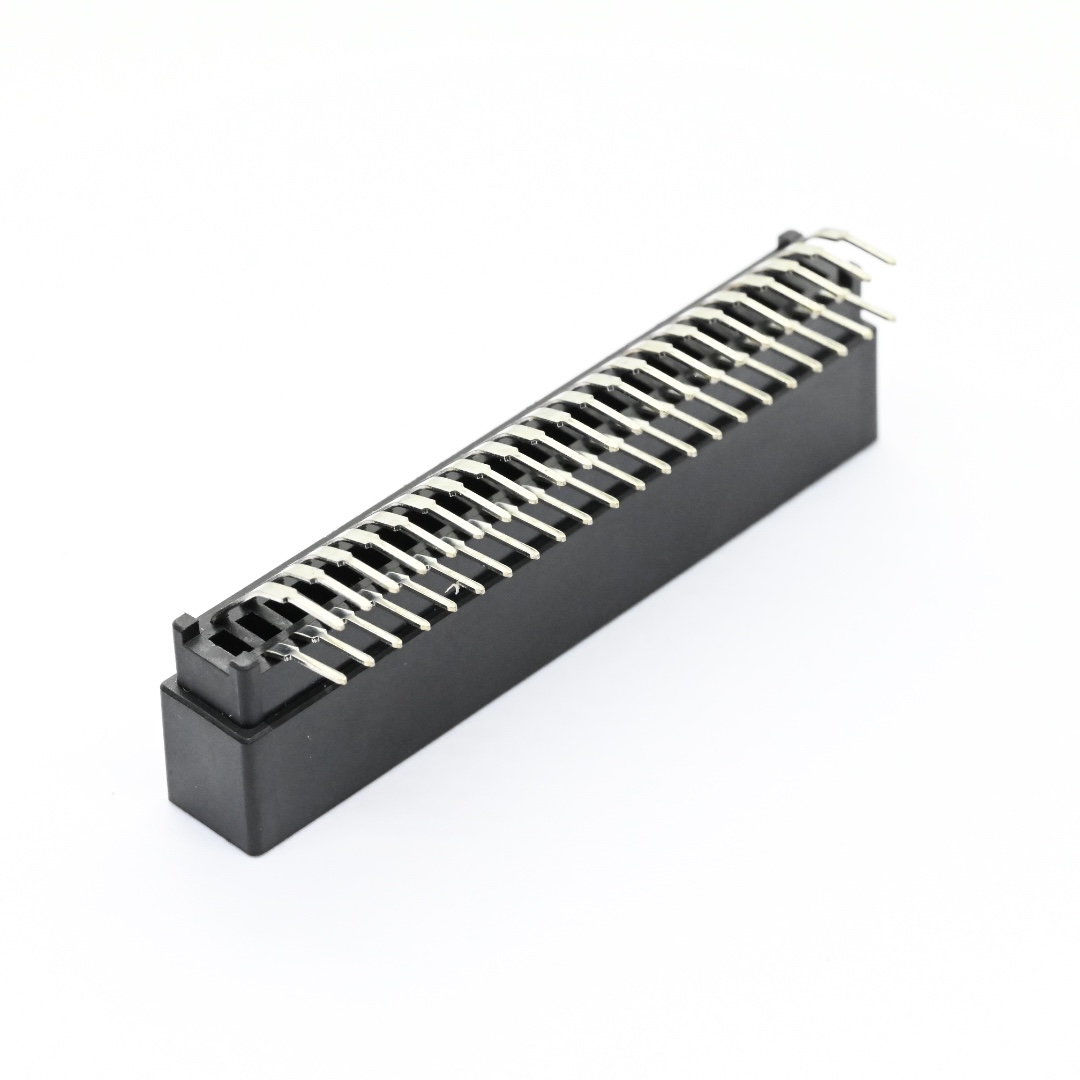

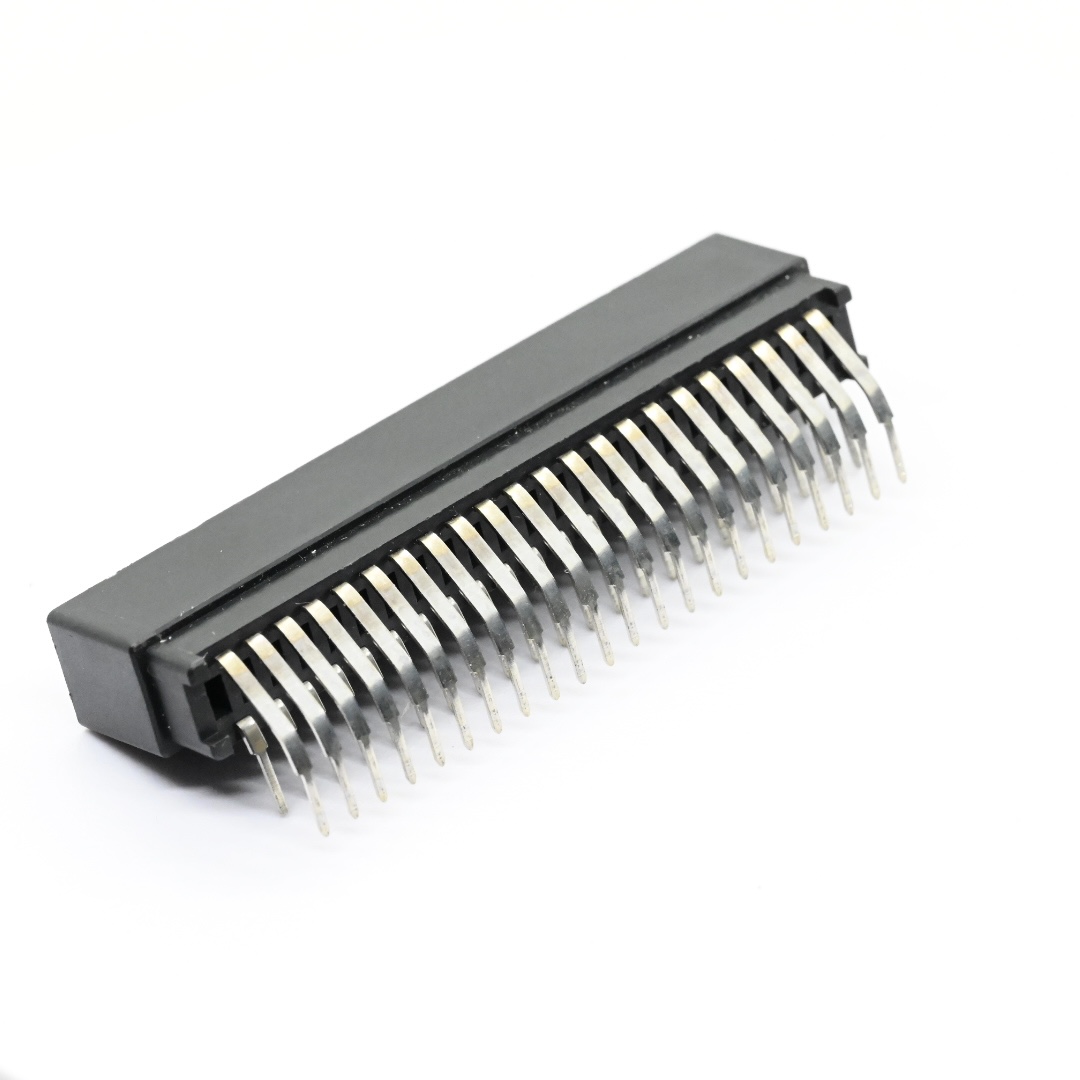

ECCR-44-B-3.8-S0-D-A-04+2.54mm Slot Right Angle DIP Connectors（6）

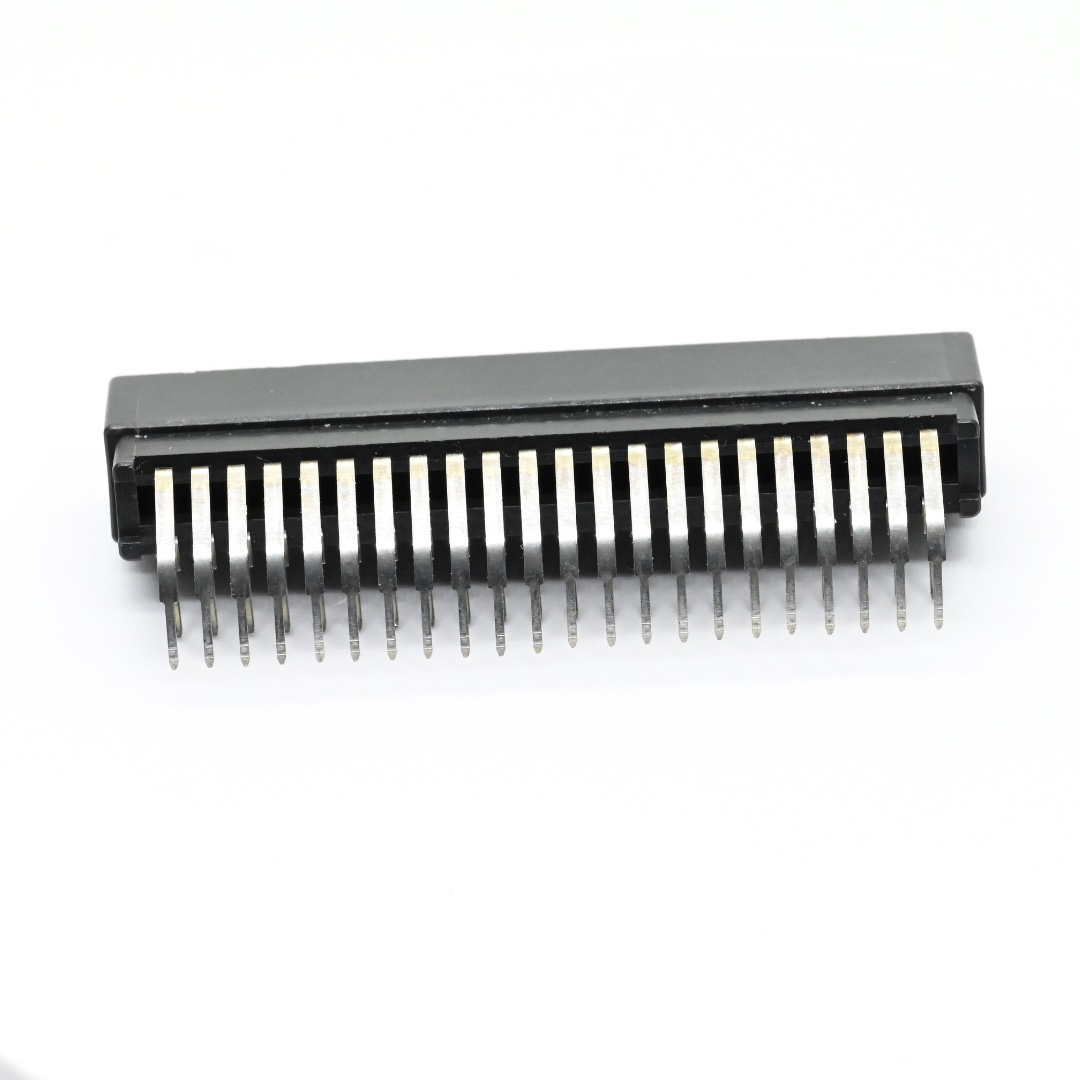

ECCR-44-B-3.8-S0-D-A-04+2.54mm Slot Right Angle DIP Connectors（5）

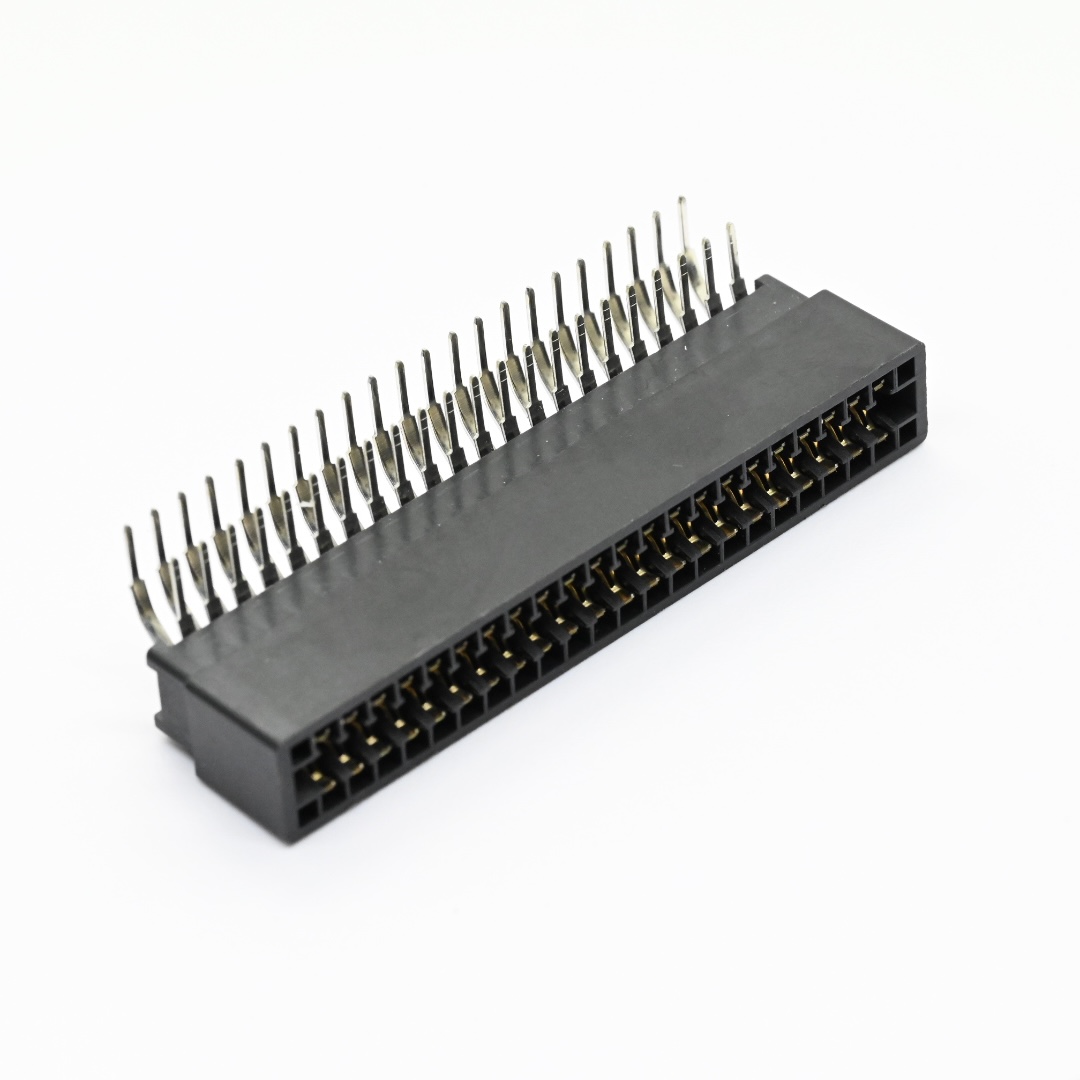

ECCR-44-B-3.8-S0-D-A-04+2.54mm Slot Right Angle DIP Connectors（4）

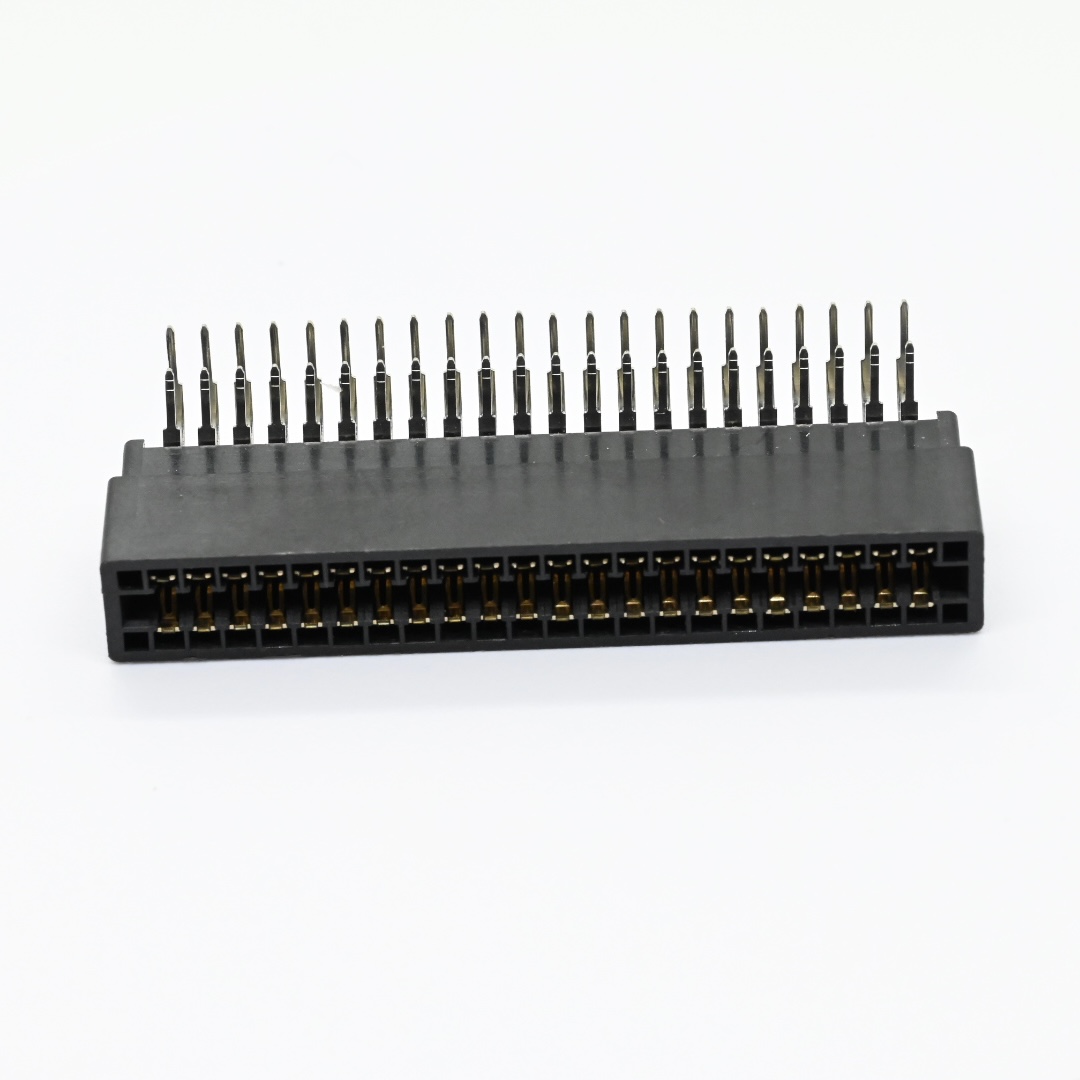

ECCR-44-B-3.8-S0-D-A-04+2.54mm Slot Right Angle DIP Connectors（3）
