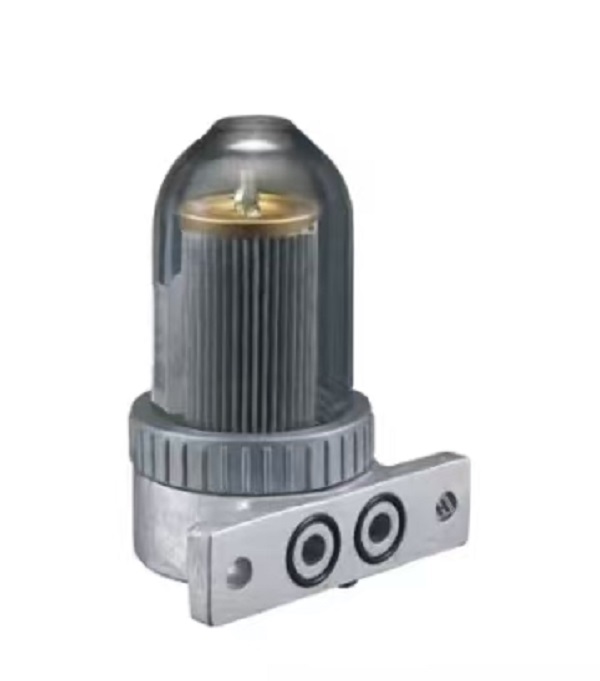

CWU Series Magnetic Filter

Product Overview

CWU Series Magnetic Filter is a professional FILTER specially used for the hydraulic system of industrial Machine. It adopts magnetic adsorption principle to capture ferromagnetic metal particles in hydraulic oil. Installed inside the hydraulic oil tank, this magnetic FILTER is often combined with return filter or suction filter to realize double filtration, greatly reducing metal abrasive contaminants in the hydraulic system and protecting precision components of the Machine such as hydraulic pumps, valves and cylinders.

The CWU series magnetic FILTER is equipped with high-strength permanent magnet rods. Ferrous wear debris will be firmly adsorbed on the magnet surface when oil flows through. It can trap fine metal particles that ordinary filter elements are hard to intercept. Multiple models cover different flow rates, simple structure and easy cleaning, widely matched with various hydraulic stations and industrial Machine.

Technical Specifications

- Model: CWU Series Magnetic Filter

- Type: Tank built-in magnetic FILTER

- Rated flow: 6 ~ 400 L/min optional

- Magnetic material: High-performance permanent magnet

- Working medium: Anti-wear hydraulic mineral oil, turbine oil, lubricating oil

- Operating temperature: -20℃ ~ +80℃

- Installation: Mounted inside hydraulic oil tank

- Feature: Magnetic absorption for iron impurities, easy disassembly & cleaning, no consumable filter element, long service life

- Application: Auxiliary filtration for hydraulic system of industrial Machine

Working Principle

When the Machine operates, the hydraulic oil circulates continuously in the hydraulic system. As oil passes the CWU magnetic FILTER, high-strength magnets generate strong magnetic field. Ferromagnetic impurities like iron powder, steel scraps and wear metal particles are attracted and stuck on the surface of magnetic rods. Non-magnetic contaminants will be blocked by auxiliary mesh screen. After long-time operation, you only need to take out the magnetic assembly and wipe off adsorbed metal debris, no need to replace filter element, lowering running cost of the hydraulic system.

Core Advantages

1. Magnetic filtration targets fine iron particles produced by wear inside the hydraulic system, effectively reducing abrasive damage to key parts of the Machine.

2. No disposable filter element, only regular cleaning required, saving long-term spare parts cost.

3. Compact structure, easy installation inside oil tank, will not occupy extra pipeline space of the hydraulic system.

4. Stable magnetic force, long service life, strong resistance to oil flow impact.

5. Simple maintenance: take out magnet assembly directly for cleaning, convenient for daily upkeep of the Machine.

Application Range

This FILTER is widely used in the hydraulic system of hydraulic power packs, machine tools, metallurgical machinery, mining equipment, plastic machinery and other industrial Machine. It serves as auxiliary filtration to remove metal wear particles, protecting hydraulic components and extending the service life of the whole hydraulic system.
