OEM Straight-tooth Gears

2 week ago

0 0

Dongguan Shengpeng Precision Technology Co., Ltd.

 2 year year

Product details

一、Product Description

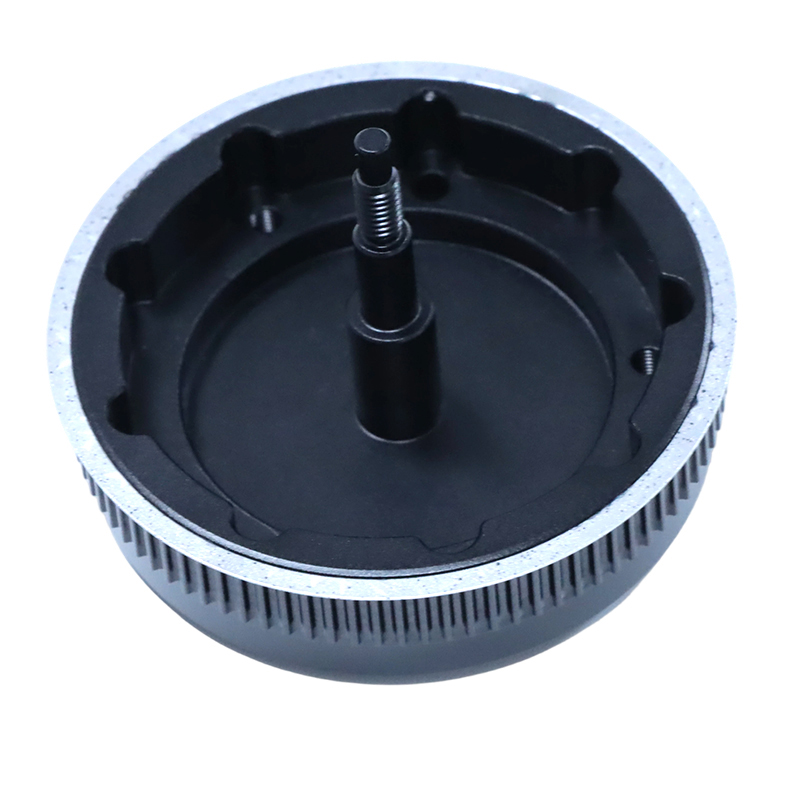

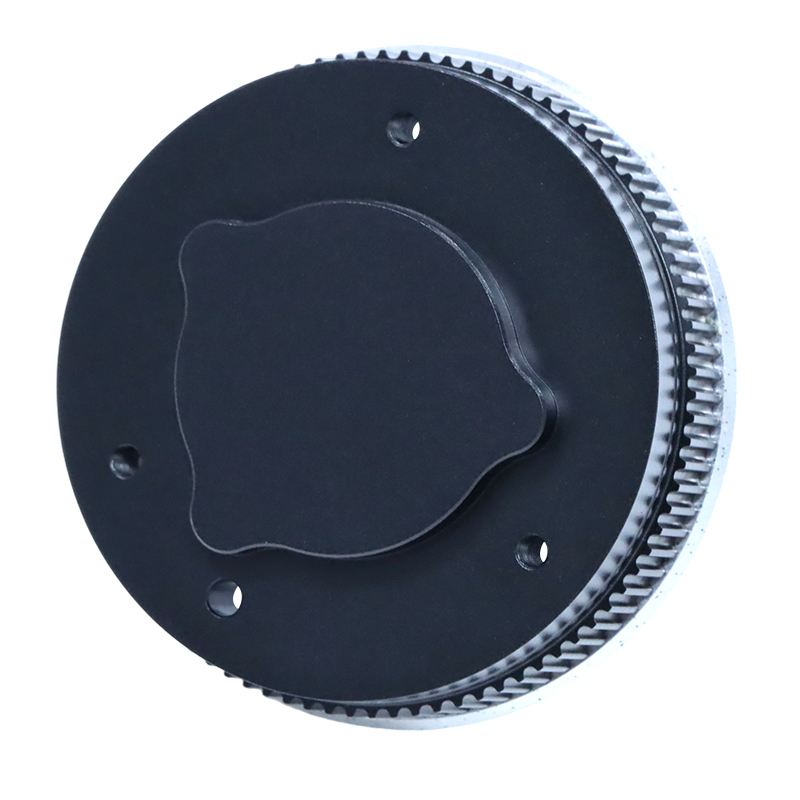

These OEM straight-tooth transmission gears are machined from 6082 aluminum alloy. Compared to standard 6061 aluminum, 6082 offers superior tensile strength and wear resistance, balancing lightweight design with structural stability and reduced rotational inertia; they are ideal for medium-speed, light-load transmission applications. The gears undergo black anodizing to create a dense protective oxide layer, effectively enhancing wear and corrosion resistance, while the matte black finish minimizes internal equipment glare. We offer comprehensive OEM customization, allowing for adjustments to tooth count, module, face width, center bore, locating holes, and keyway structures based on client drawings. These gears are widely used in automation equipment, precision testing instruments, and compact transmission modules. As high-precision components, the tooth profile and assembly datums are strictly controlled to ensure smooth meshing and responsive power transmission. Dimensional tolerances can be tailored to specific operating conditions, making them an excellent choice for lightweight power transmission systems.

二、Key Specifications

Product Name: Straight-tooth transmission gear | Material: 6082 aluminum alloy | Surface Finish: Black anodizing | Features: Lightweight, low rotational inertia, high strength, wear and corrosion resistance, matte black appearance | Applications: Lightweight automation transmission mechanisms, testing instruments, compact power modules, non-heavy-duty transmission equipment

三、Manufacturing Process

The process begins with cutting 6082 aluminum bar stock, followed by rough turning of the gear blank's outer diameter, inner bore, and datum end face. Precision CNC turning is then employed for critical mating surfaces—such as the inner bore and datum end face—with strict control over coaxiality and roundness to produce high-standard CNC turned parts. After turning, gear hobbing forms the straight-tooth profile; assembly holes are machined and deburred, followed by black anodizing. Finished products undergo tooth profile accuracy testing and full-dimensional inspection to ensure consistent meshing performance and assembly interchangeability across the batch.

四、Company Profile

Dongguan Shengpeng Precision Technology Co., Ltd. operates as both a manufacturer and a trader, specializing in the OEM customization of aluminum alloy gear components across various grades. The factory is capable of mass-producing non-standard straight-tooth gears, offering customizable options for module, tooth profile, bore diameter, and surface treatment. Equipped with comprehensive CNC turning capabilities and supported by a mature surface treatment supply chain, the company handles orders ranging from small batches to large-scale production. Leveraging extensive experience in machining 6082 aluminum, flexible customization solutions, and a robust export delivery system, the company consistently provides global automation equipment clients with one-stop, customized precision mechanical component solutions.
