Portable Split Hydraulic Wire Rope Crimping Machine

3 day ago

0 0

NINGBO MARSHINE POWER TECHNOLOGY CO., LTD.

 10 year year

Product details

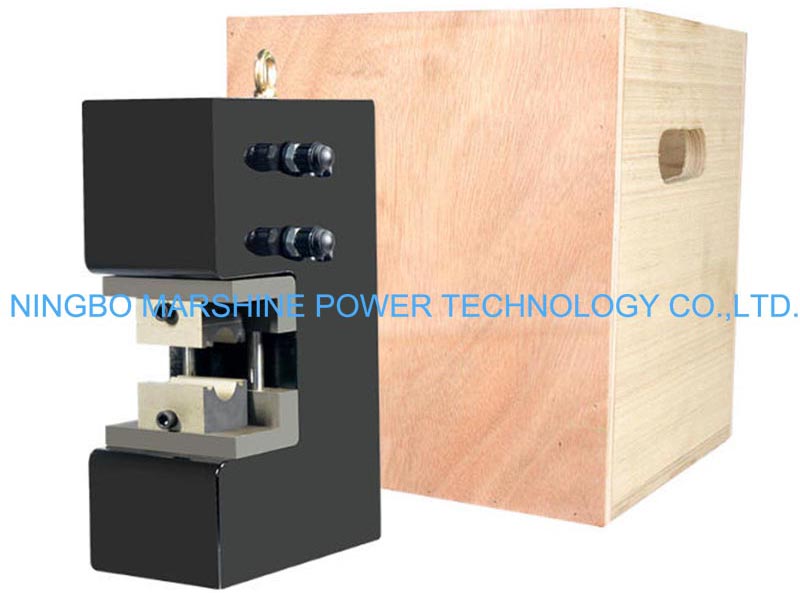

Hydraulic Wire Rope Swager

The MARSHINE Hydraulic Wire Rope Swager is a split frame type industrial press designed for safe aluminum sleeve swaging on steel wire rope, synthetic fiber rope and multi strand rigging lines in rigging shops, construction site. With heavy duty cast steel frame and quick change die cavities, this hydraulic wire rope press allows easy swapping of dies to accommodate different rope diameters without the need to make any tooling modification. Designed for oval and figure eight aluminum ferrules, this steel wire rope crimping tool provides tight burr free crimps that hold the rated breaking load during dynamic lifting stress. Equipped with high pressure quick coupler ports for connection of separate hydraulic pumps, the wire rope sleeve machinery can be configured to run with manual or electric pump power source, ideal for different production capacity requirements. With the cavity design, polished inner die’s are also effective at preventing material sticking and makes finished components pulling out easier and this wire rope pressing machine also saves cycle time for rope sleeve batch production.

The wire rope swaging machine provides maximum output pressing force of 60 ton and it is capable of processing rope outer diameter from 3mm to 12.5mm.

The main pressing head weighs 72 kg and operates at 63MPa standard pressure.

The MARSHINE Hydraulic Wire Rope Press takes matched dies for the oval and eight shape aluminum sleeves that are widely used for rigging slings.

Reinforced split frame design prevents frame racking even above rated pressing loads, so there is no permanent dimensional set in your frame after day in and day out use.

High tolerance ground die seats securely hold the molding dies and prevent offset pressing defects.

The open style frame allows an operator to feed in pre-assembled rope and sleeve read horizontally, eliminating the need to pull long rope ends through small openings.

Heavy duty painted finish retards rusting for long term storage in the shop.

This hydraulic wire rope press for developing sling terminals, industrial the sling terminal production the industrial sling termina production line up capable of complex sling terminal fabrication tasks for industrial sling sectors.

The wire rope swaging machine can make the rope loop connection which used widely on temporary rigging for the building site work.

The hydraulic wire rope press is tailored to small batch custom rigging work in small maintenance shops.

This MARSHINE Steel Wire Rope Press also plays part in processing fiber rope for onshore and steel wire for offshore slings and on site sling fabrication.

The wire rope sleeve machine can seal well, so the pressing result is very stable for urgent replacement sling making.

The wire rope pressing machine reduces defective sleeve rate and increases production in rigging manufacturers around the world.

Parameter

Model	M-6012C
Crimping Force	60 Tons
Crimping Range	Wire rope up to Φ12 mm
Net Weight	75 kg
Die Configuration	3-12 mm (choose one die size)
