Product details

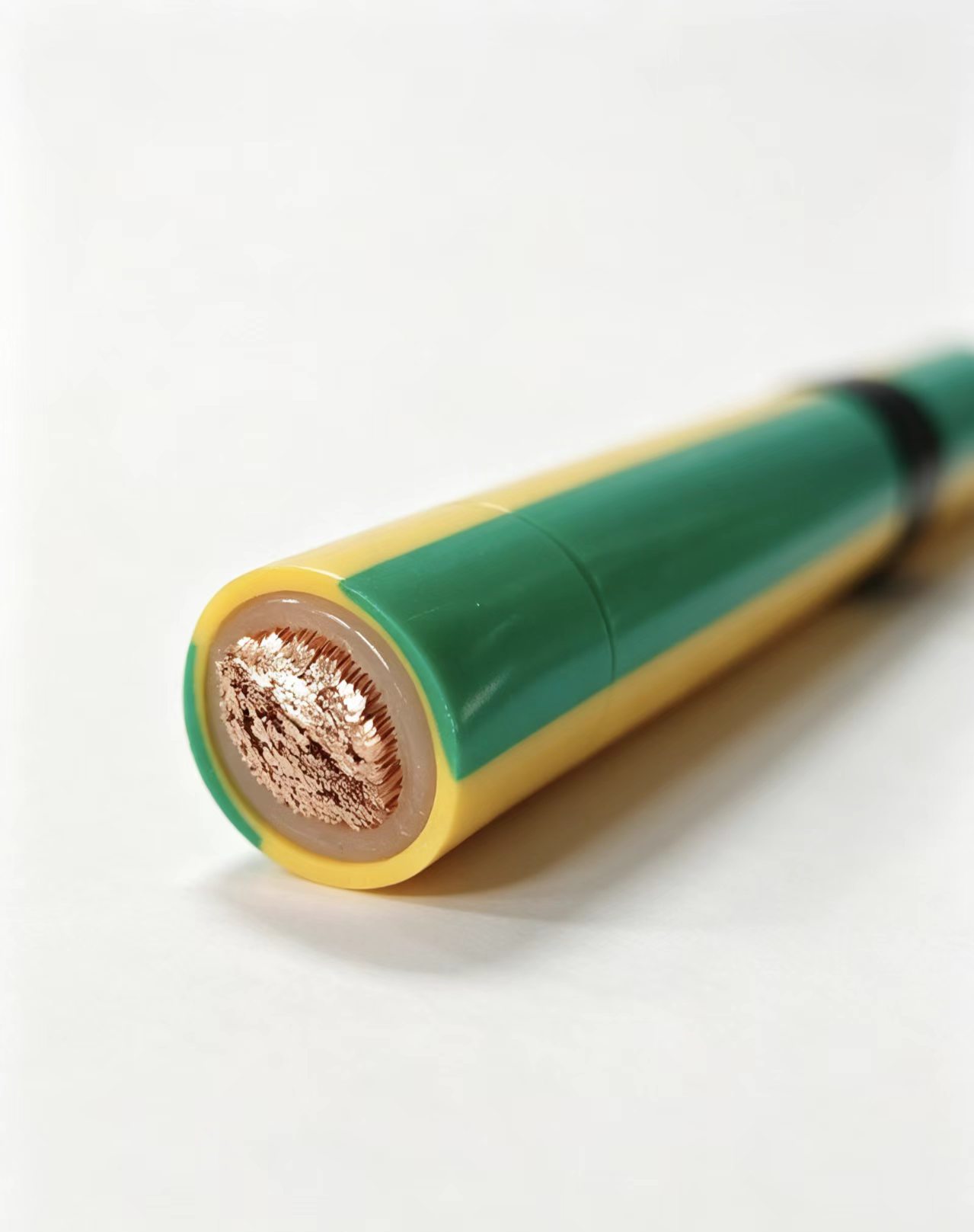

BS6491‑X Flexible Earth Wire Green‑Yellow, Transparent XLPE Insulation + PVC Sheath 450/750V

Meta Description：BS6491‑X flexible green‑yellow earth conductor features transparent XLPE inner insulation and PVC outer sheath, XLPE Power Cable,Class 5 stranded copper, rated 450/750V for UK building earthing installations.

Product Description

BS6491‑X is a dedicated flexible single‑core protective‑earth wire manufactured to BS7211 British standard for UK construction market.

Distinct from ordinary single‑core building wires, this earth wire adopts a unique double‑layer construction. The fine‑stranded copper conductor is wrapped first by a layer of transparent XLPE inner insulation, Flexible Cable Wire,then an extruded green‑yellow bi‑colour PVC outer sheath is applied for mechanical protection and mandatory PE colour identification.

Class‑5 annealed bare copper conductor delivers outstanding flexibility, which makes on‑site bending and conduit routing much easier. The inner transparent XLPE insulation provides excellent dielectric property and thermal performance with 90 °C maximum continuous working temperature. The outer green‑yellow PVC sheath protects the XLPE core against abrasion, minor mechanical damage during installation.

This green‑yellow earthing wire is widely specified as protective PE earthing conductor for domestic housing, commercial offices and public building wiring systems in United Kingdom projects.

Key Specifications

- Model: BS6491‑X

- Standard: BS 7211

- Rated Voltage: 450 / 750 V

- Conductor: IEC 60228 Class 5 flexible annealed bare copper

- Inner Insulation: Transparent XLPE (Cross‑Linked Polyethylene)

- Outer Sheath: Green‑Yellow bi‑colour PVC

- Max continuous working temperature: 90 °C

- Shape: Round single‑core

Product Features

✅ Two‑layer cable construction: transparent XLPE inner insulation + green‑yellow PVC outer sheath

✅ Class‑5 soft stranded copper for good flexibility for conduit wiring

✅ 90℃ heat‑resistant XLPE insulation for stable electrical performance

✅ Green‑yellow outer sheath strictly follows British wiring colour requirement for PE earth

✅ Manufactured according to BS7211 specification for UK building installation

Applications

Used as protective PE earthing wire in residential homes, commercial premises, public facilities, distribution cabinets and building wiring systems for UK construction projects, suitable for laying inside conduits and trunking.
