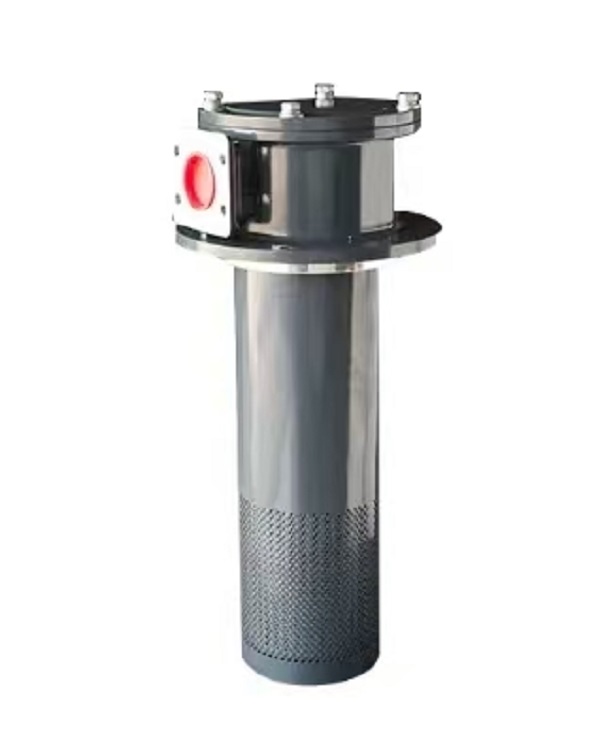

WY Series Magnetic Return Filter

Product Overview

WY Series Magnetic Return Filter is a key FILTER mounted on the top of hydraulic oil tank. It is used to filter return oil in the hydraulic system. Combining permanent magnet and filter cartridge, this FILTER can capture ferrous metal particles and solid pollutants produced by component friction. It protects the hydraulic system and reduces wear of hydraulic parts, commonly fitted on construction Machine, mining Machine and industrial hydraulic equipment.

Technical Specifications

- Rated flow: 10 ~ 800 L/min

- Max working pressure: 1.6 MPa

- Filtration accuracy: 3μm, 5μm, 10μm, 20μm, 30μm optional

- Bypass valve opening pressure: 0.35MPa

- Medium: mineral hydraulic oil, water glycol

- Working temperature: -10℃ ~ +100℃

- Installation: tank top mounting

Working Principle

Oil returns to the tank and passes through this FILTER. The built-in magnet adsorbs tiny iron debris first, then the filter element blocks other solid contaminants. When the FILTER is clogged, the built-in bypass valve opens automatically, ensuring the hydraulic system keeps running and preventing sudden stop of the Machine.

Core Advantages

1. Dual filtration: magnetic adsorption + filter element interception, highly efficient purification for hydraulic system.

2. Tank mounted compact structure, easy installation and save space.

3. Built-in bypass valve to protect the Machine against filter blockage risk.

4. Large dirt holding capacity, low pressure drop, long service life.

5. Simple element replacement, convenient maintenance for the hydraulic system.

Application

This FILTER is widely applied in different kinds of Machine, such as construction machinery, agricultural machines, metallurgical and mining equipment, hydraulic power stations. It maintains oil cleanliness and extends service life of all components in hydraulic system.
