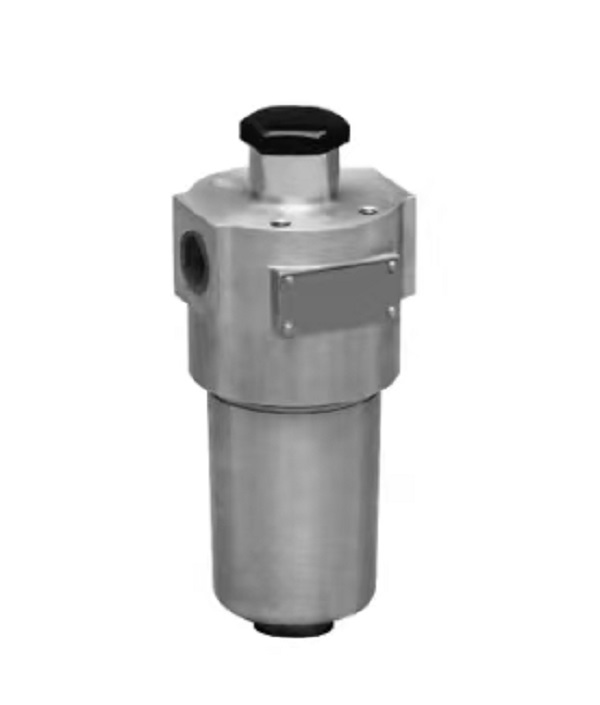

CJS-4 Magnetic Line Filter

Product Overview

CJS-4 Magnetic Line Filter is a high-performance inline FILTER for hydraulic system. It is installed directly on the pipeline of hydraulic circuit to continuously capture ferrous metal particles generated by component wear. This FILTER can be matched with various industrial Machine, effectively removing iron debris before the pollutants circulate and damage precision parts inside the hydraulic system.

Technical Specifications

- Rated flow: 10~100 L/min

- Working pressure: ≤31.5 MPa

- Filtration: permanent magnet adsorption for fine iron particles

- Working medium: mineral hydraulic oil, water-glycol

- Working temperature: -10℃ ~ +80℃

- Installation: pipeline inline mounting

Working Principle

When hydraulic oil flows through the pipeline and passes this FILTER, the built-in strong permanent magnet attracts and traps iron wear particles suspended in the oil. Metal impurities are intercepted and will not continue to circulate in the hydraulic system. It reduces abrasive wear of hydraulic components and protects the whole Machine. The magnetic core can be taken out for cleaning repeatedly.

Core Advantages

1. Inline installation, compact structure, easy to integrate into the hydraulic system.

2. Strong magnetic adsorption, efficiently capture tiny iron particles, extend service life of other FILTER elements.

3. Reusable magnetic cartridge, low operating cost for your Machine.

4. High pressure resistance, suitable for high-pressure hydraulic pipeline.

5. Simple disassembly and cleaning, convenient routine maintenance of hydraulic system.

Application Range

This FILTER is widely used in different kinds of Machine, including construction machinery, machine tools, metallurgical equipment, injection molding machines and hydraulic power packs. It improves oil cleanliness and protects pumps, valves and cylinders in hydraulic system.
