Huizhou Antenk Electronics Co., Ltd. produces ATKOBD 16P‑11 automotive OBD connectors to establish stable signal transmission between vehicle control units and external diagnostic devices. This 16 pin OBD connector follows defined dimensional tolerance standards for different size ranges to guarantee high assembly consistency during vehicle installation. Users mount the connector onto vehicle circuit assemblies and match it with corresponding diagnostic plugs for data reading and fault detection. Operators should strictly follow dimensional tolerance requirements during processing and assembly and store finished goods in dry conditions to avoid metal contact corrosion. Unlike competitors that outsource key manufacturing processes Antenk completes full in house production including independent mold development terminal stamping plastic injection molding plating and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications, more than seventy percent of our connector goods are exported across global markets. Please provide your project requirements for free sample evaluation and complete technical specification resources.

1. Precision OBD Socket maintains strict dimensional tolerances to deliver reliable connection performance for automotive diagnostic systems.

2. Vehicle Diagnostic Connector builds stable data communication links between onboard vehicle modules and external testing equipment.

3. Standard OBD Plug fits matching automotive sockets to support efficient vehicle fault reading and real time data acquisition.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 16 pin automotive OBD connector

1.2 Measurement unit: millimeter

1.3 Key dimension tolerance: Dimensional tolerances follow specified ranges. 0‑3 mm tolerance 0.20 mm, 3‑6 mm tolerance 0.24 mm, 6‑10 mm tolerance 0.28 mm, 10‑14 mm tolerance 0.32 mm, 14‑18 mm tolerance 0.38 mm, 18‑24 mm tolerance 0.44 mm, 24‑30 mm tolerance 0.50 mm, 30‑40 mm tolerance 0.56 mm. Refer to official engineering drawing for full dimension information.

1.4 CTA: Contact our engineering team to obtain complete dimension drawings for your hardware design validation.

2. Material Construction

2.1 Note: Complete material composition is shown in full official drawing documents. Please refer to released technical files for housing and terminal material parameters.

3. Electrical & Performance Parameters

3.1 Note: Full electrical performance data is recorded in official datasheet. Request technical documents for rating current voltage and resistance parameters.

4. Usage Method

4.1 Assembly mode: Install within automotive electronic assemblies and mate with compatible diagnostic connectors

4.2 Operation tip: Match corresponding mating parts according to actual vehicle project requirements

5. Application Scenarios

5.1 Automotive onboard diagnostic systems

5.2 Vehicle electronic control unit connection assemblies

5.3 Automobile fault detection equipment peripherals

6. Operation & Storage Precautions

6.1 Strictly implement drawing tolerance standards for mechanical processing and housing fitting design

6.2 Avoid violent insertion and extraction to prevent physical deformation of connector structure

6.3 Store products in dry environment to prevent oxidation of metal contact parts

6.4 Confirm pin count and dimensional specifications before mechanical design

6.5 CTA: Submit your vehicle project and assembly requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

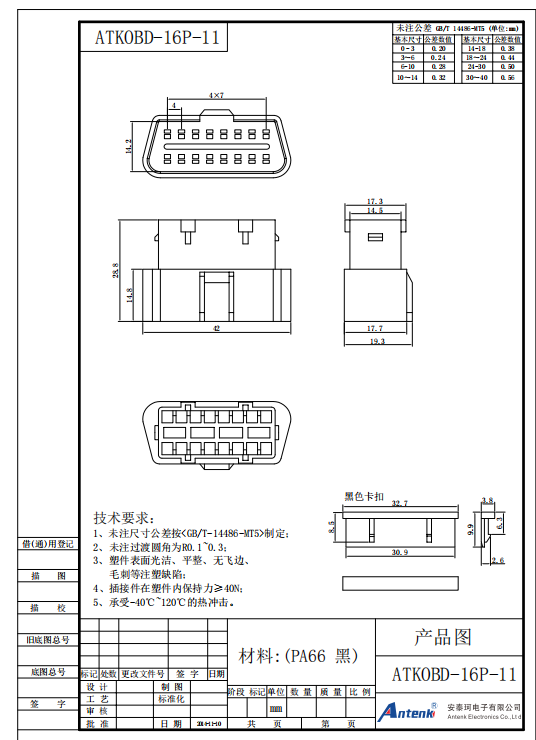

Product Drawing：
