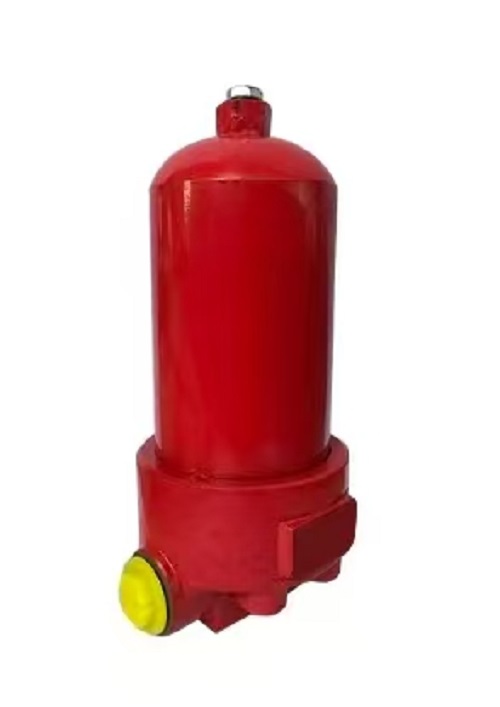

ZU-A QU-A WU-A Return Line Filter

Product Overview

ZU-A QU-A WU-A Return Line Filter is a common FILTER mounted on the hydraulic tank, designed to purify return oil in the hydraulic system. This FILTER traps solid particles and wear debris in return hydraulic oil before oil flows back into the tank. It effectively protects precision hydraulic components and ensures stable running of the Machine. It is widely fitted on construction Machine, machine tools, hydraulic power units and other industrial equipment.

Technical Specifications

- Rated flow: 10 ~ 500 L/min

- Max working pressure: 1.6 MPa

- Filtration accuracy: 5μm, 10μm, 20μm, 30μm optional

- Bypass valve opening pressure: 0.35 MPa

- Working medium: mineral hydraulic oil

- Working temperature: -10℃ ~ +80℃

- Installation: tank top return mounting

Working Principle

Contaminated hydraulic oil flows back from the circuit and passes through this FILTER. The filter element intercepts solid pollutants. When the FILTER is clogged, the built-in bypass valve opens automatically to maintain normal circulation of the hydraulic system and avoid sudden stop of the Machine.

Core Advantages

1. Reliable filtration performance to keep oil clean for the hydraulic system.

2. Simple tank-mounted structure, easy installation and replacement.

3. Built-in bypass valve protects the Machine when FILTER is blocked.

4. Low pressure drop, large dirt holding capacity, stable performance.

5. Cost-effective, convenient routine maintenance of hydraulic system.

Application Range

This FILTER is applicable to many types of Machine, including engineering machinery, metallurgical equipment, injection molding machines and hydraulic stations. It reduces component wear and extends service life of pumps, valves and cylinders in the hydraulic system.
