Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures 2.0mm pitch dual row SMT side insert type female headers to establish reliable power and signal interconnection between printed circuit boards and matching male connectors. This side insert female header supports pin counts ranging from 2 to 40 positions with different tolerance values corresponding to various pin quantity ranges, features dual row layout and side insertion surface mount structure to save valuable board space for compact electronic designs. It is widely adopted in digital home appliances industrial control equipment consumer electronics and communication devices. Users complete SMT reflow soldering onto target PCB boards and insert the mating male header from side direction to finish stable connection. Operators should adhere to PCB layout tolerance specifications during design avoid excessive insertion force to prevent terminal damage and keep finished goods under dry storage to protect metal contacts from oxidation. Unlike competitors that outsource key production procedures Antenk implements full in house manufacturing including independent mold development terminal stamping plastic injection molding plating and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent of our connector products are exported globally. Please send your pin count and project details for free sample evaluation and complete technical datasheet support.

1. Side Mount Female Header enables lateral plug in connection to help optimize limited space on compact printed circuit boards.

2. 2.0mm Pitch Board Header delivers consistent electrical performance for dual row interconnection among various electronic modules.

3. Angle SMT Header provides space saving side insertion assembly for high volume surface mount PCB production processes.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: Dual row SMT side insert type female header

1.2 Measurement unit: millimeter

1.3 Key feature: 2.0 mm contact pitch, side insertion mounting style, 4.9 mm overall height

1.4 Pin range: Available from 2 pins to 40 pins. Dimension tolerance M varies as 0.10 for 2‑15P, 0.15 for 16‑25P, 0.18 for 26‑40P

1.5 Assembly method: Surface mount soldering for PCB reflow process

1.6 CTA: Contact our engineering team to acquire full dimension drawings and PCB land pattern files for your hardware design validation.

2. Material Construction

2.1 Note: Complete housing terminal and plating specifications are shown in the official product datasheet. Please refer to released technical documents for accurate material grade details.

3. Electrical & Performance Parameters

3.1 Note: Rated voltage current and contact resistance parameters are recorded in the full datasheet. Request technical files to obtain complete electrical performance data.

4. Usage Method

4.1 Assembly mode: Mount on printed circuit board by standard reflow soldering

4.2 Operation tip: Insert mating male header from side direction and ensure full engagement to achieve stable electrical connection

5. Application Scenarios

5.1 Digital household appliance internal interconnection

5.2 Industrial control equipment module connection

5.3 Communication device signal and power transmission

5.4 Compact consumer electronic product assemblies

6. Operation & Storage Precautions

6.1 Follow tolerance values for different pin counts strictly during PCB layout and mechanical design

6.2 Do not apply excessive insertion force to prevent terminal bending or plastic housing damage

6.3 Store products in dry surroundings to avoid oxidation of metal contact surfaces

6.4 Observe recommended reflow temperature profile to prevent thermal damage of plastic parts during soldering

6.5 Confirm pitch mounting style pin quantity and corresponding tolerance before circuit and mechanical design

6.6 CTA: Submit your required pin number and project application requirements, we can provide free sample evaluation and professional technical consultation.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

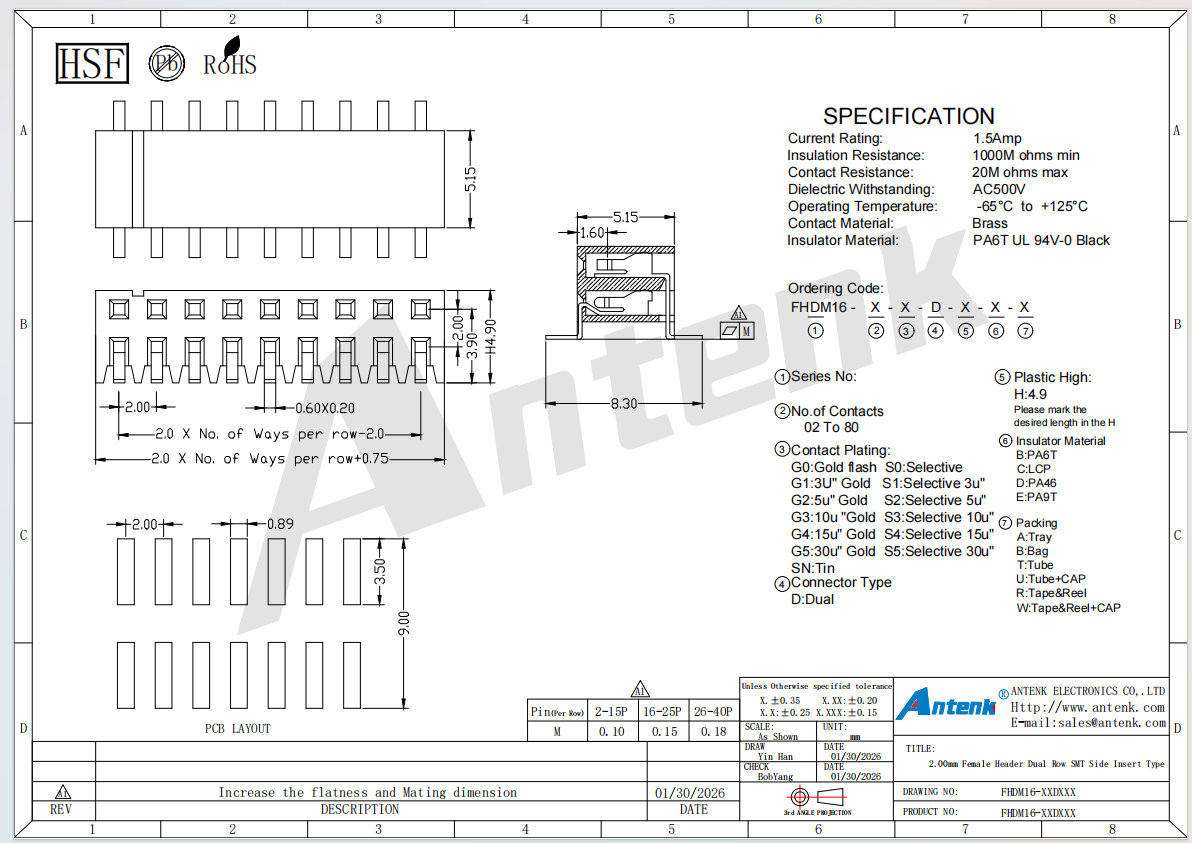

Product Drawing;

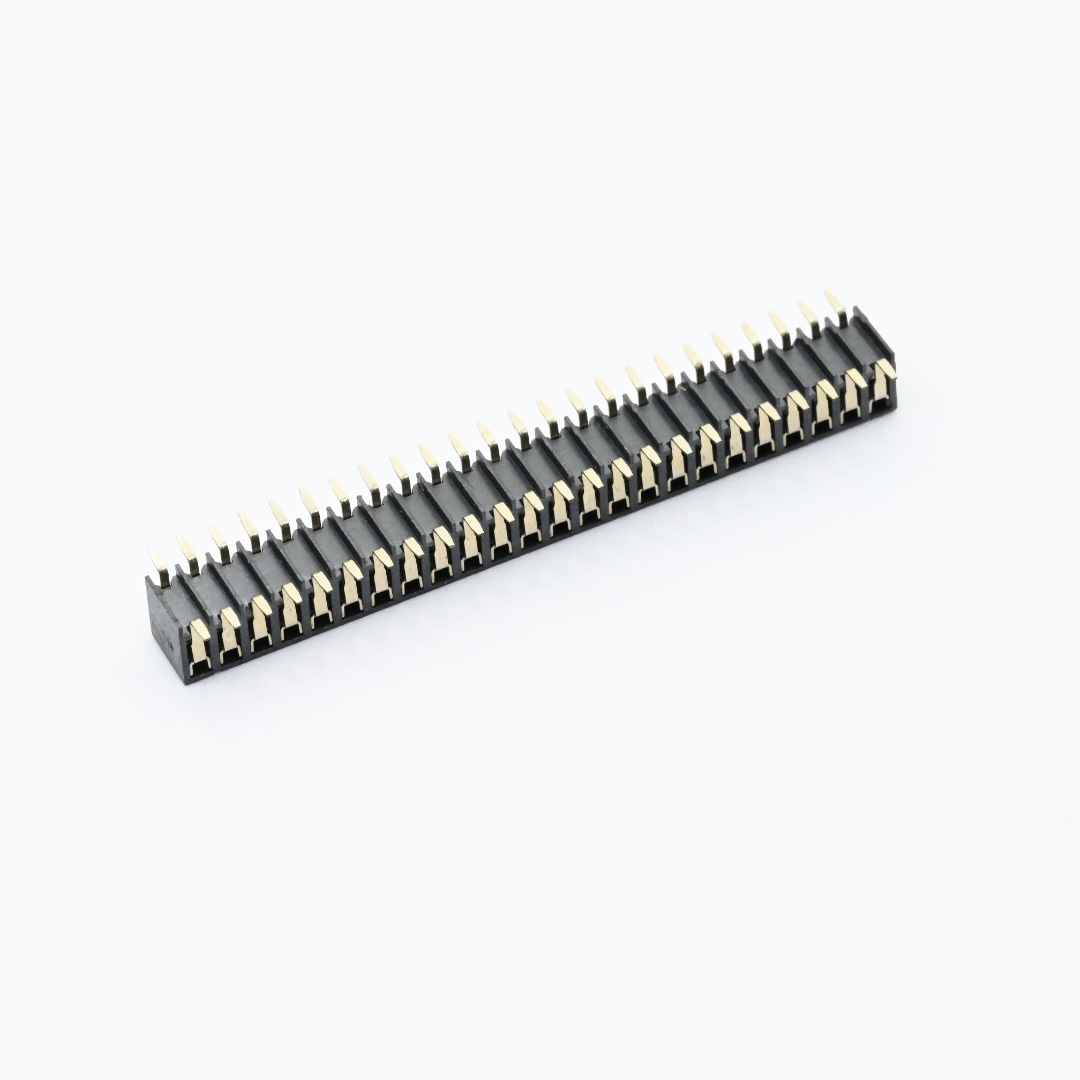

FHDM16-XXDXXX+2.00mm Female Header Dual Row SMT Side Insert Type（5）

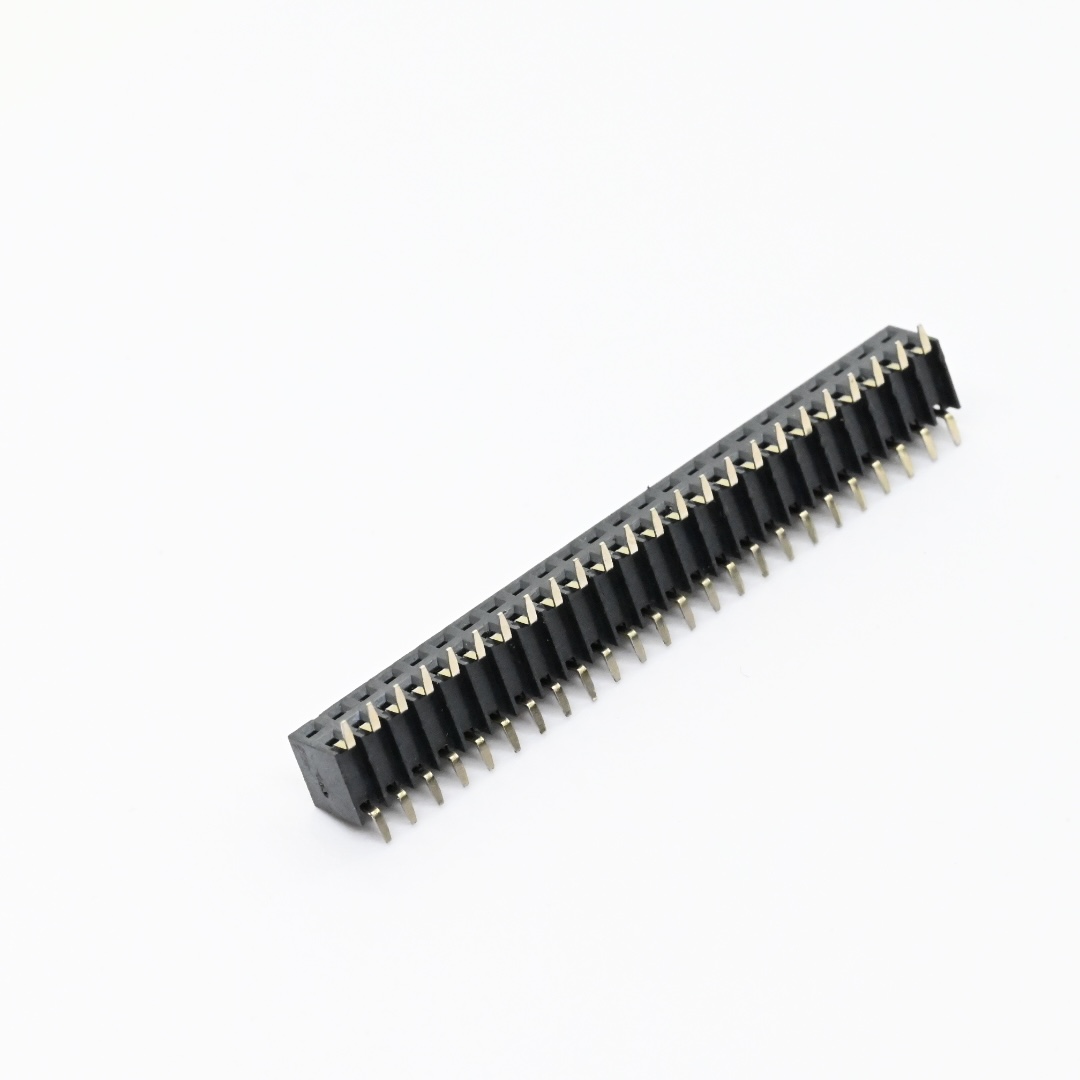

FHDM16-XXDXXX+2.00mm Female Header Dual Row SMT Side Insert Type（6）

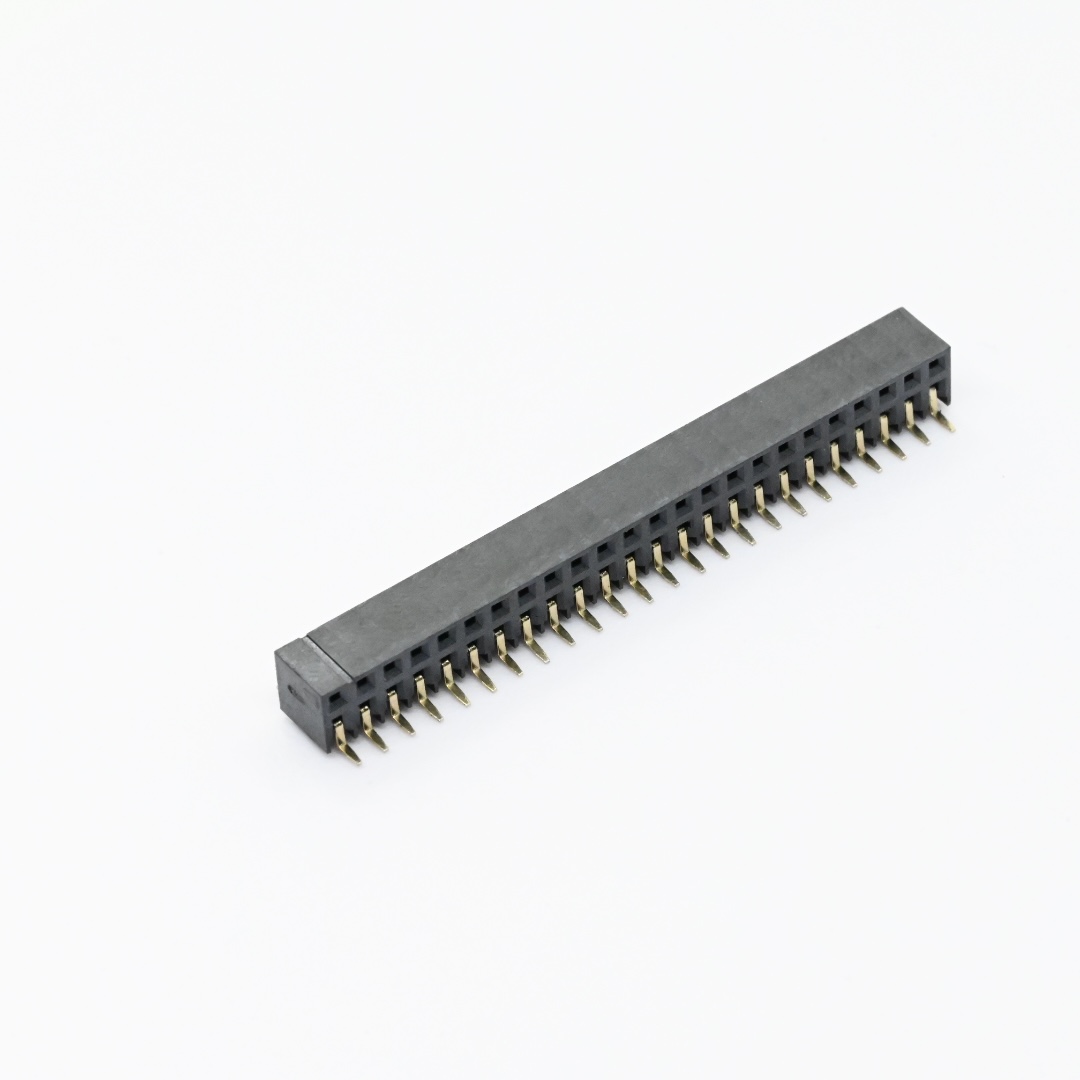

FHDM16-XXDXXX+2.00mm Female Header Dual Row SMT Side Insert Type（2）

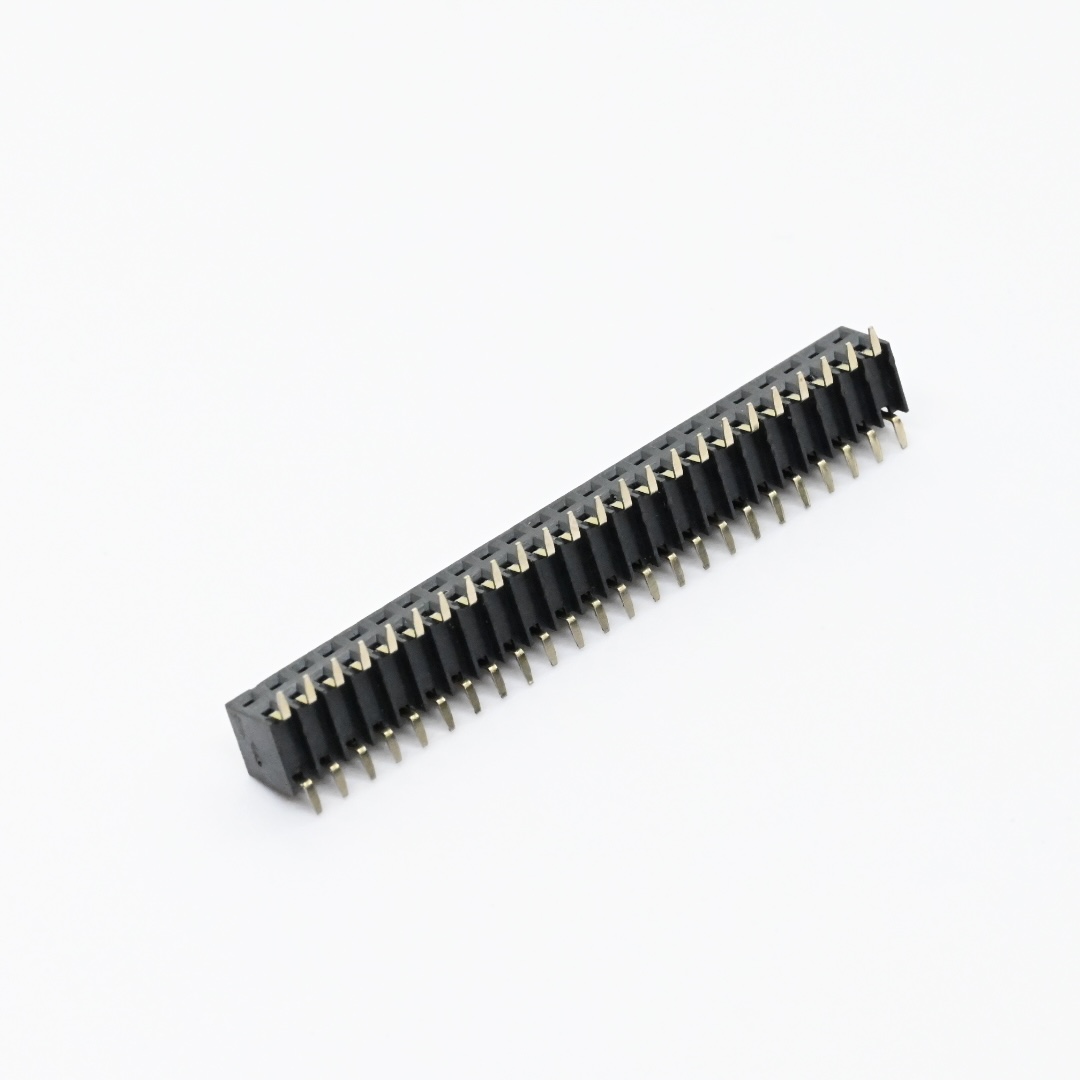

FHDM16-XXDXXX+2.00mm Female Header Dual Row SMT Side Insert Type（4）

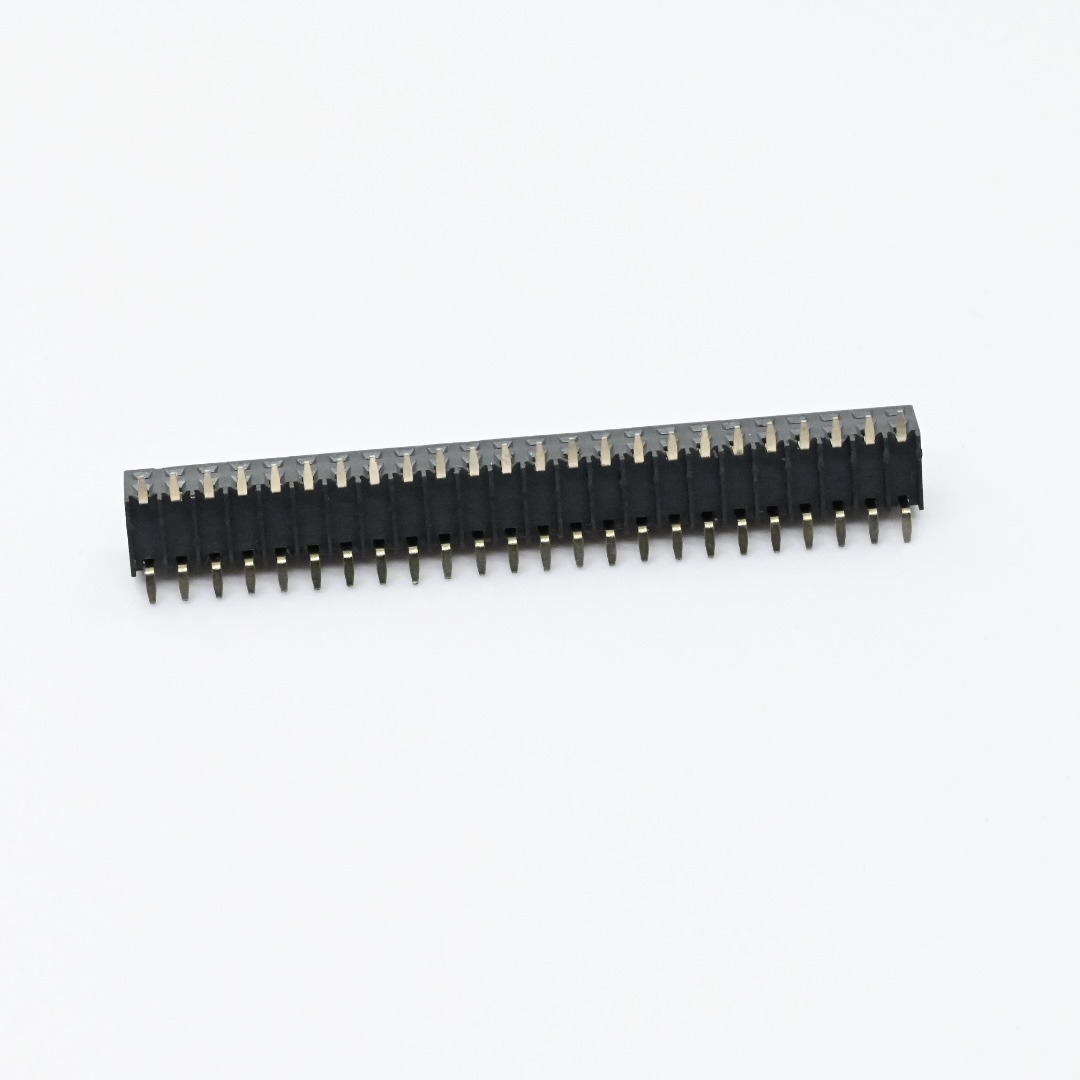

FHDM16-XXDXXX+2.00mm Female Header Dual Row SMT Side Insert Type（3）

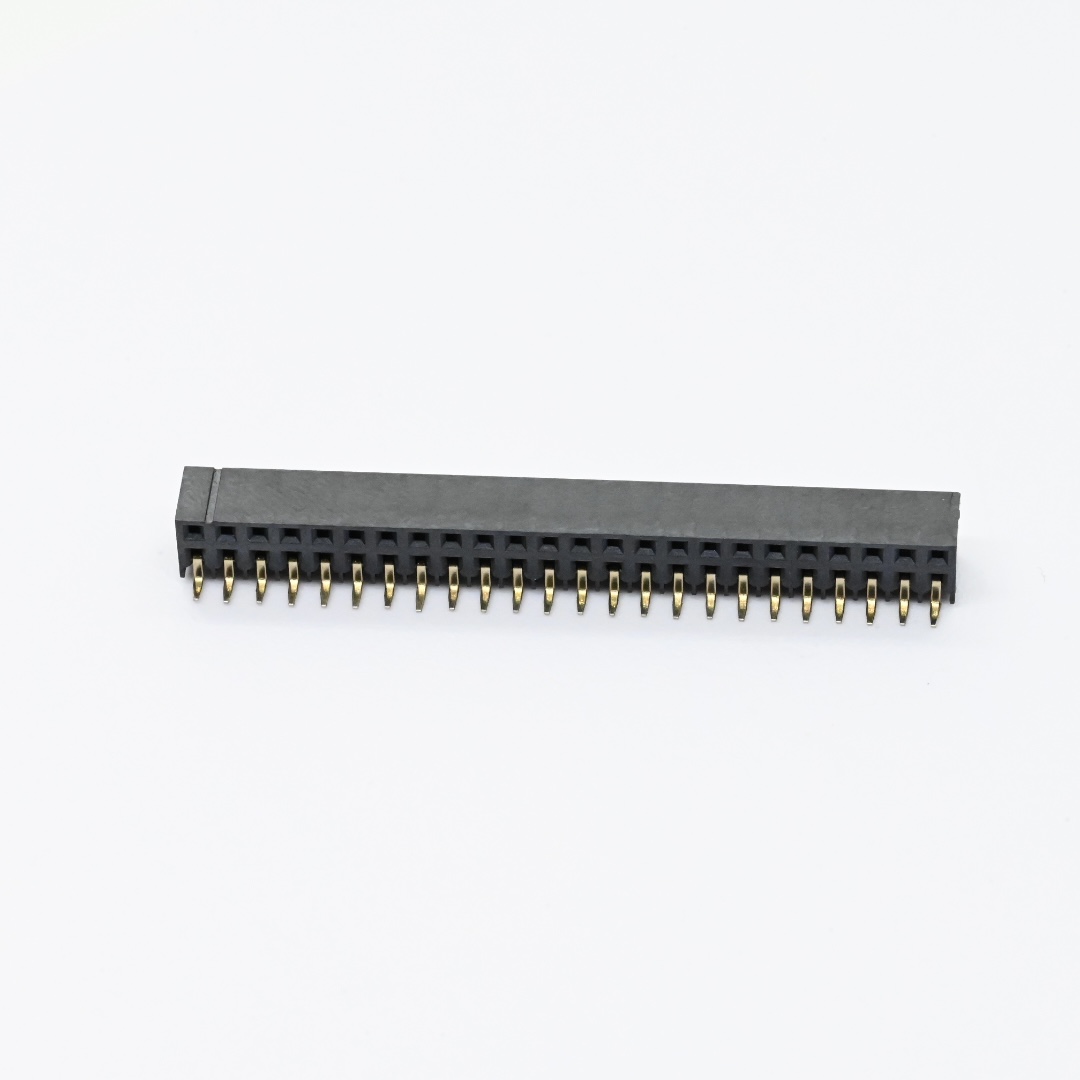

FHDM16-XXDXXX+2.00mm Female Header Dual Row SMT Side Insert Type（1）
