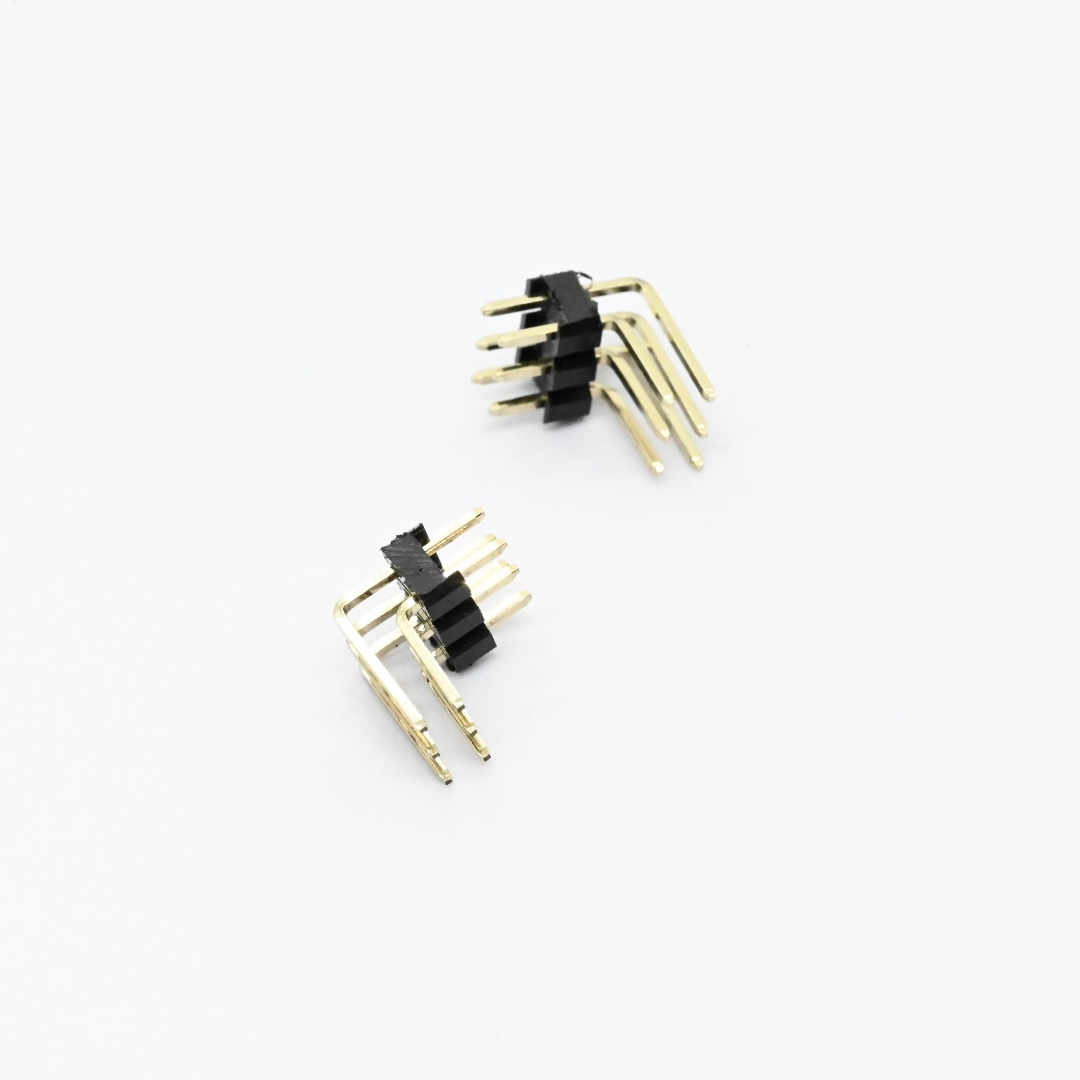

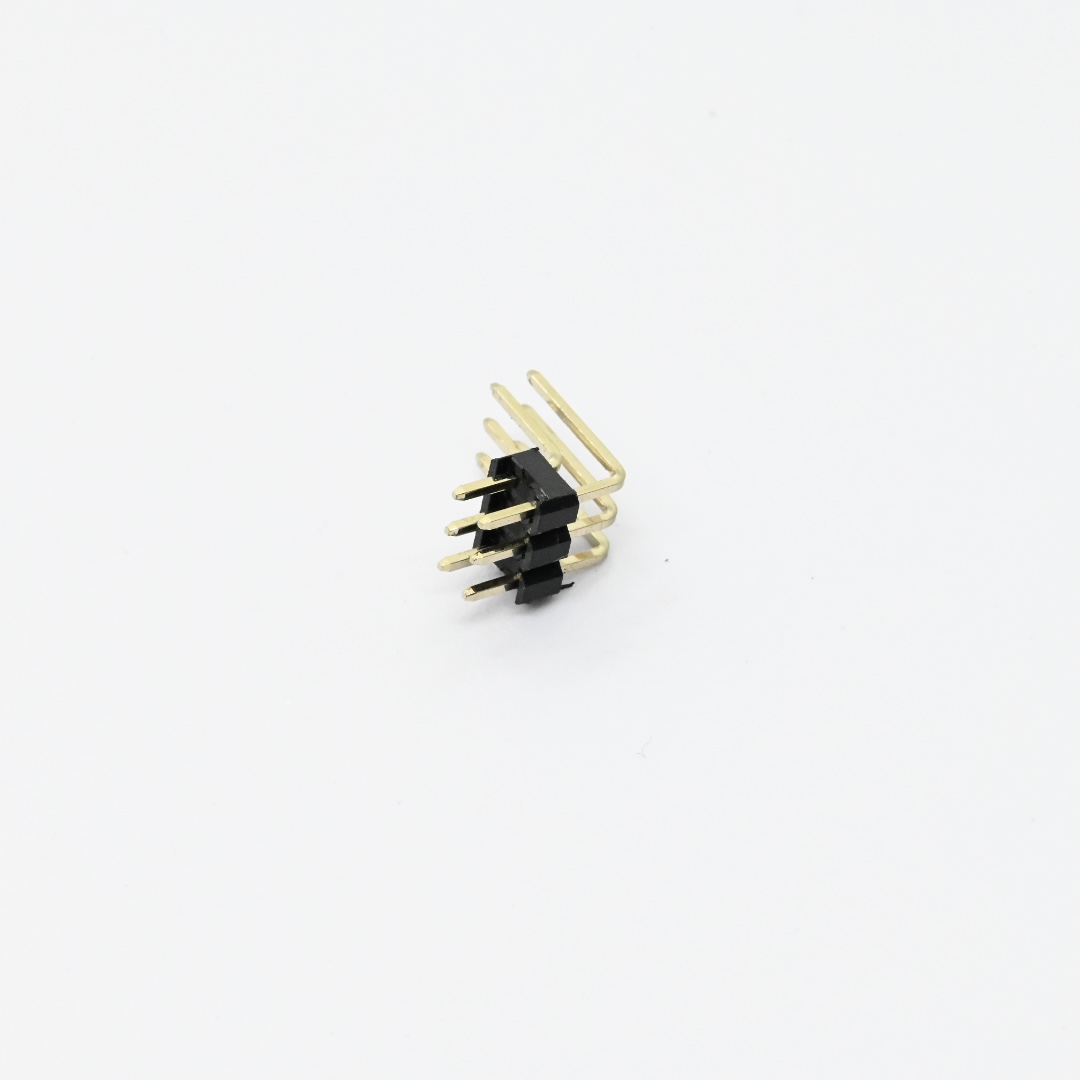

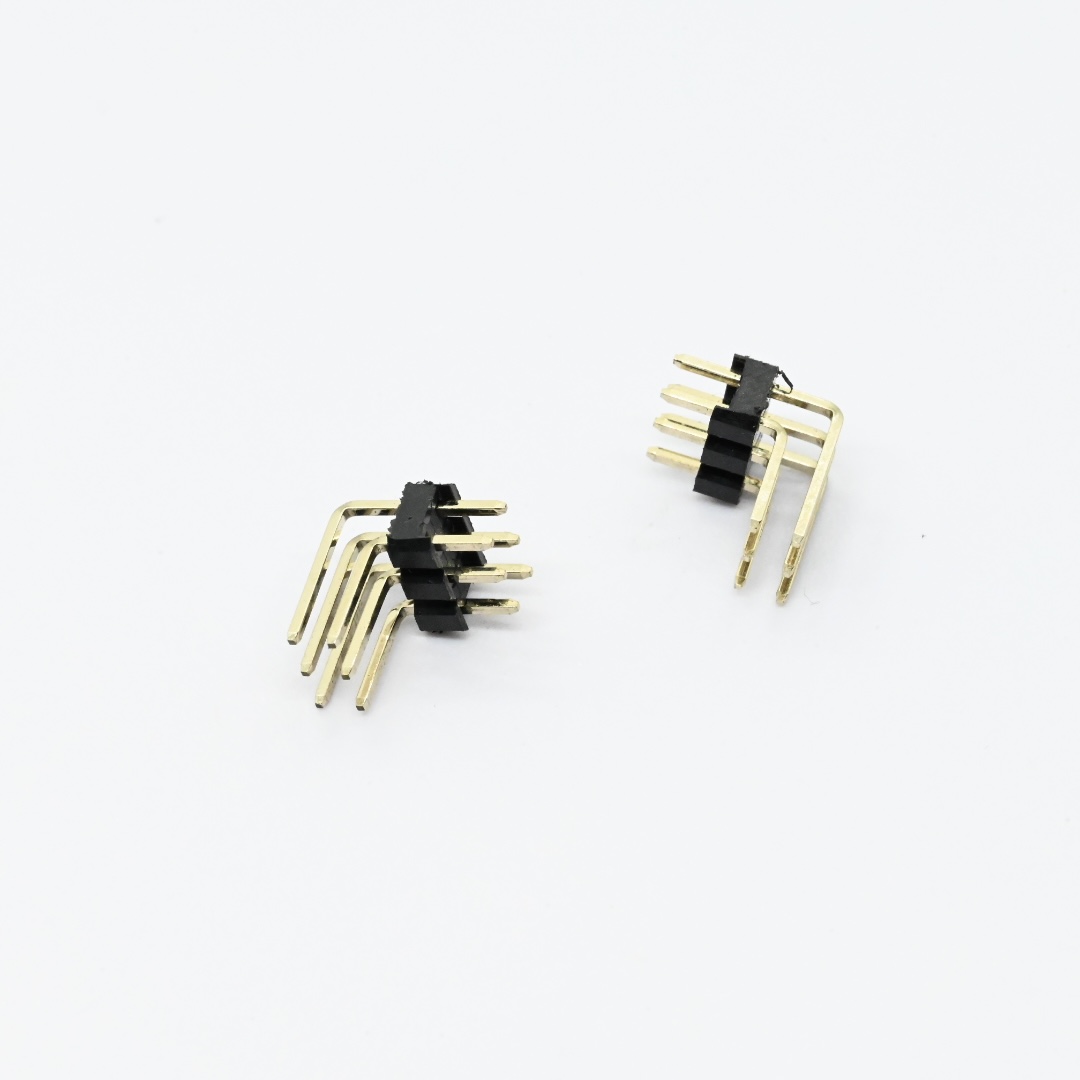

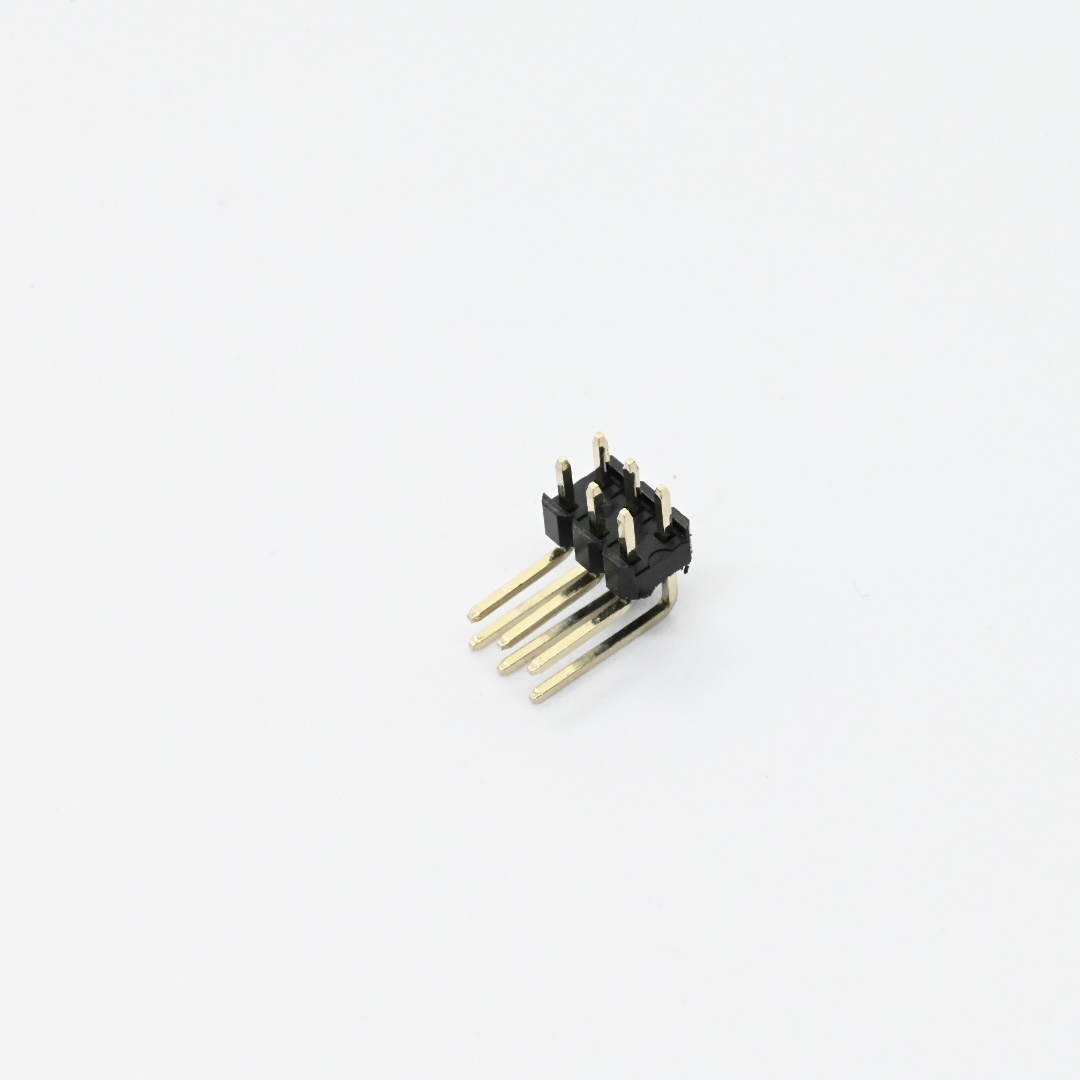

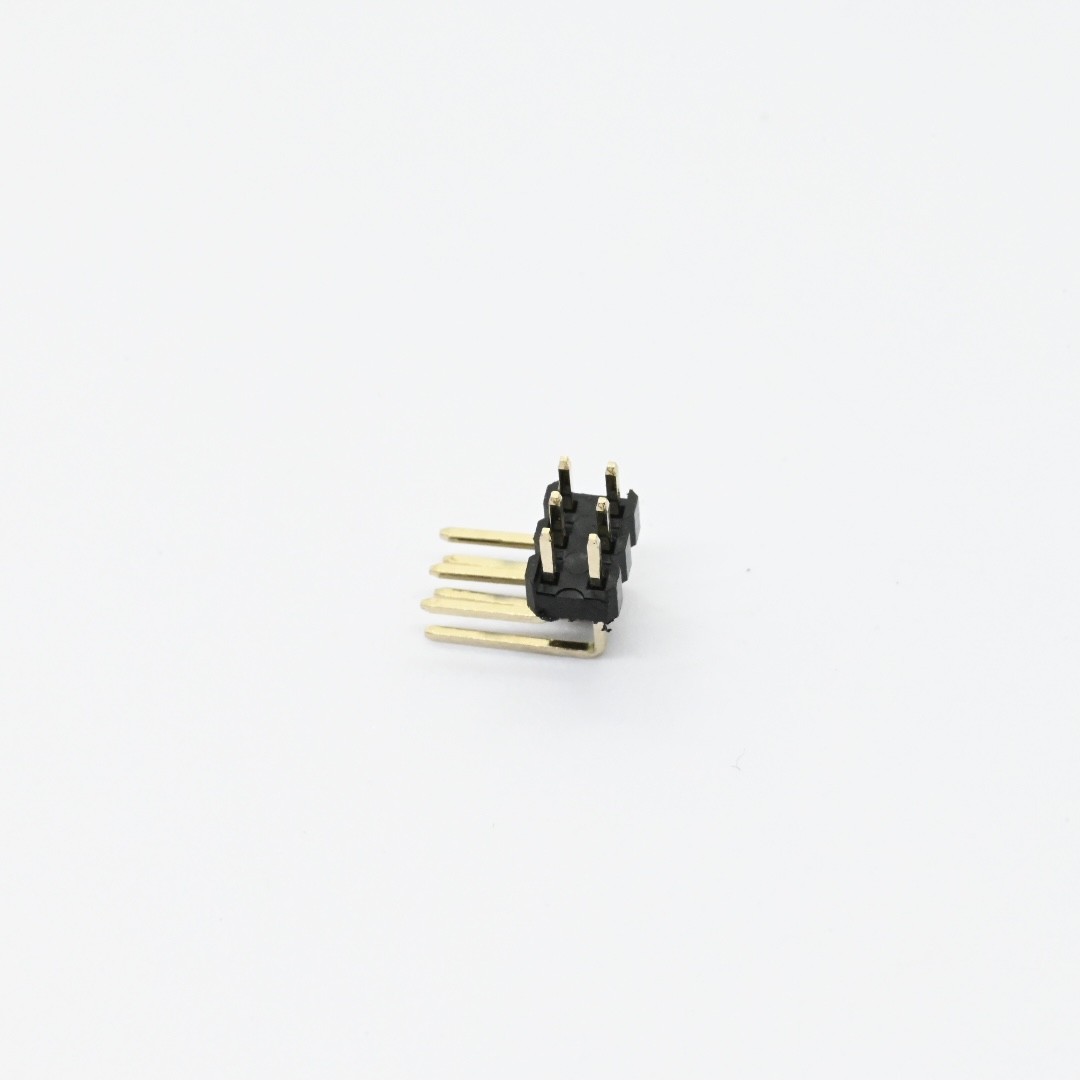

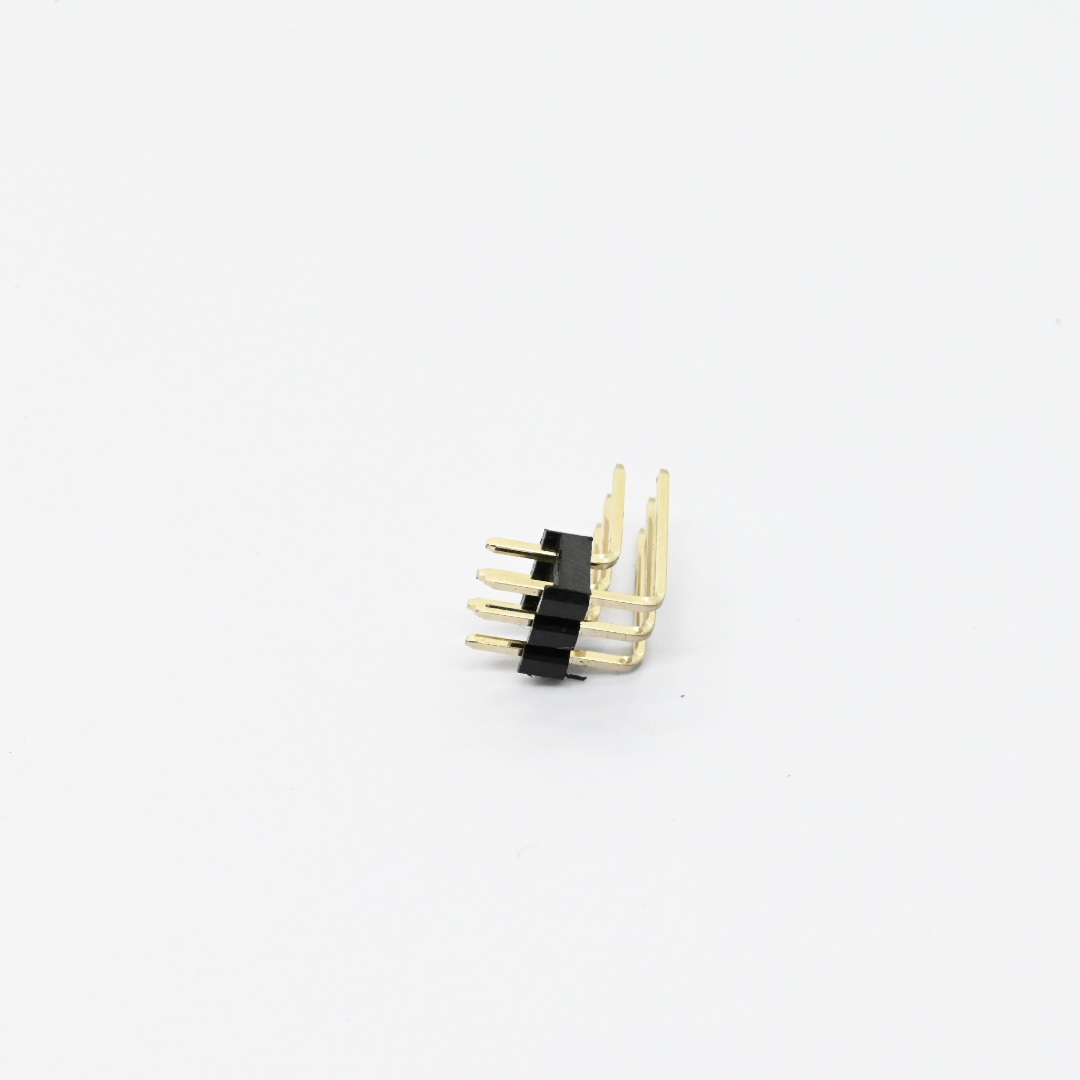

Huizhou Antenk Electronics Co., Ltd. manufactures 2.54mm pitch dual row angle reverse type pin headers to deliver stable power and signal transmission between printed circuit boards and matching female connectors. This male pin header supports contact positions ranging from 2 to 80 contacts, offers multiple insulator material choices and diversified plating options including tin gold flash and selective gold plating, holds 3 amp current rating and AC500V dielectric withstanding performance for reliable circuit connection. It fits digital household appliances industrial control modules communication hardware and precision instrument equipment. Users complete through hole soldering onto target PCB boards and lock with matched female connectors for steady electrical contact. Operators shall comply with PCB hole layout requirements avoid excessive mating force to prevent terminal deformation and store goods under dry condition against metal contact oxidation. Unlike competitors outsourcing key manufacturing steps Antenk runs full in house production covering independent mold development terminal stamping plastic injection molding plating and comprehensive laboratory performance verification. Our factory carries ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent of connector goods are exported worldwide. Please share your contact quantity plating requirement and project information for free sample evaluation and complete technical datasheet support.
1. Reverse Bend Pin Header adopts reverse angle structure to satisfy special spatial layout demands on printed circuit boards.
2. Dual Row Through Header realizes firm mechanical fixing and electrical conduction by through hole soldering on PCB substrates.
3. Custom Plated Pin Header provides multiple surface finishing selections to adapt different environmental and conductivity application needs.
Detailed Specifications of 2.54 mm Pin Header Dual Row Angle Reverse Type
1. Mechanical Specifications
1.1 Product type: Dual row reverse angle through hole pin header
1.2 Measurement unit: millimeter
1.3 Key feature: 2.54 mm contact pitch, square pin size 0.64 mm, pin length optional for 3.00 mm or 6.00 mm, multiple plastic height options H1 1.70mm H2 2.54mm H3 2.00mm H4 1.50mm
1.4 Pin range: Available from 2 contacts up to 80 contacts
1.5 Assembly method: Through hole soldering for printed circuit board mounting
1.6 CTA: Contact our engineering team to obtain complete dimension drawings and recommended PCB hole layout files for your hardware design validation.
2. Material Construction
2.1 Contact material: Copper alloy
2.2 Insulator material: Polyester UL94V‑0, optional grades include PBT PA6T LCP PA46 PA9T
2.3 Contact finish: Tin plating, gold flash, selective gold plating with multiple gold thickness options
2.4 Compliance: RoHS and HSF compliant
3. Electrical & Performance Parameters
3.1 Current rating: 3 Amp
3.2 Insulation resistance: minimum 5000M ohms
3.3 Dielectric withstanding voltage: AC500V
3.4 Operating temperature range:‑40°C to +105°C
4. Usage Method
4.1 Assembly mode: Install into PCB and complete standard through hole soldering process
4.2 Operation tip: Fully engage with matching female header to achieve stable mechanical lock and electrical conduction
5. Application Scenarios
5.1 Digital household appliance internal circuit interconnection
5.2 Industrial control module signal and power connection
5.3 Communication equipment circuit assembly
5.4 Precision instrument and consumer electronic device assemblies
6. Operation & Storage Precautions
6.1 Strictly follow official recommended PCB hole layout during circuit board design
6.2 Do not apply excessive mating force to avoid terminal bending or insulator cracking
6.3 Keep products in dry storage environment to prevent oxidation of contact surfaces
6.4 Control soldering temperature and duration to avoid thermal damage to plastic housing
6.5 Confirm contact count pin length insulator material and plating specification before project design
6.6 CTA: Submit your required contact number plating and material requirements, we offer free sample evaluation and professional technical consultation services.
FAQ
Q: How many packaging do you have?
A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.
Q: Can you do our own packaging?
A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.
Q: How many different types of products your company manufactures?
A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

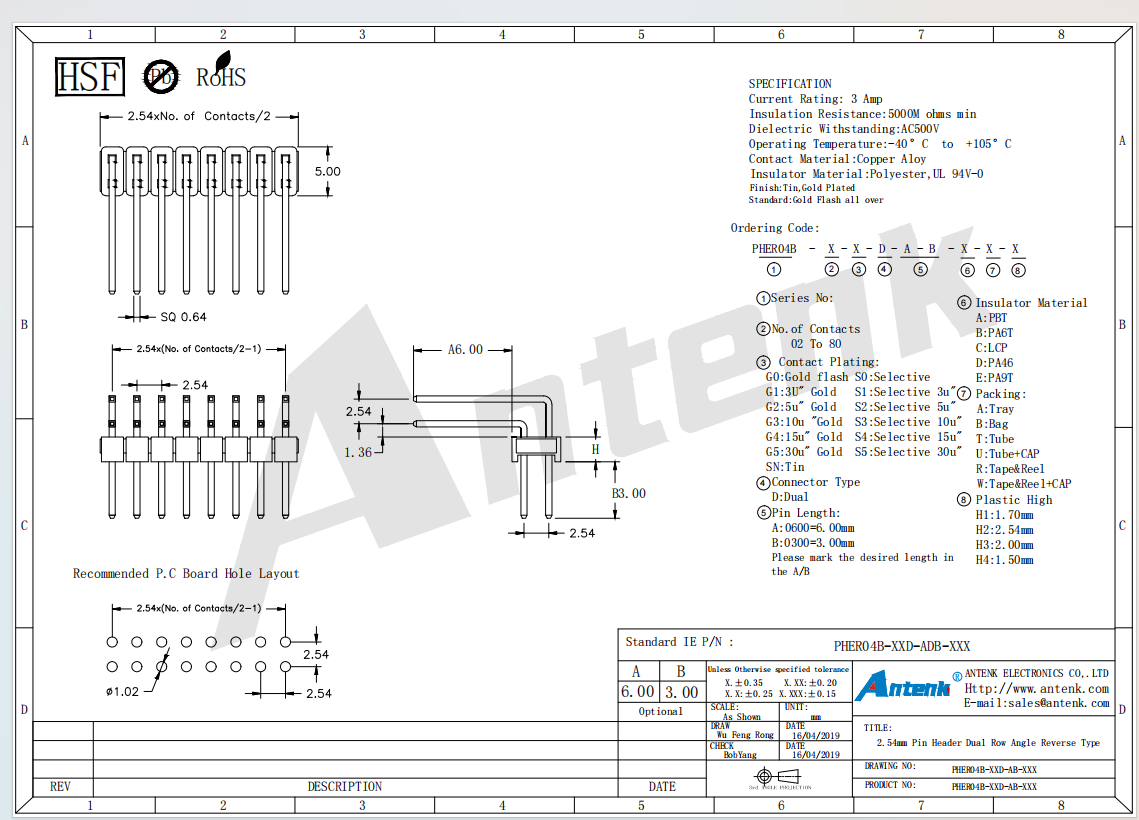

Product Drawing:
