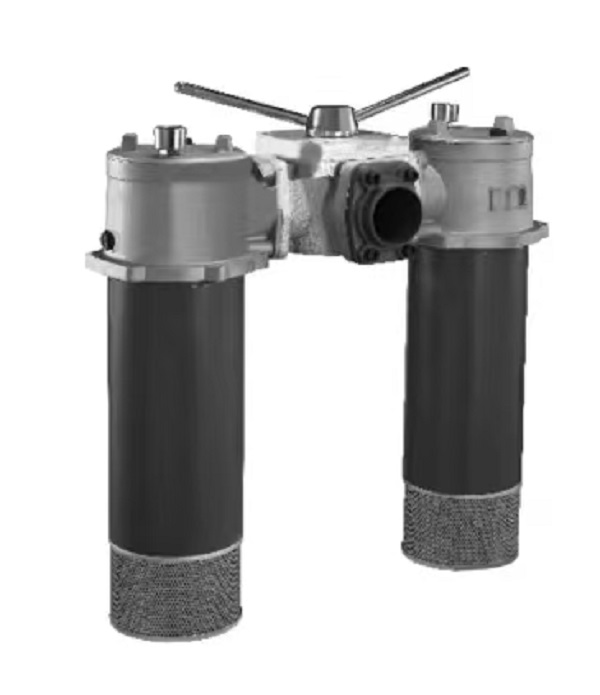

SRFB Duplex Tank Mounted Return Filter

Product Overview

SRFB Duplex Tank Mounted Return Filter is a high-performance FILTER specially designed for continuous-running hydraulic system. This duplex filter assembly consists of two filter cartridges and a manual switching valve, mounted on the hydraulic oil tank. It can realize online element replacement without shutting down the Machine, effectively removing metal debris, rubber particles and solid contaminants from hydraulic oil, protecting pumps, valves and other key components of the hydraulic system and extending the service life of hydraulic components.

Technical Specifications

- Series: SRFB Duplex Tank Mounted Return Filter

- Flow rate range: 25 ~ 1300 L/min

- Filtration precision: 3μm, 5μm, 10μm, 20μm, 30μm

- Working medium: Mineral hydraulic oil, phosphate ester, water-glycol emulsion

- Max working pressure: 1.6MPa

- Built-in parts: Bypass valve, differential pressure contamination transmitter, oil diffuser

- Installation: Tank top / side / bottom mounting

Working Principle

When the Machine is running, hydraulic oil flows back to the tank through this FILTER. The switching valve controls one filter chamber in working status while the other stands by. Once the filter element is blocked and pressure differential rises, operators can switch the valve to activate the standby chamber. The clogged element can be replaced safely without stopping the hydraulic system, ensuring uninterrupted production. The built-in bypass valve opens automatically when pressure exceeds the set value to avoid system overload damage.

Core Advantages

1. Duplex structure supports non-stop maintenance, ideal for equipment that cannot be shut down frequently.

2. Compact tank-mounted design saves installation space for the hydraulic system.

3. Equipped with differential pressure alarm indicator, reminds users to replace filter elements timely.

4. Large dirt holding capacity, low pressure drop, stable filtration performance.

5. Multiple precision options to meet different cleanliness requirements of the Machine.

Application Range

Widely applied in engineering machinery, metallurgical equipment, injection molding machines, mining equipment and other industrial Machine. It serves as the key return line filtration unit of the hydraulic system to keep hydraulic oil clean and stable.
