HP3V140 AV1B1RC4S3M-L1-XT1 XCMG

Product Overview

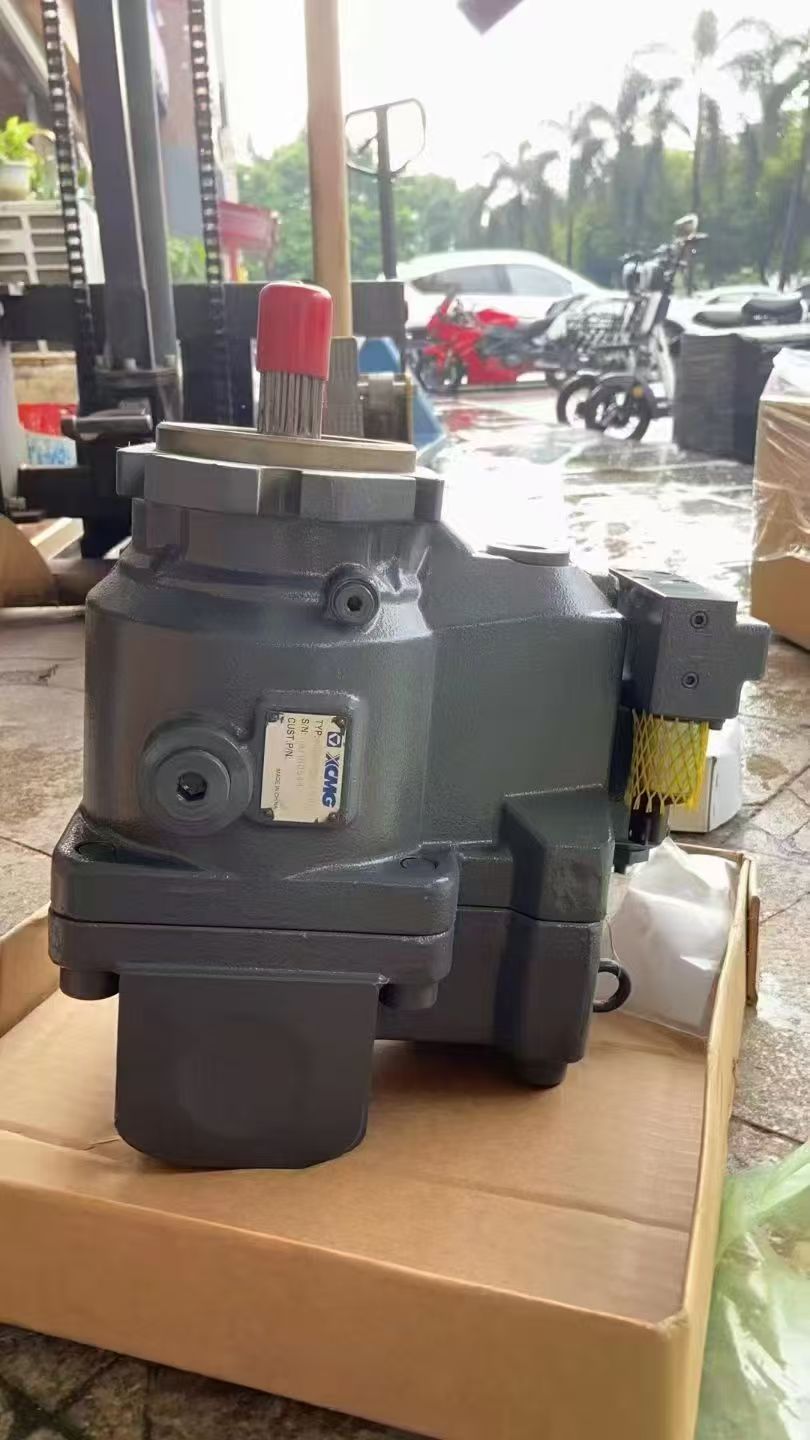

HP3V140 AV1B1RC4S3M-L1-XT1 is XCMG original hydraulic piston pump, widely fitted on XCMG construction machinery. This hydraulic pump serves as the power core of the hydraulic system, converting mechanical power into hydraulic oil pressure. It delivers stable high-pressure oil flow to drive the whole Machine, featuring high power density, low noise and good anti-shock performance. It is a core replacement spare part for excavators and other heavy-duty equipment.

Technical Specifications

- Model: HP3V140 AV1B1RC4S3M-L1-XT1

- Brand: XCMG

- Pump type: Variable displacement hydraulic piston pump

- Displacement: 140ml/r

- Control mode: Electro-hydraulic control

- Rated pressure: 33MPa, peak pressure up to 37MPa

- Rotation direction: Clockwise

- Working medium: Anti-wear hydraulic oil

- Application: XCMG 20-ton class excavator

Working Principle

When the Machine starts, the engine drives the shaft of this hydraulic pump. The internal swash plate changes the piston stroke to adjust the output flow. The electro-hydraulic control unit automatically regulates displacement according to load demand, matching oil supply for the hydraulic system. It provides continuous pressurized hydraulic oil for boom, arm, bucket and travel circuits, realizing flexible action of the excavator.

Core Advantages

1. Original XCMG quality, stable performance, strong durability for heavy load working conditions.

2. Electro-hydraulic proportional control, high response speed, good energy-saving effect for the hydraulic system.

3. High pressure resistance, strong overload capacity, suitable for harsh mining and construction sites.

4. Low vibration and low noise, long service life, easy maintenance for the Machine.

5. Perfect matching with XCMG excavator hydraulic system, direct replacement without modification.

Application Range

Mainly used for XCMG 20-ton hydraulic excavators. As the main hydraulic pump, it supplies power for the whole hydraulic system of construction Machine, widely used in earthmoving, quarrying, road construction and municipal engineering scenarios.
