Product details

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures 6P 2.54mm pre assembled connection cables to deliver steady power and signal interconnection between circuit modules and printed circuit boards. This finished cable assembly adopts standard 2.54 millimeter pitch six position structure, supports customizable wire length and wire gauge selection, features reliable crimp terminal locking design for easy plug and unplug operation without extra soldering work. It is widely used for digital household appliance inner wiring industrial control module link communication device signal transmission and compact consumer electronic equipment assembly. Users complete physical mating between cable connector and matched board mounted header to build complete electrical loop. Operators should avoid sharp pulling or sharp bending on cable bodies during installation, ensure full connector engagement and store finished harness products in dry surroundings to prevent metal terminal oxidation. Unlike competitors outsourcing harness processing Antenk performs full in house production covering raw wire cutting stripping terminal crimping connector assembly and comprehensive laboratory electrical continuity inspection. Our factory owns ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent of finished products are exported across global markets. Please send your wire length wire gauge and project application requirements for free sample evaluation and complete technical document support.

1. Custom Length Cable supports varied wire dimension options to satisfy diverse internal wiring layout requirements of electronic devices.

2. Pre Crimped Harness adopts factory finished terminal crimping structure to save assembly time for end product manufacturers.

3. Polarized Connection Cable features anti mis insertion design to avoid wrong mating damage during equipment installation work.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 6 positions 2.54 millimeter pitch pre assembled wire to board cable

1.2 Measurement unit: millimeter

1.3 Key feature: Consists of 2 pieces housing AH2541‑2x3P, 4 pieces terminal AT2541T‑XP and 2 pieces connecting wire. General dimension tolerances follow drawing standard: x.±0.35, x.x ±0.25, x.XX ±0.20, x.XX ±0.15

1.4 Wire specification: UL1007 26AWG wire material

1.5 Assembly method: Pre crimped finished cable for direct plug in connection

1.6 CTA: Contact our engineering team to acquire complete dimension drawings and bill of material files for your hardware design validation.

2. Material Construction

2.1 Housing: Plastic housing model AH2541‑2x3P

2.2 Terminal: Crimp terminal model AT2541T‑XP

2.3 Conductor wire: UL1007 26AWG electrical wire

2.4 Compliance: Meets RoHS environmental requirements

3. Electrical & Performance Parameters

3.1 Note: Full rated current voltage and insulation performance data are recorded in the complete product datasheet. Request official technical documents for detailed electrical parameters.

4. Usage Method

4.1 Assembly mode: Directly plug the cable housing onto matching board mount connector header

4.2 Operation tip: Ensure complete insertion engagement to achieve stable electrical continuity

5. Application Scenarios

5.1 Digital household appliance internal wiring interconnection

5.2 Industrial control module signal and power link

5.3 Communication device internal circuit connection

5.4 Consumer electronic equipment module assembly

6. Operation & Storage Precautions

6.1 Observe drawing dimension tolerance requirements during mechanical structure design

6.2 Do not apply excessive pulling force on cable and terminals to prevent terminal loosening or wire falling off

6.3 Avoid sharp bending or scratching the outer insulation layer of UL1007 26AWG wire

6.4 Store finished cables under dry environment to prevent terminal metal contact oxidation

6.5 Confirm housing terminal wire gauge and position count before project design and procurement

6.6 CTA: Submit your custom wire length and project application needs, we can provide free sample evaluation and professional technical consultation services.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

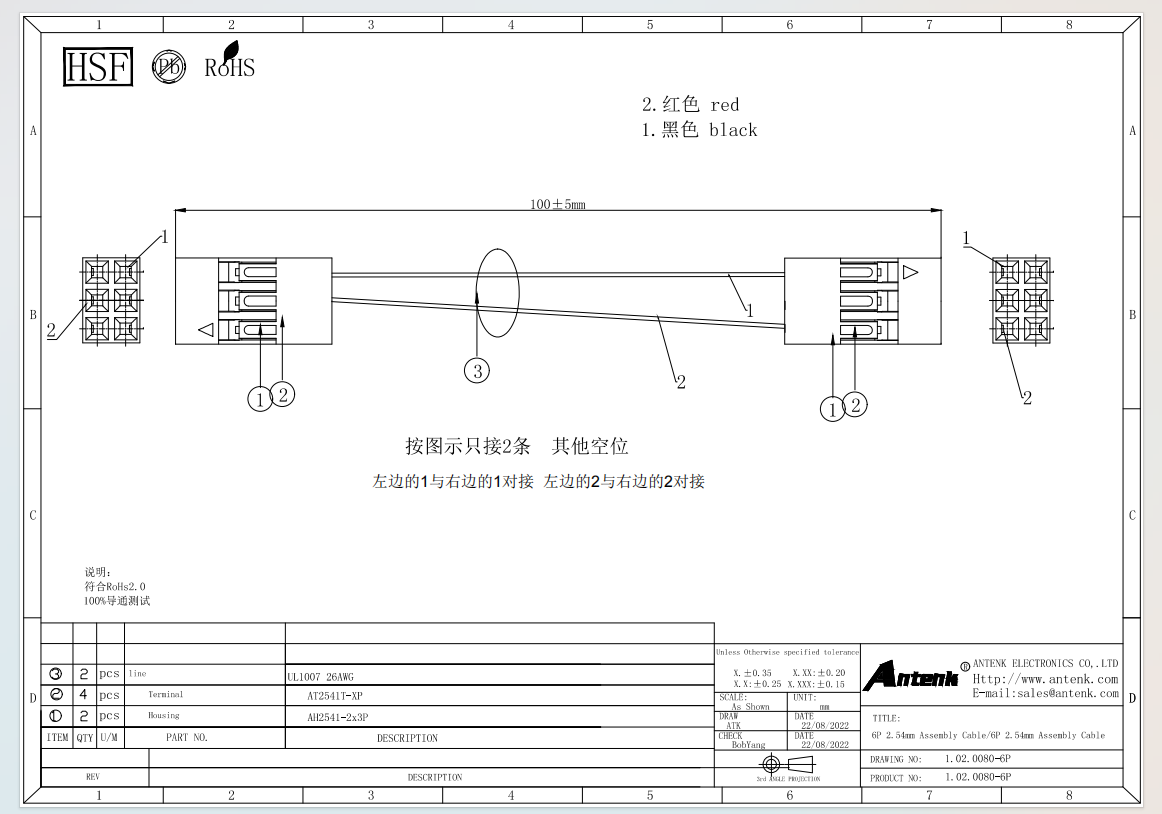

Product Drawing：

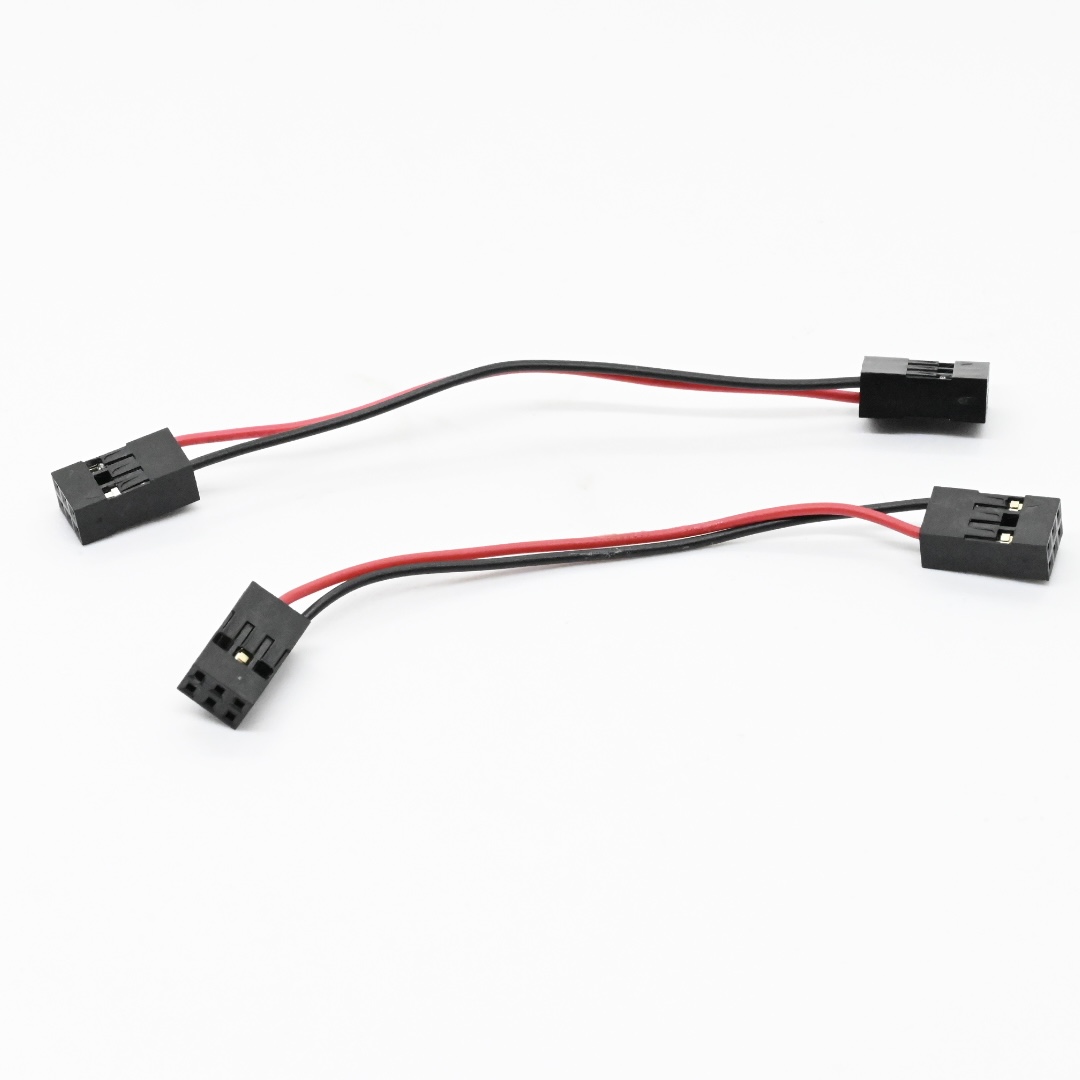

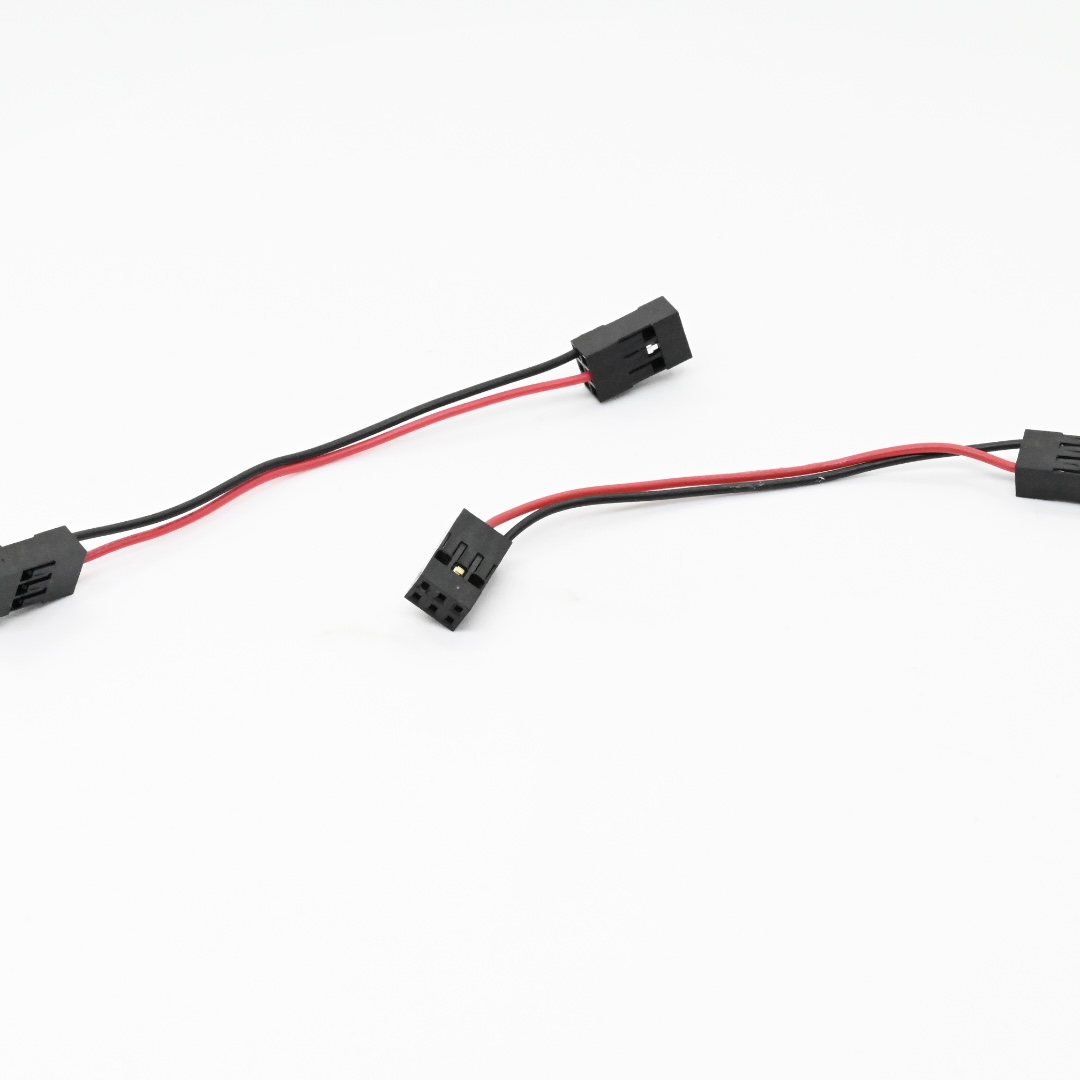

E-RM-000132-32 6P+6P 2.54mm Assembly Cable6P 2.54mm Assembly Cable（6）

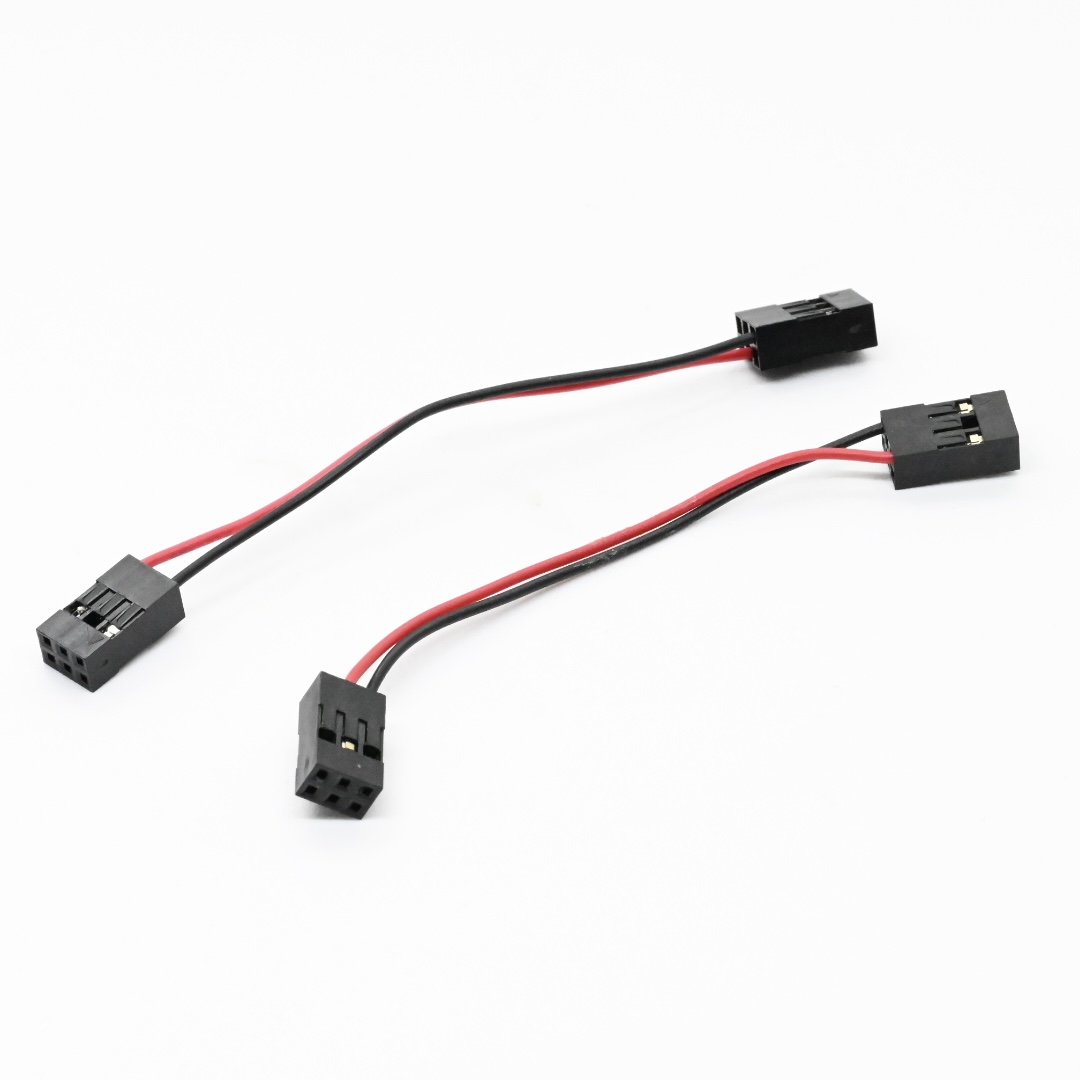

E-RM-000132-32 6P+6P 2.54mm Assembly Cable6P 2.54mm Assembly Cable（5）

E-RM-000132-32 6P+6P 2.54mm Assembly Cable6P 2.54mm Assembly Cable（4）

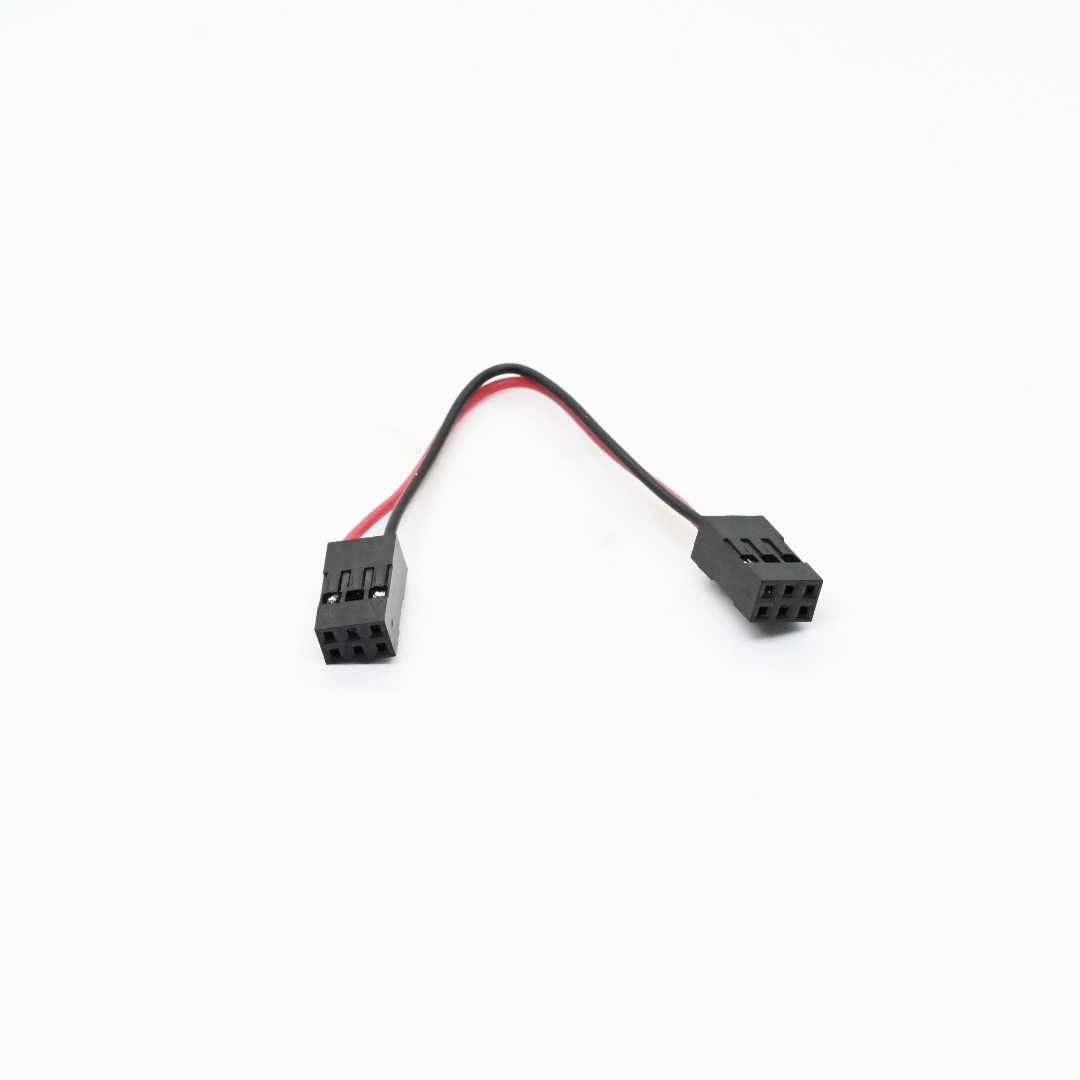

E-RM-000132-32 6P+6P 2.54mm Assembly Cable6P 2.54mm Assembly Cable（3）

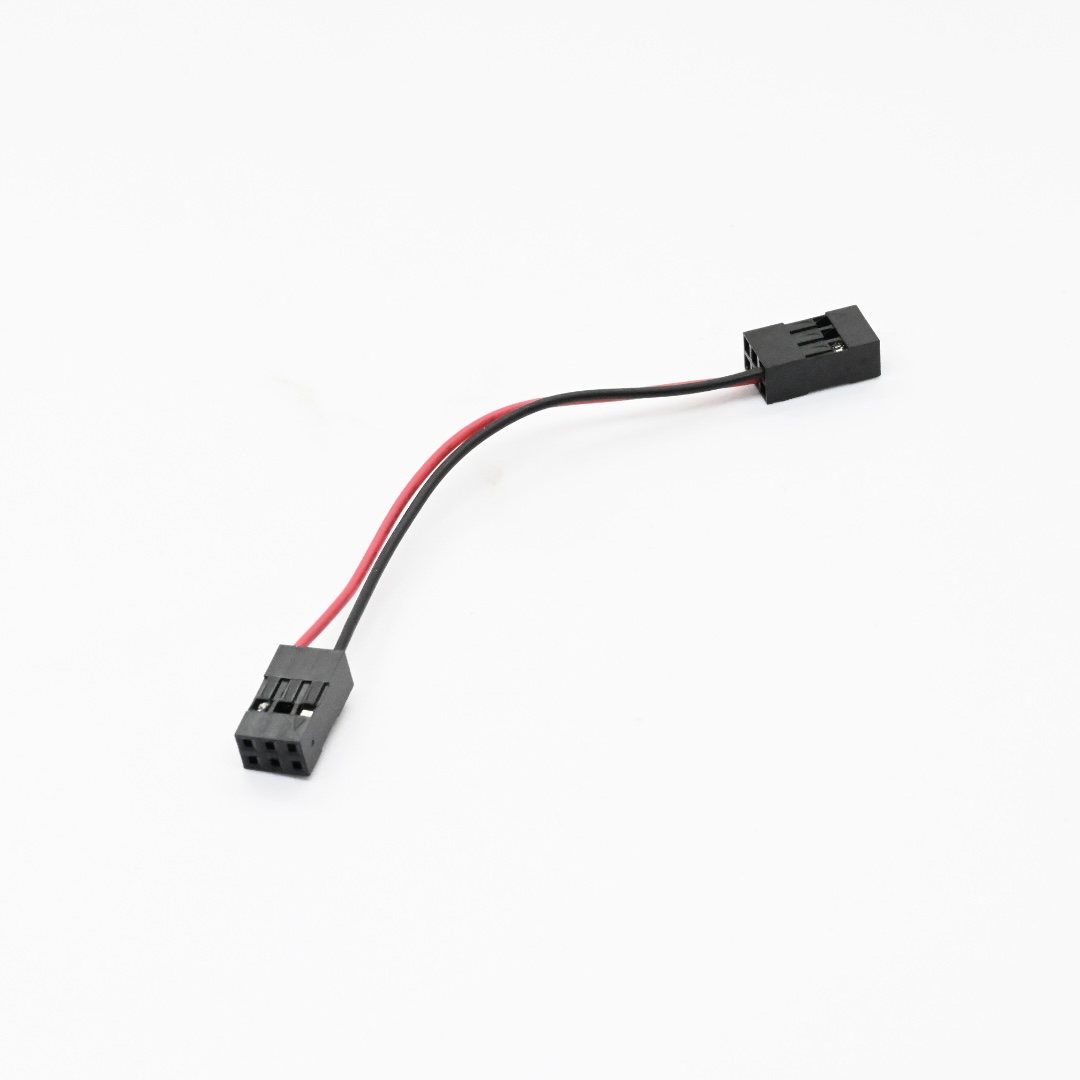

E-RM-000132-32 6P+6P 2.54mm Assembly Cable6P 2.54mm Assembly Cable（2）

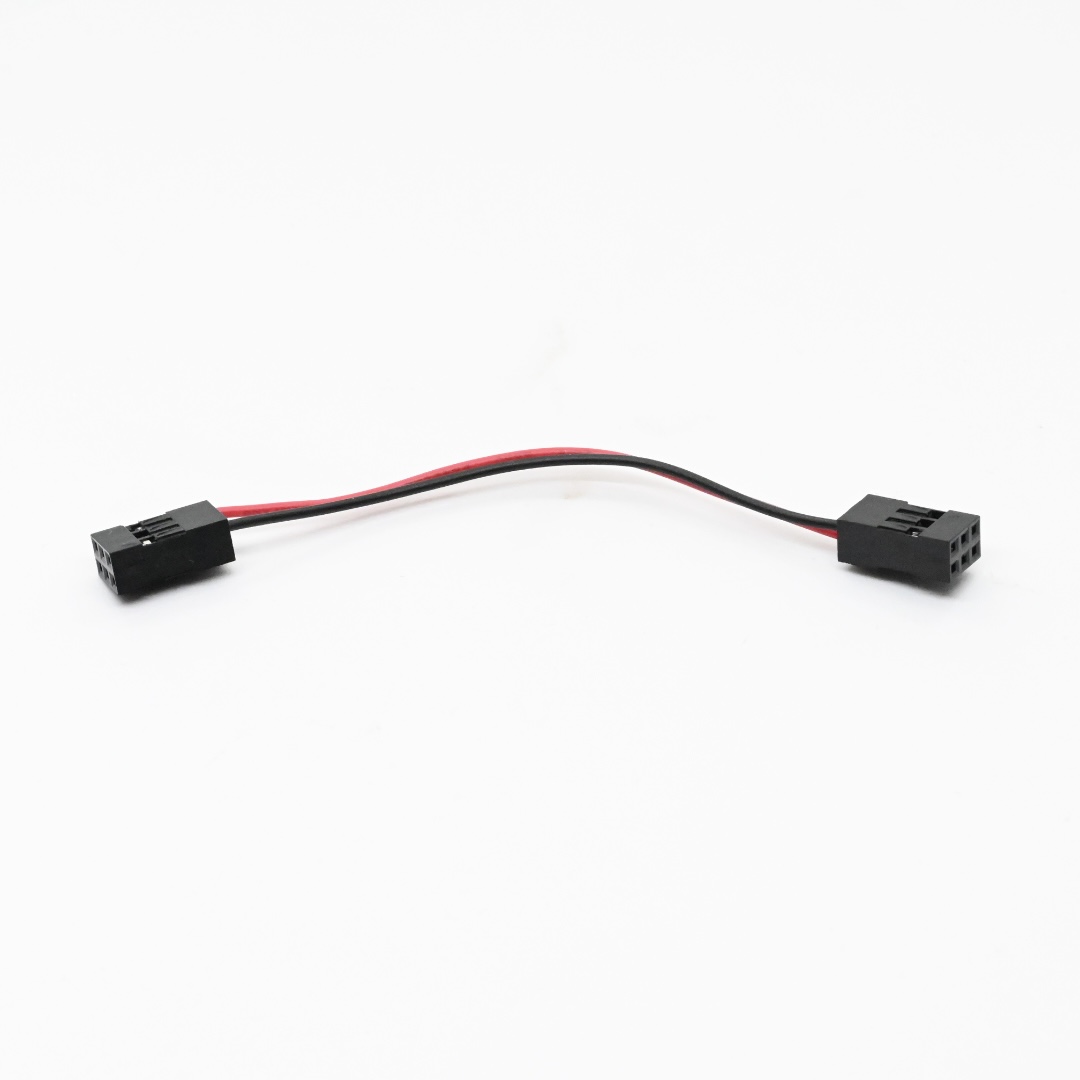

E-RM-000132-32 6P+6P 2.54mm Assembly Cable6P 2.54mm Assembly Cable（1）
