HML5-1.4, HMB5-1.8, HMM5-2.3-P-N-HV279S4 Hydraulic Motors for Hatch Cover

Product Overview

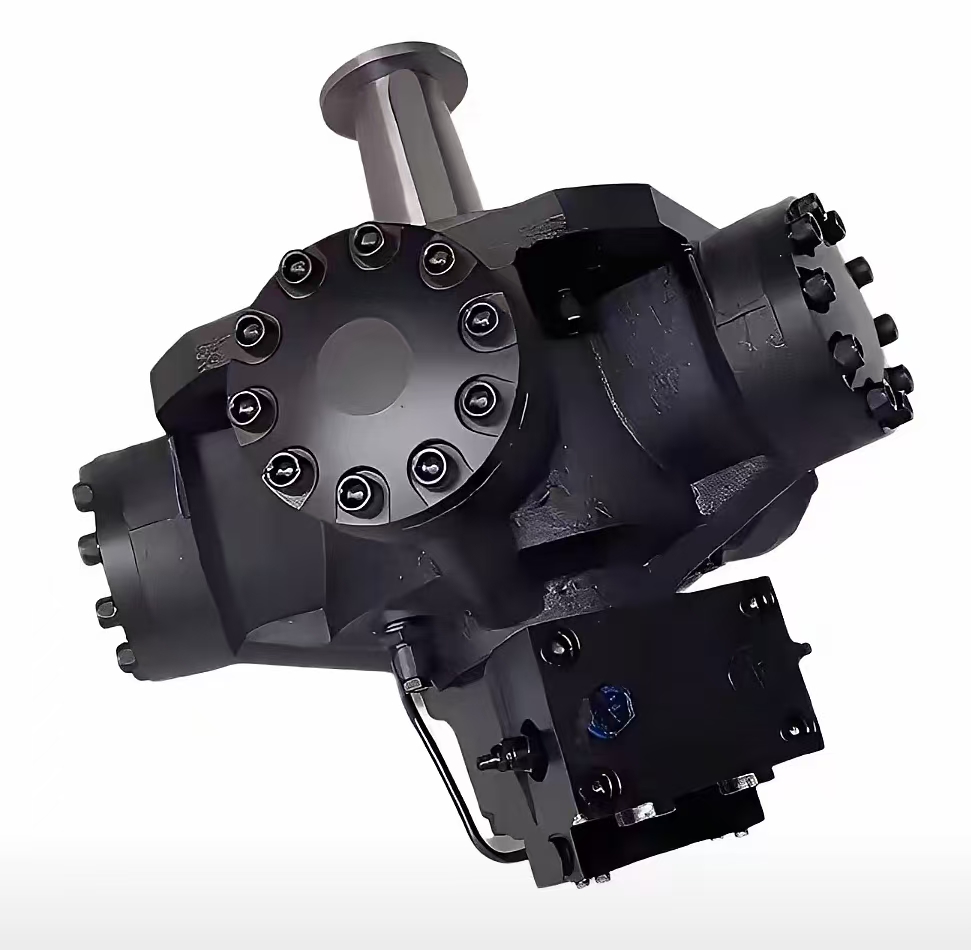

HML5-1.4, HMB5-1.8, HMM5-2.3-P-N-HV279S4 are heavy-duty Hydraulic piston motor. As reliable hydraulic motor, they convert hydraulic energy from the hydraulic system into high torque rotary power, specially engineered for marine Machine such as vessel hatch covers. This series hydraulic motor features compact structure, stable low-speed performance and good corrosion resistance. It can match marine hydraulic system perfectly and withstand harsh salty wet onboard environment, to drive the opening and closing movement of ship hatch cover Machine.

Technical Specifications

- Model: HML5-1.4, HMB5-1.8, HMM5-2.3-P-N-HV279S4

- Type: Radial piston Hydraulic piston motor

- Application: Ship hatch cover marine Machine

- Working medium: Marine anti-wear hydraulic oil

- Characteristic: Large starting torque, smooth low-speed rotation, stable output torque

- Working condition: Adapt to salt fog, humidity and frequent start-stop marine working environment

- Function: Drive hatch cover opening & closing; compatible with marine deck machinery hydraulic system

Working Principle

Pressurized hydraulic oil supplied by the hydraulic system enters this Hydraulic piston motor. The oil pressure pushes the internal piston assembly to act on the cam ring, generating strong rotary torque to drive the hatch cover Machine. By adjusting oil flow and pressure of the hydraulic system, the rotating speed and output force of the hydraulic motor can be controlled flexibly, realizing stable and safe operation of ship hatch covers.

Core Advantages

1. High-performance Hydraulic piston motor, large starting torque, no crawling at low speed for marine Machine.

2. Good seawater and salt fog corrosion resistance, long service life in shipboard hydraulic system.

3. Multiple displacement models available to meet different load requirements of hatch cover Machine.

4. Compact installation size, convenient to maintain and replace the original hydraulic motor.

5. Strong impact resistance, stable operation under frequent forward and reverse working cycles.

Application Range

This series hydraulic motor is mainly used for ship hatch cover Machine, also suitable for other marine deck machinery. As the core drive component of vessel hydraulic system, it undertakes heavy load tasks for hatch opening and closing operations on cargo ships and engineering ships.
