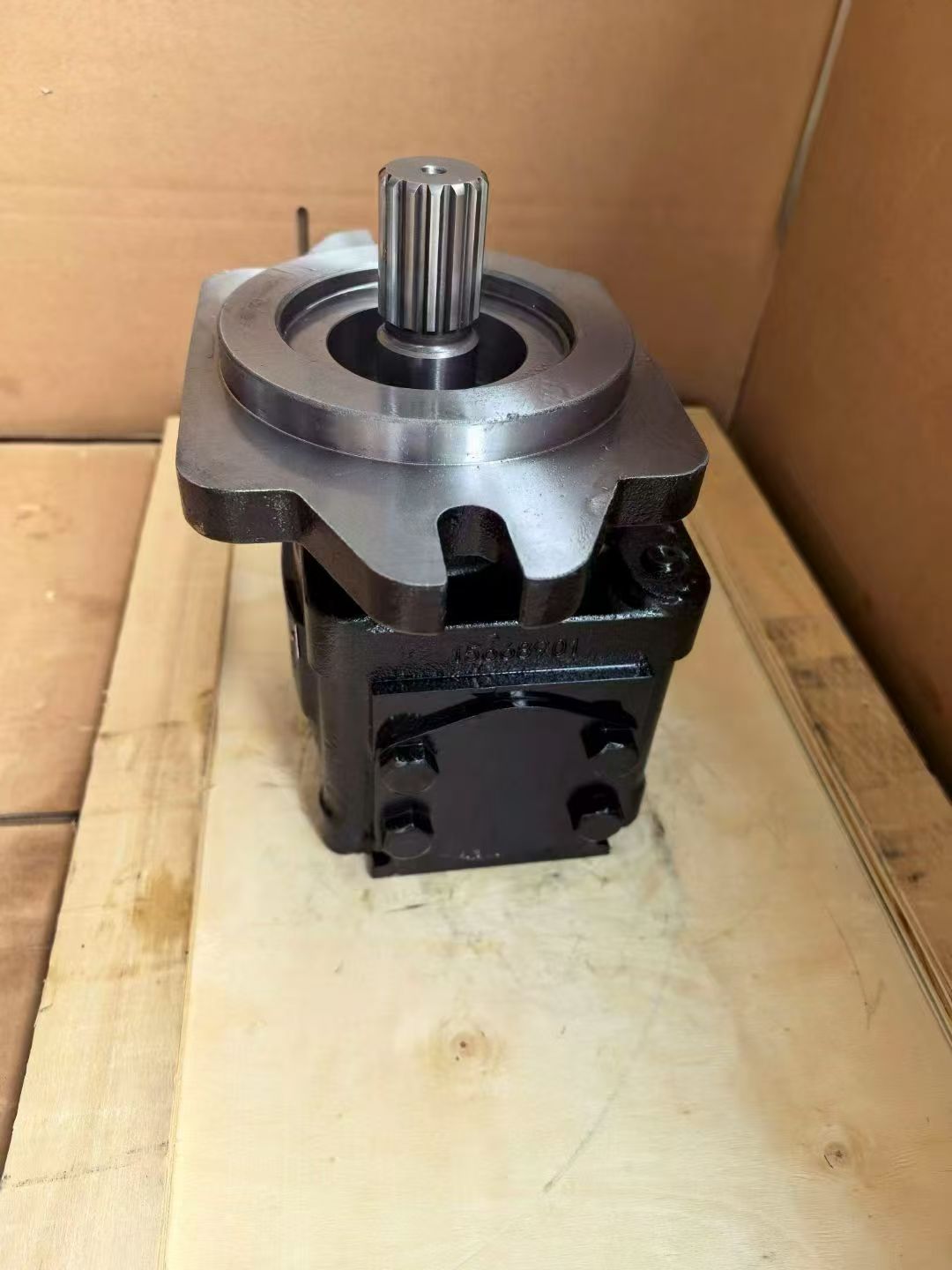

KP30.51D0-06S8-LME/OF-N-CSC Gear Pump, Replacement for Casappa

Product Overview

KP30.51D0-06S8-LME/OF-N-CSC is a high-performance Hydraulic gear pump, designed as a direct replacement for Casappa gear pump. This hydraulic pump acts as the power source of the hydraulic system. The Hydraulic gear pump can provide stable pressurized hydraulic oil for various engineering Machine. With consistent mounting dimensions and performance parameters, it can substitute the original Casappa pump without modifying the hydraulic system, which is a cost-effective spare part for mobile machinery.

Technical Specifications

- Model: KP30.51D0-06S8-LME/OF-N-CSC

- Type: External meshing Hydraulic gear pump

- Brand: Alternative to Casappa

- Displacement: 51 cc/r

- Working pressure: Max continuous pressure up to 25MPa, peak pressure 28MPa

- Rotation: As marked on nameplate

- Seals: NBR or FKM optional

- Working medium: Anti-wear hydraulic oil

- Application: Construction Machine, agricultural machinery, waste equipment

Working Principle

When the Machine starts, the engine or motor drives the shaft of this hydraulic pump. The rotating gear pair creates vacuum at the oil inlet to suck hydraulic oil. Oil is transported through gear tooth gaps to the high-pressure outlet. This Hydraulic gear pump converts mechanical energy into hydraulic energy, supplying continuous flow and pressure to the whole hydraulic system to drive cylinders and hydraulic actuators.

Core Advantages

1. Direct interchangeable Hydraulic gear pump, perfect replacement for Casappa original hydraulic pump, no redesign needed for the hydraulic system.

2. Precise gear machining, low pressure pulsation, low noise and high volumetric efficiency during operation.

3. Strong pressure resistance, durable structure, suitable for heavy-duty working conditions of construction Machine.

4. Compact overall layout, simple installation and convenient maintenance.

5. Cost competitive while maintaining reliable performance for mobile hydraulic system.

Application Range

This hydraulic pump is widely applied to construction Machine, agricultural equipment, sanitation trucks and other mobile machinery. As a key Hydraulic gear pump, it provides power for the hydraulic system of various off-road equipment.
