Product details

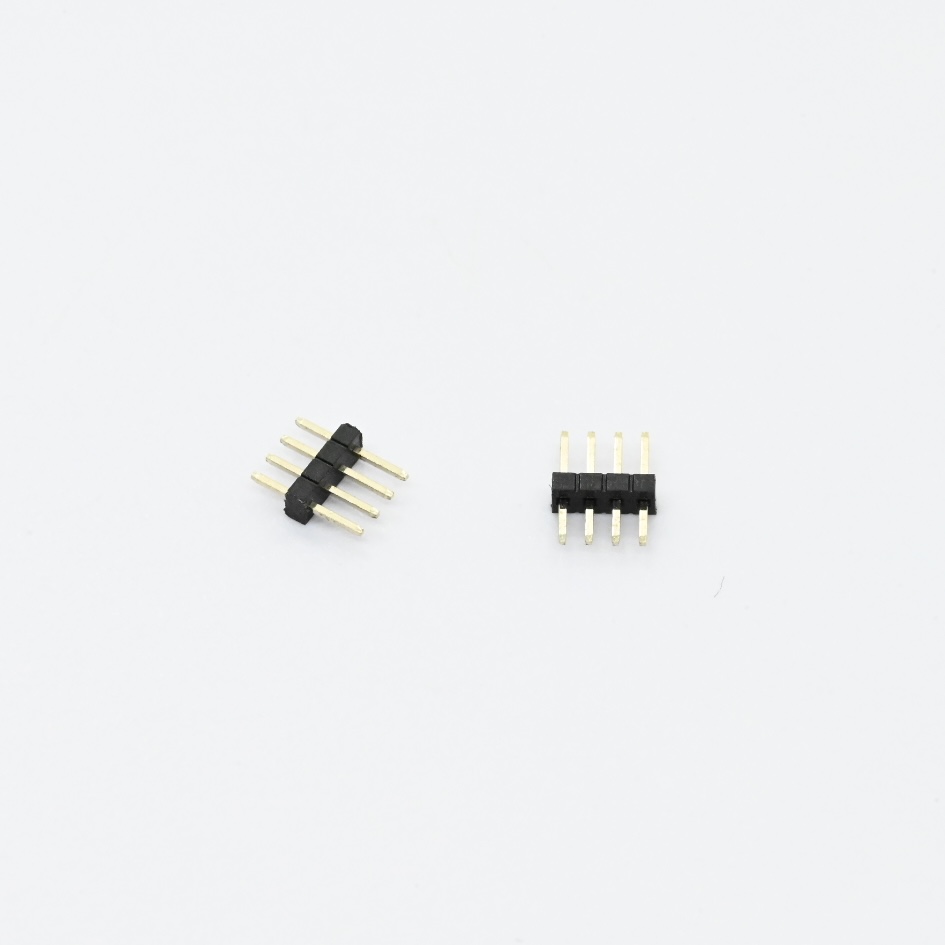

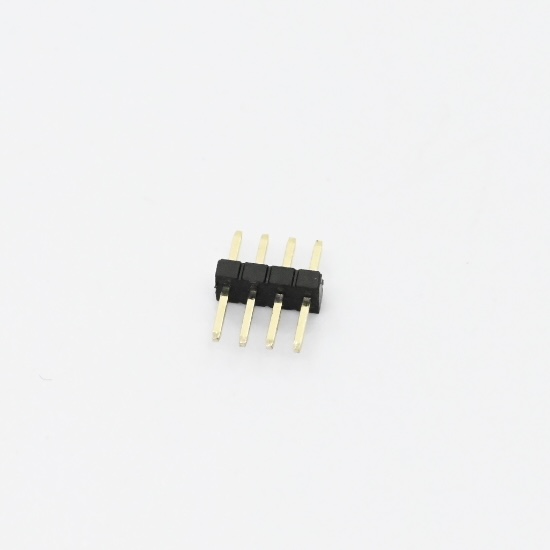

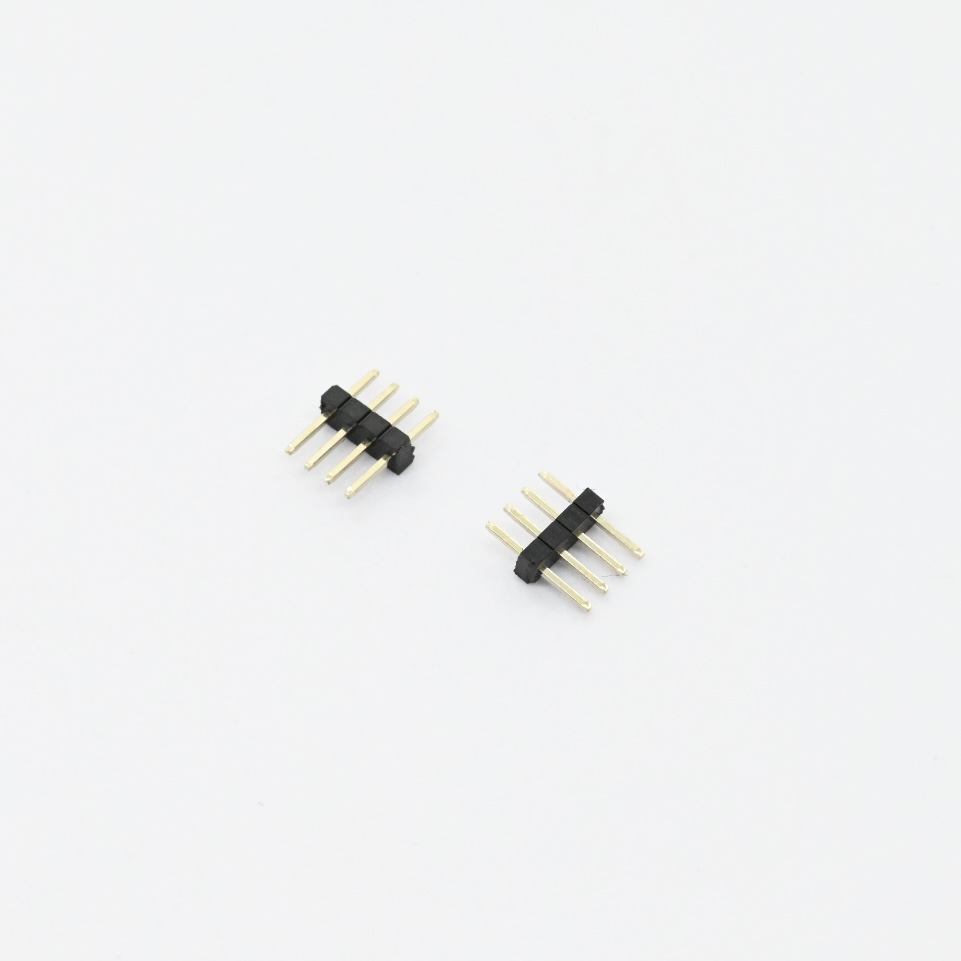

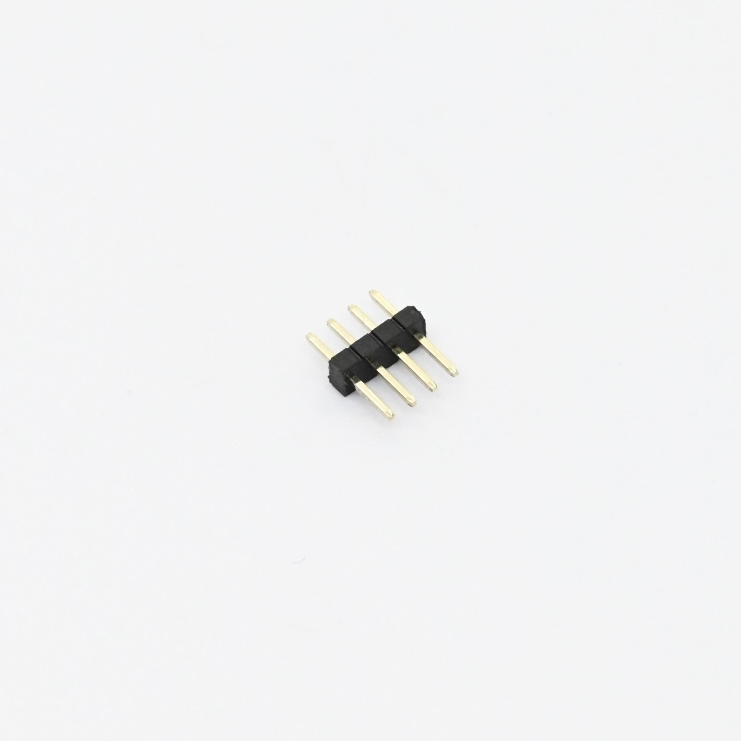

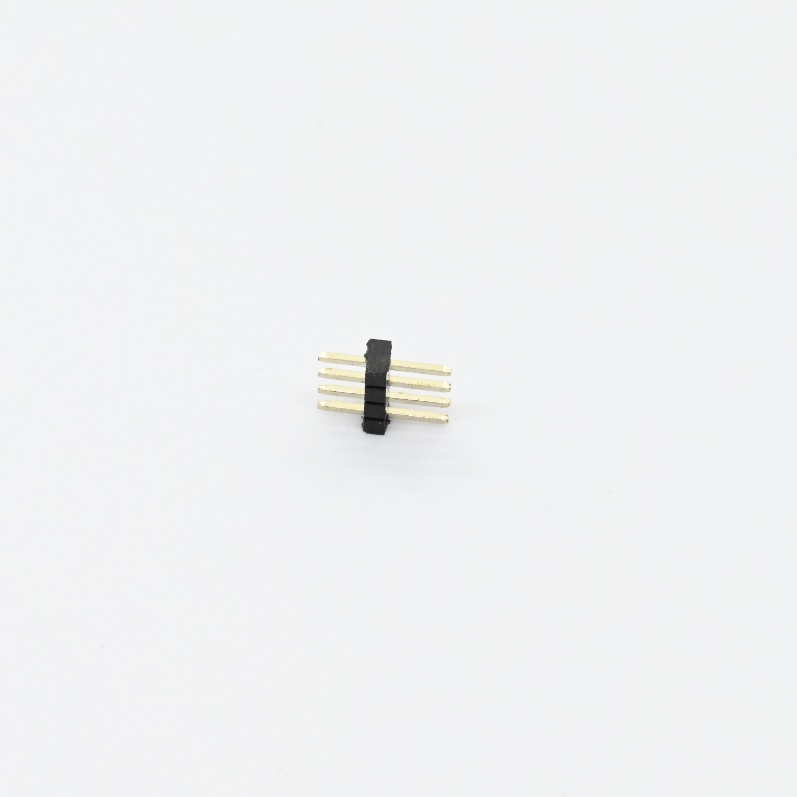

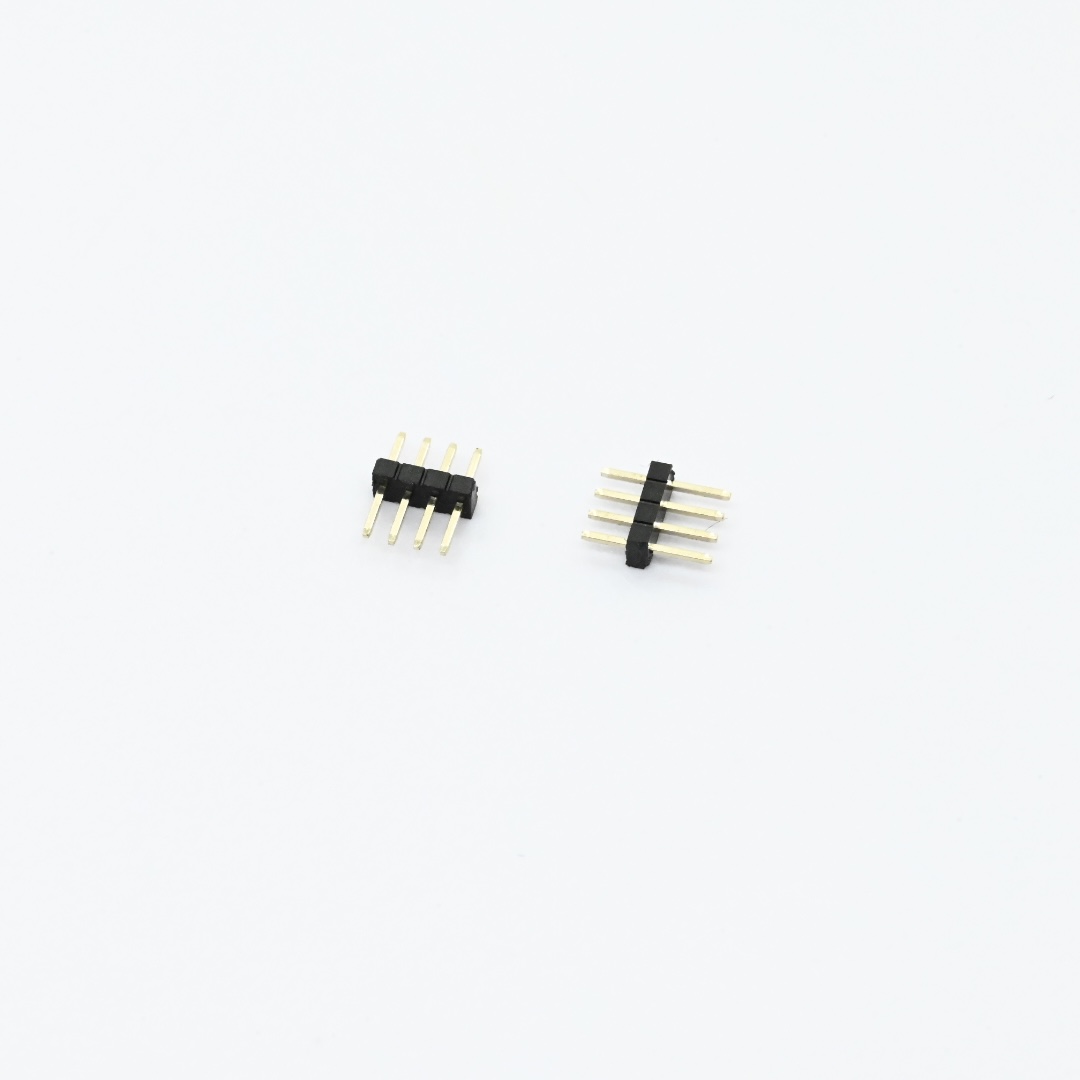

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures single row straight 1.27 millimeter pin headers to achieve reliable board to board signal and power interconnection for compact electronic hardware. This through hole male header uses PBT insulator with UL94 V zero flame retardant grade and square 0.40SQ pins, supports one amp rated current with contact resistance below twenty milliohm and insulation resistance above one thousand megaohm, dielectric withstand voltage reaches five hundred volt alternating current, operating temperature ranges from minus sixty five degree to plus one hundred twenty five degree, pin length and pin quantity can be customized from two up to fifty positions. Users insert pins into printed circuit board holes then complete soldering process for stable electrical connection. Operators shall avoid pin bending and plastic housing damage during assembly and store goods in dry environment to prevent pin surface oxidation. Unlike competitors sourcing finished components externally Antenk completes full in house workflow including brass stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent finished products are exported worldwide. Please send your pin length pin count and project requirements for free sample evaluation and complete technical document support.

1. Through Hole Male Header delivers stable power and signal transmission by pin insertion into PCB holes for through hole soldering operations.

2. Custom Pin Count Connector supports configurable positions ranging from 2 to 50 ways to match diverse printed circuit board layout demands.

3. Wide Temp Range Header maintains consistent electrical performance under harsh working conditions from minus 65 degree to plus 125 degree Celsius.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: Single row straight through hole pin header

1.2 Measurement unit: millimeter

1.3 Key dimension: Pitch 1.27 mm, square pin size 0.40SQ. Contact pin quantity customizable from 01 up to 50 positions. Multiple optional pin lengths are available for selection. PCB layout reference shown in technical drawing.

1.4 Assembly method: Through hole mounting for manual or wave soldering onto printed circuit board

1.5 Ordering feature: Multiple plating options including gold flash selective gold and tin plating for different application demands

1.6 CTA: Contact our engineering team to get complete dimension drawings and ordering guide for your hardware design validation.

2. Material Construction

2.1 Insulator: PBT PA6T, UL94V‑0 black grade plastic

2.2 Pin material: Copper alloy pin with multiple surface plating alternatives

3. Electrical & Performance Parameters

3.1 Rated current: 1 Amp

3.2 Insulation resistance: 1000MΩ minimum

3.3 Contact resistance: 20mΩ maximum

3.4 Dielectric Withstanding Voltage: AC 500V

3.5 Operating temperature range: ‑65℃ to +125℃

4. Usage Method

4.1 Assembly mode: Insert metal pins through pre drilled PCB holes then complete wave soldering process

4.2 Operation tip: Select suitable pin length and plating finish according to actual board thickness and working environment.

5. Application Scenarios

5.1 Internal board to board signal connection for compact electronic devices

5.2 Industrial control module circuit interconnection

5.3 Consumer electronic and digital equipment assembly

5.4 Instrument and meter internal wiring setup

6. Operation & Storage Precautions

6.1 Follow drawing dimension requirements and PCB footprint data during structural design

6.2 Avoid bending pins or scratching insulator surface in handling and installation

6.3 Prevent contamination of pin plating area before soldering

6.4 Keep products stored under dry condition to avoid copper pin oxidation

6.5 Confirm pin count pin length and plating specification before procurement

6.6 CTA: Submit your customized pin quantity pin length and plating requirements, we offer free sample evaluation and professional technical consultation services.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

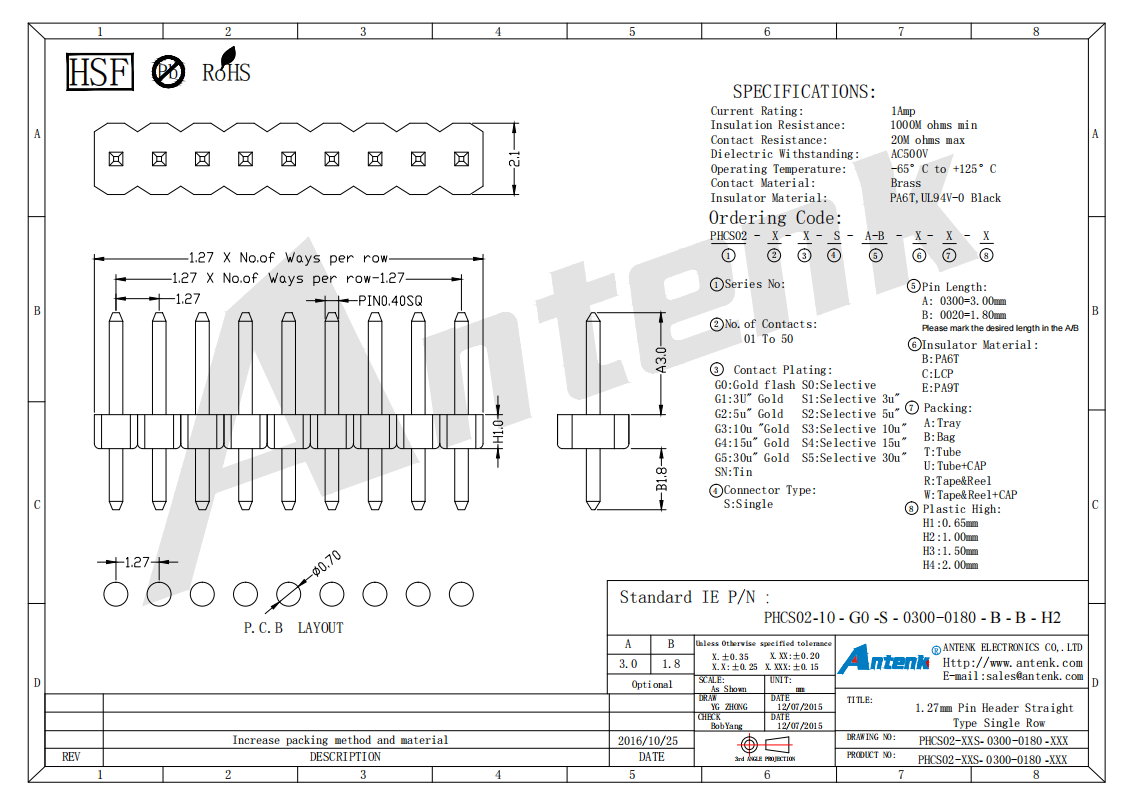

Product Drawing:
