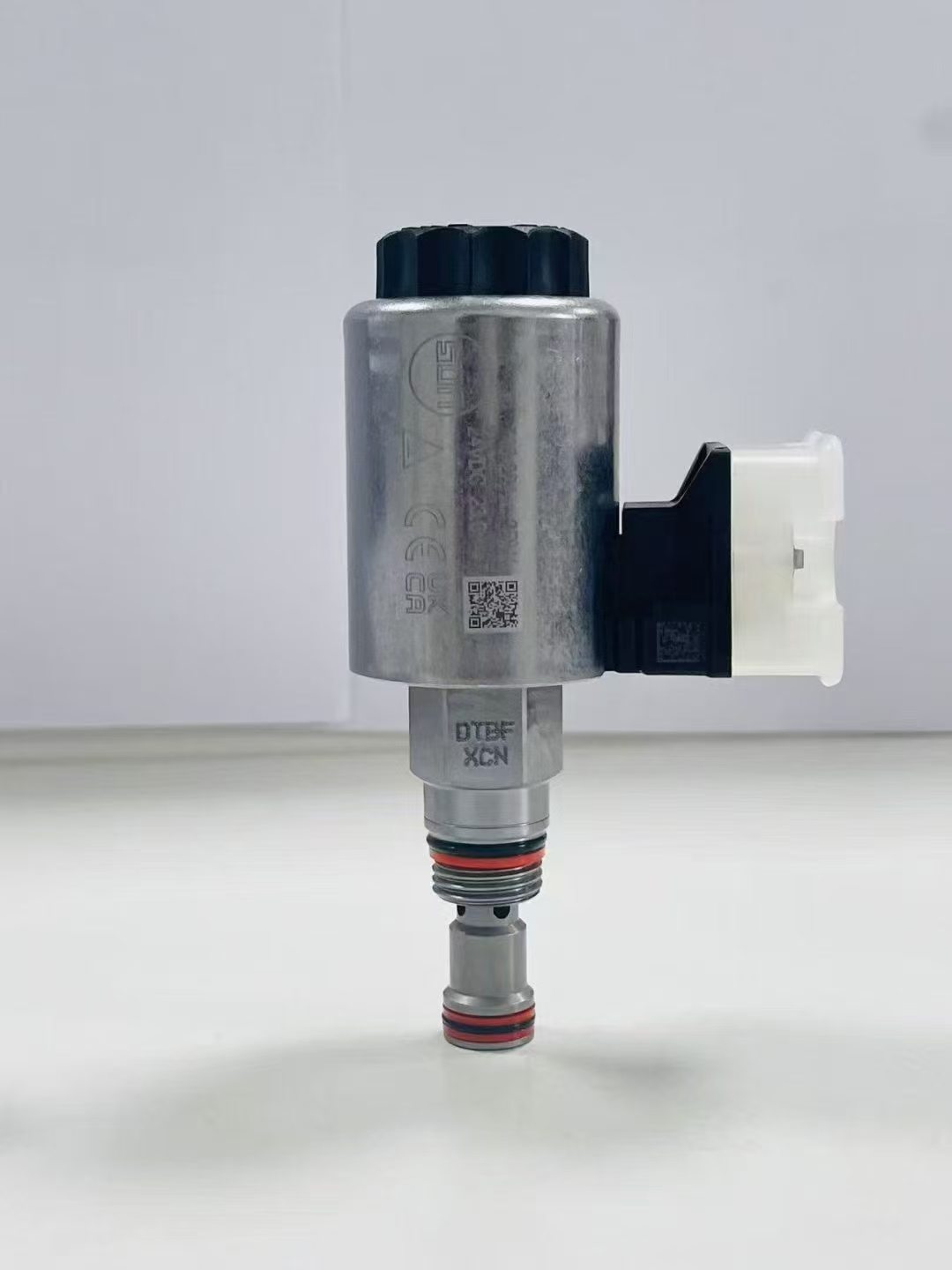

SUN DTBFXCN Hydraulic Cartridge Valve

Product Overview

SUN DTBFXCN is a FLeX series 2-way direct-acting solenoid directional blocking poppet valve, a reliable CARTRIDGE VALVE widely used as a key Hydraulic valve for flow control and load holding. It is an essential control component inside the hydraulic system of various Machine, including mobile machinery and industrial hydraulic equipment. This screw-in cartridge design can be directly installed into standard T-162A valve cavity, simplifying manifold assembly and optimizing the layout of the whole hydraulic circuit.

Technical Specifications

- Model: DTBFXCN

- Type: 2-way, 2-position solenoid operated poppet cartridge valve

- Cavity: T-162A

- Max operating pressure: 350 bar (5000 psi)

- Rated flow: up to 34 L/min (9 gpm)

- Structure: Poppet design with ultra-low internal leakage

- Compatible coil: 740 series low/high power coils, 747 explosion-proof optional

- Feature: Direct acting, no minimum pilot pressure required, optional manual override

Working Principle

As a premium Hydraulic valve, this CARTRIDGE VALVE adopts direct-acting solenoid control. When energized, the solenoid drives the poppet to switch the oil passage, enabling fluid on-off control in the hydraulic system. The poppet sealing structure achieves near-zero leakage under high pressure, effectively locking the load for the Machine. It can work stably in demanding continuous operation scenarios.

Core Advantages

1. Low internal leakage, excellent load holding performance, suitable for safety locking circuits.

2. Compact screw-in CARTRIDGE VALVE structure, easy maintenance and replacement without disassembling the whole manifold.

3. High pressure resistance up to 350 bar, long service life, tested over 10 million working cycles.

4. Flexible coil selection, adaptable to different power supply and explosion-proof requirements for the hydraulic system.

5. Stable response performance, reliable on-off control for mobile and industrial Machine.

Application Range

This SUN Hydraulic valve is widely equipped in the hydraulic system of construction machinery, material handling equipment, marine deck machinery and other industrial Machine. Typical applications include load holding, safety locking, cylinder direction control, used for hydraulic power unit, lifting equipment and mobile hydraulic stations.
