Product details

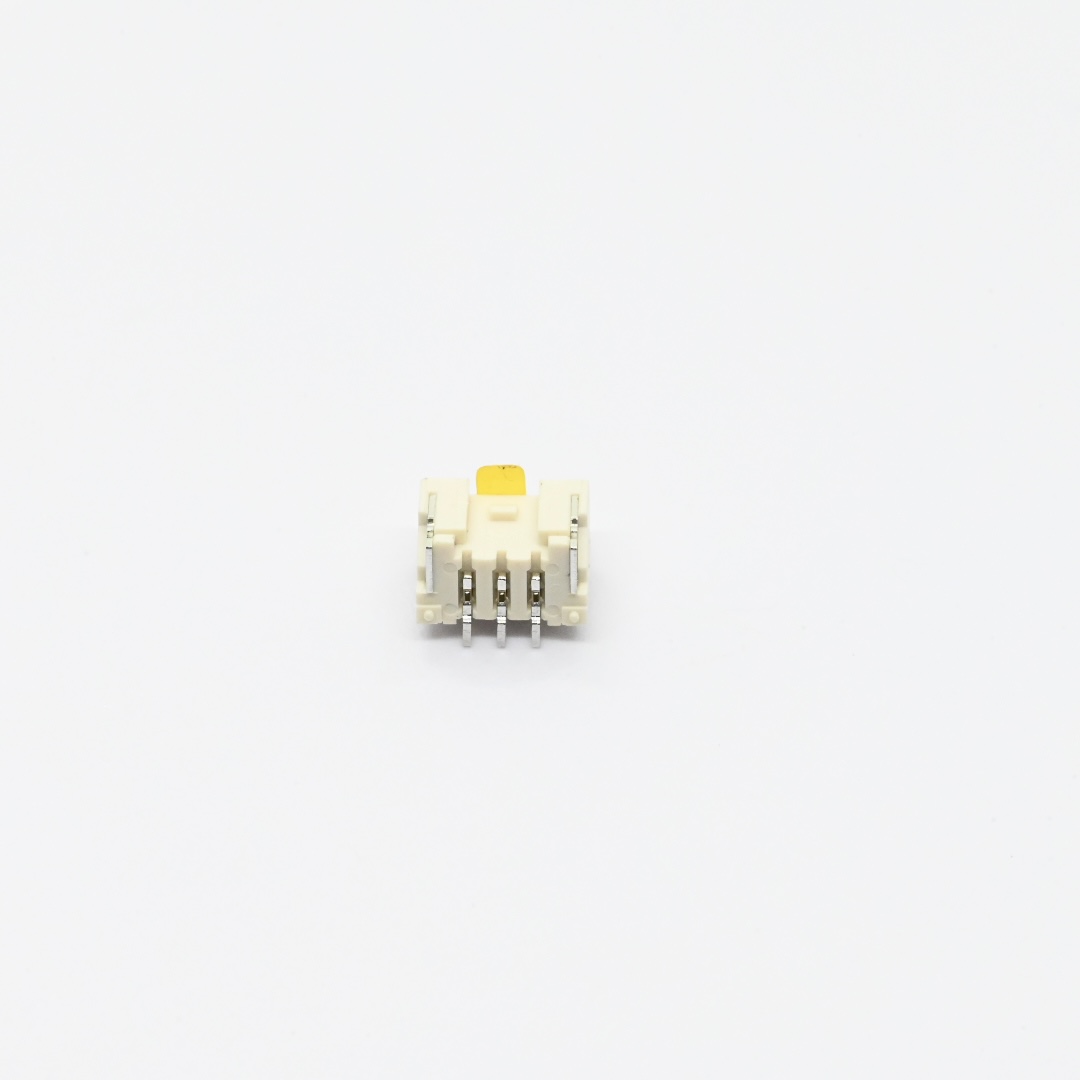

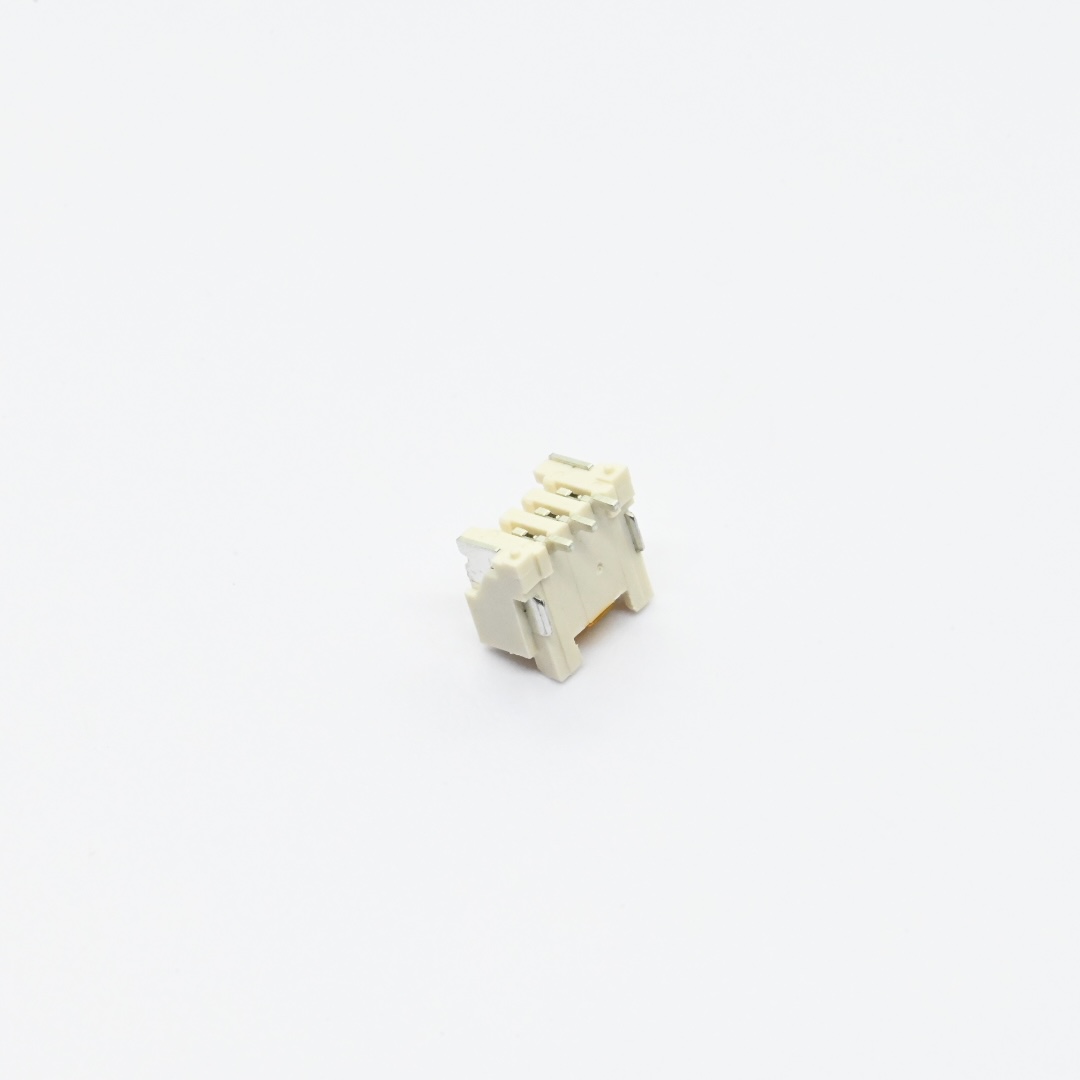

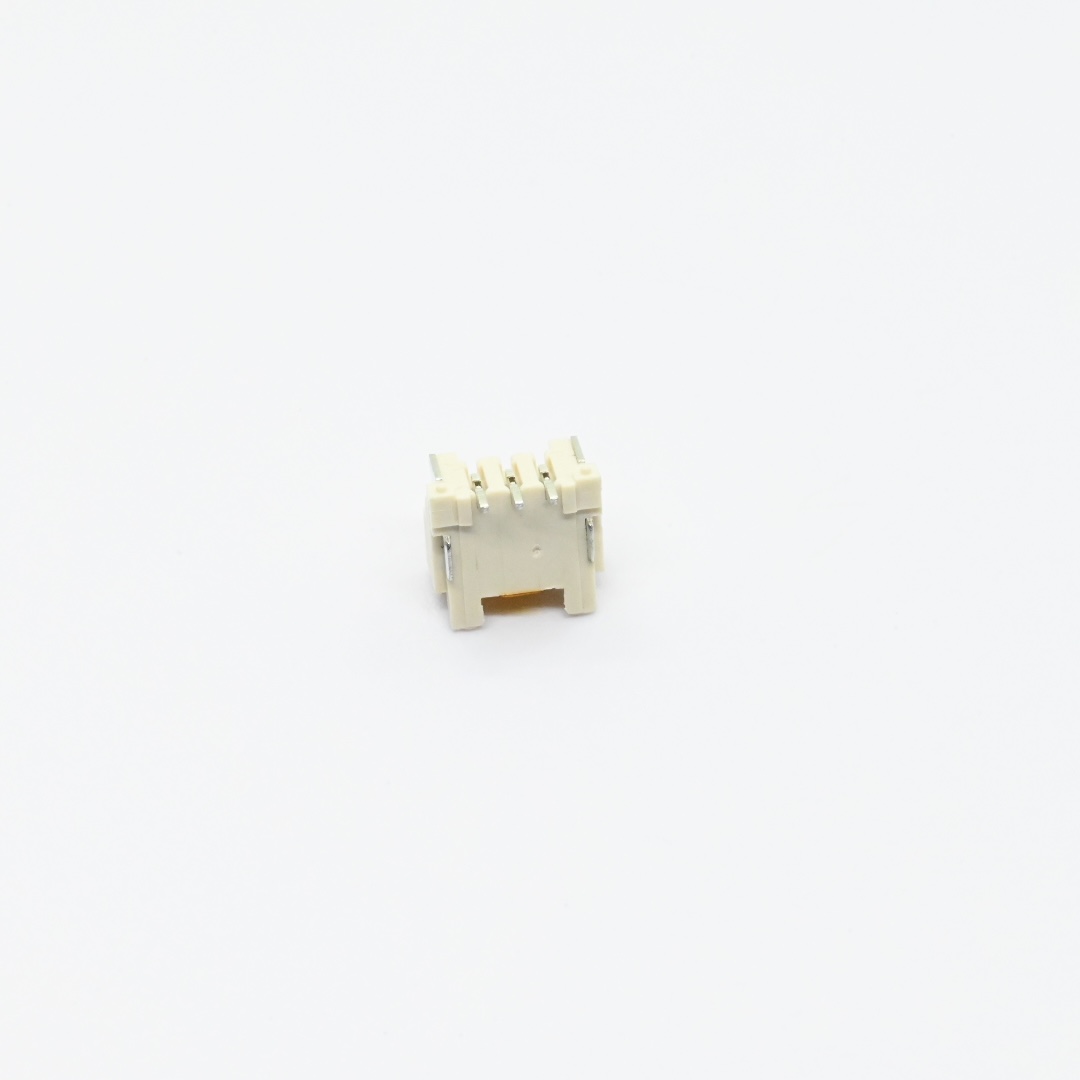

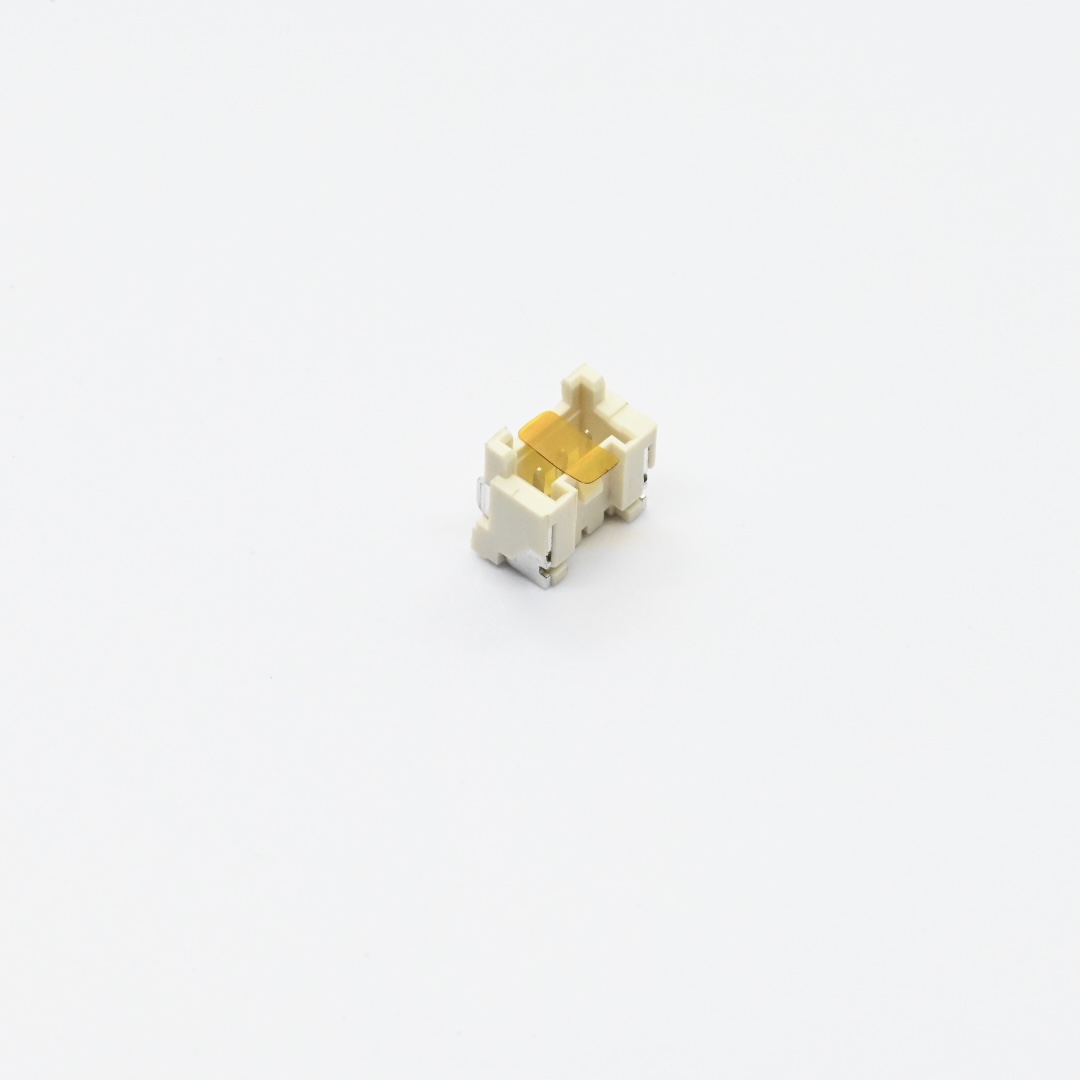

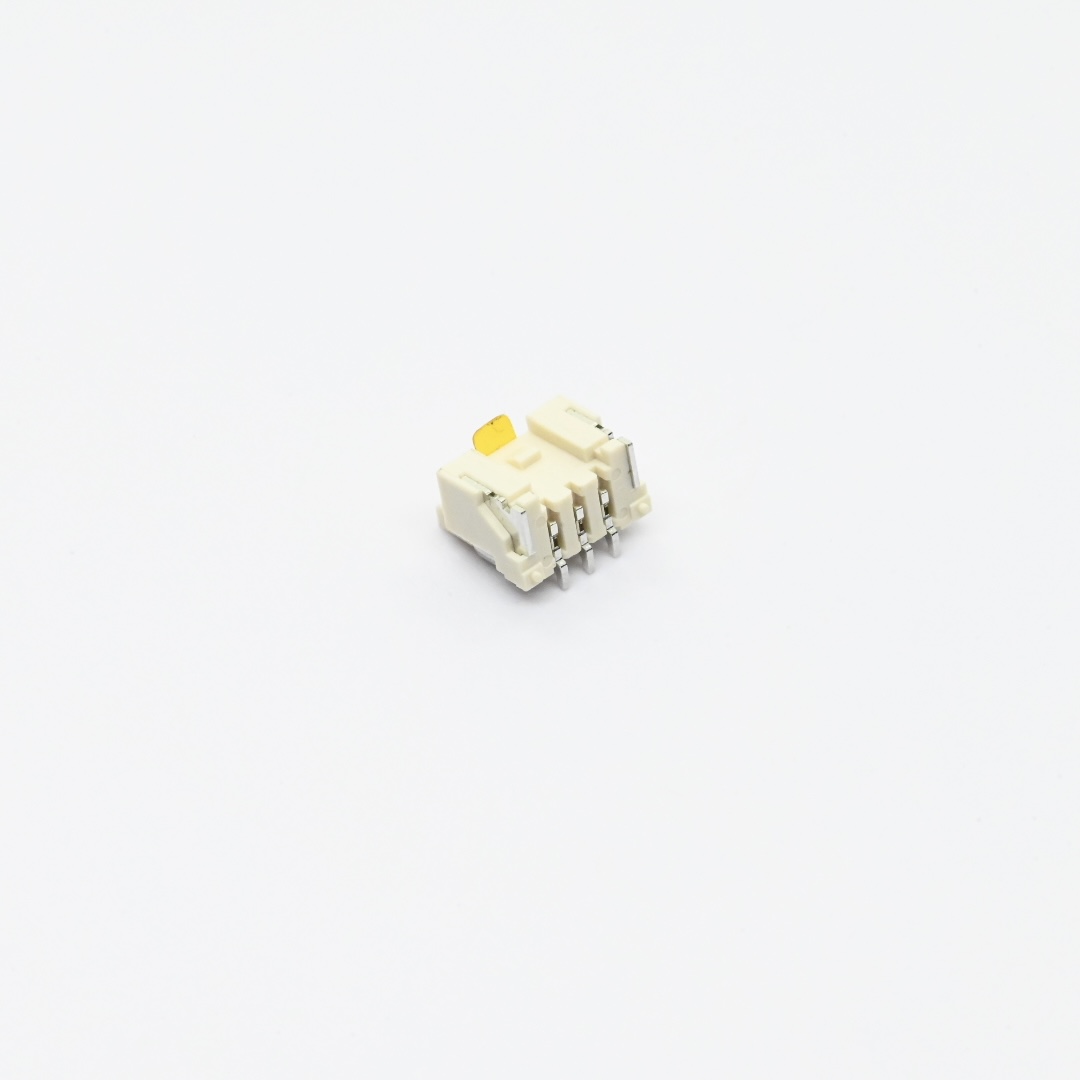

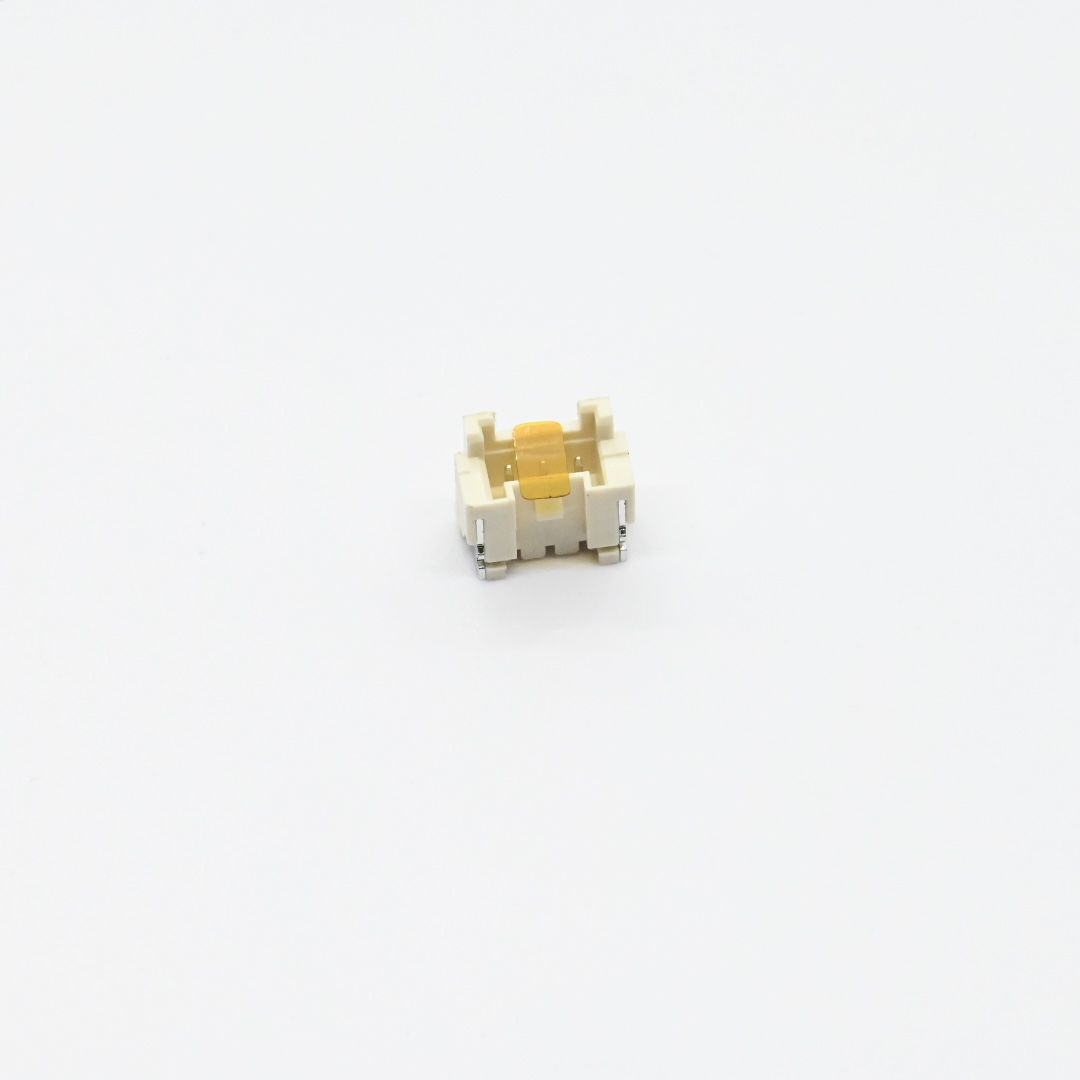

Product Description：

Huizhou Antenk Electronics Co., Ltd. manufactures 2.0 millimeter pitch 180 degree SMT wafer connectors with post to realize stable wire to board power and signal interconnection for various electronic devices. This surface mount wire to board connector adopts PA6T insulator with UL94 V zero flame retardant grade, supports 3 amp AC DC rated current and 250 volt AC DC rated voltage, contact resistance reaches 10 milliohm maximum for initial status and 20 milliohm maximum after environmental test, insulation resistance keeps above 1000 megaohm, withstand voltage can hit 800 volt alternating current per minute, operating temperature ranges from minus twenty five degree to plus eighty five degree. It matches AWG twenty eight to twenty two wire gauge and suits 1.6 millimeter thickness printed circuit board, multiple contact positions and diverse contact plating options are available, products are packed with tape and reel for automatic SMT production. Users load tape reel into pick and place machine and complete reflow soldering for reliable connection. Operators shall avoid terminal deformation and plastic damage during handling and keep dry storage environment to prevent metal oxidation. Unlike competitors purchasing finished components Antenk performs full in house workflow including terminal stamping plastic injection assembly and complete lab performance verification. Our factory owns ISO9001 ISO14001 IATF16949 and UL certifications and over seventy percent goods export globally. Please share your position plating and project requirements for free sample evaluation and full technical document support.

1. Post Equipped Wafer Connector delivers enhanced positioning stability during SMT mounting onto target printed circuit boards.

2. Tape Reel SMT Receptacle comes in standard tape and reel packing to fit high speed automatic pick and place manufacturing processes.

3. PA6T Insulated Connector adopts high performance PA6T plastic to secure reliable working performance within wide application temperature range.

Detailed Specifications：

1. Mechanical Specifications

1.1 Product type: 180 degree surface mount wafer connector with positioning post

1.2 Measurement unit: millimeter

1.3 Key dimension: Pitch 2.0 mm. Supports multiple pole counts. Matches PCB thickness of 1.6 mm. Complete PCB layout reference is provided in technical drawing.

1.4 Assembly method: SMT surface mount soldering via automatic pick and place equipment

1.5 Packaging information: Tape and reel packing, 400 pieces per reel

1.6 Ordering feature: Various contact plating selections including tin gold flash and different thickness gold plating

1.7 CTA: Contact our engineering team to obtain full dimension drawings and complete ordering specification for your hardware design validation.

2. Material Construction

2.1 Insulator: PA6T ivory plastic with UL94 V‑0 flame retardant rating

2.2 Contact terminal: Metal terminal supports multiple surface plating options

3. Electrical & Performance Parameters

3.1 Rated current: 3A AC DC for AWG 22 wire

3.2 Rated voltage: 250V AC DC

3.3 Contact resistance: Max 10 milliohm initial value, max 20 milliohm after environmental tests

3.4 Insulation resistance: Minimum 1000 megaohm initial status

3.5 Dielectric Withstanding Voltage: 800V AC per minute

3.6 Operating temperature range: ‑25℃ to +85℃ including temperature rise under electric load

3.7 Compatible wire: AWG 28 to AWG 22 conductor, wire insulation outer diameter from 0.76 mm to 1.5 mm

4. Usage Method

4.1 Assembly mode: Load tape reel into SMT machine, finish surface mount reflow soldering on 1.6 mm thickness printed circuit board

4.2 Operation tip: Select proper pole number terminal plating and matching wire gauge according to actual project requirements.

5. Application Scenarios

5.1 Wire to board power and signal interconnection for consumer electronic equipment

5.2 Internal circuit connection of digital household appliances

5.3 Compact industrial control module wiring assembly

5.4 Signal transmission for small sized instrument hardware

6. Operation & Storage Precautions

6.1 Follow official drawing dimensions and PCB layout data in product structural design

6.2 Prevent terminal deformation and insulator cracking during handling and mounting

6.3 Keep contact plating area free from dirt and scratch before soldering operation

6.4 Store products in dry surroundings to avoid oxidation of metal terminals

6.5 Confirm pole quantity plating type and wire matching requirement before placing procurement order

6.6 CTA: Send your custom pole count plating option and project information, we provide free sample evaluation and professional technical support services.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

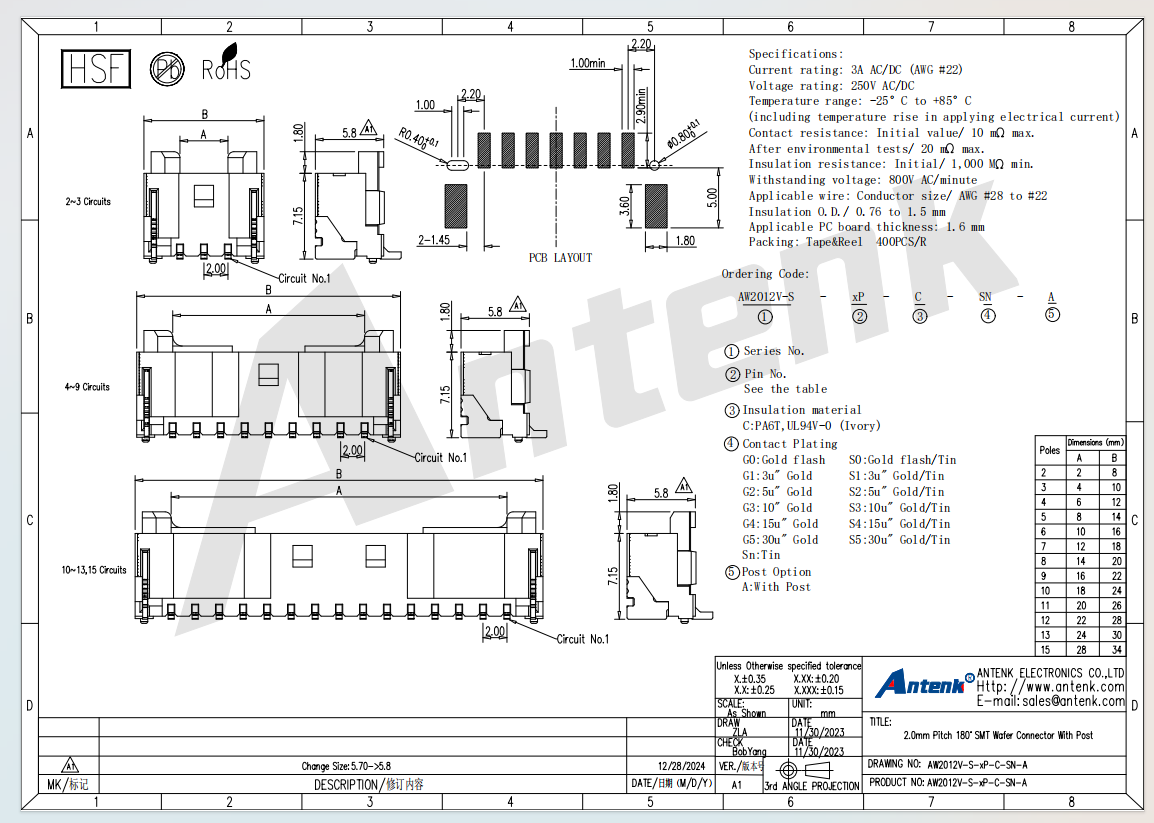

Product Drawing：
