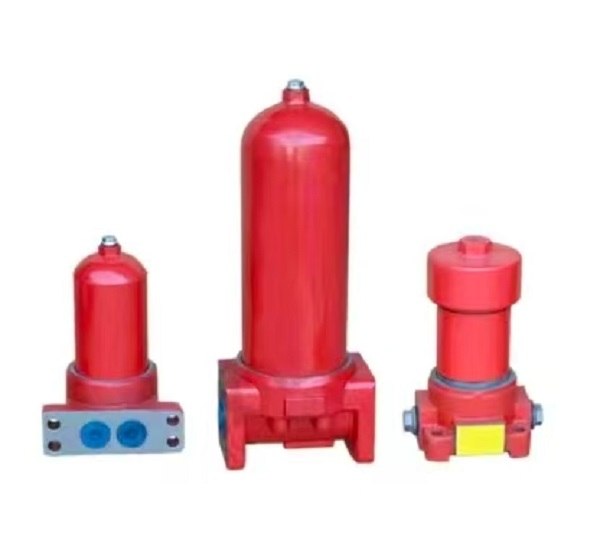

ZU-H QU-H High Pressure Line Filter

Product Overview

ZU-H QU-H High Pressure Line Filter is a heavy-duty inline FILTER, installed on the pressure pipeline of the hydraulic system. This robust FILTER is designed to trap solid contaminants, metal wear particles and impurities in pressurized hydraulic oil, protecting precision hydraulic components for all types of industrial and mobile Machine. It comes in ZU-H and QU-H two types with thread or flange connection options, widely used for high-pressure hydraulic circuits to reduce component wear and extend the service life of the whole hydraulic system.

Technical Specifications

- Series: ZU-H / QU-H High Pressure Line FILTER

- Nominal working pressure: 32 MPa

- Rated flow range: 10 ~ 800 L/min

- Filtration accuracy: 1μm,3μm,5μm,10μm,20μm,30μm optional

- Filter media: High-efficiency glass fiber or filter paper

- Alarm setting: Differential pressure indicator triggers signal at 0.35MPa

- Connection type: Thread connection, flange connection

- Working medium: Mineral hydraulic oil, phosphate ester fluid, water-glycol

- Operating temperature: -10℃ ~ +110℃

Working Principle

As a key FILTER mounted on the pressure side of the hydraulic system, pressurized hydraulic oil flows into the filter housing and passes through the internal filter element. Solid particles are intercepted by filter media to purify hydraulic oil. When the filter element accumulates dirt and the pressure difference reaches 0.35MPa, the differential pressure indicator sends an alarm signal to remind operators to replace the element. It effectively prevents oil contamination damage to pumps, valves and actuators of the Machine.

Core Advantages

1. High pressure resistant housing, stable performance under 32MPa working condition for heavy-duty Machine.

2. Multiple flow and precision options, flexible thread/flange connection to match different hydraulic system.

3. Built-in differential pressure alarm indicator, real-time monitoring the clogging status of this FILTER.

4. Large dirt holding capacity, low initial pressure drop, reliable long-time continuous operation.

5. Convenient element replacement, no need to remove the whole filter body from pipeline, save maintenance time.

Application Range

This ZU-H QU-H FILTER is widely applied in the hydraulic system of metallurgical equipment, mining machinery, injection molding machines, construction machinery and other heavy-duty Machine. It is commonly installed on pressure pipelines of hydraulic power units, serving as protection for hydraulic pumps, hydraulic motors and control valves.
