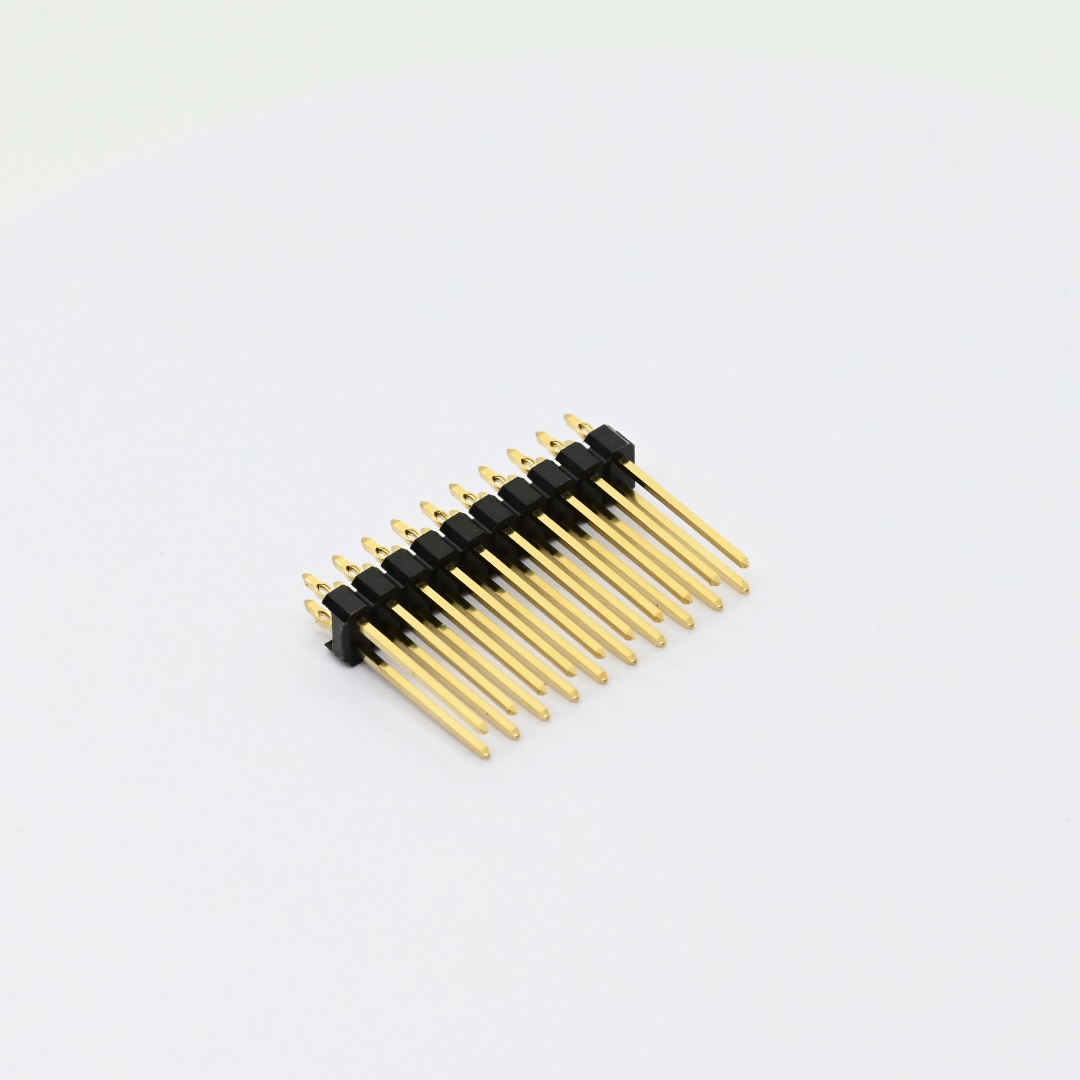

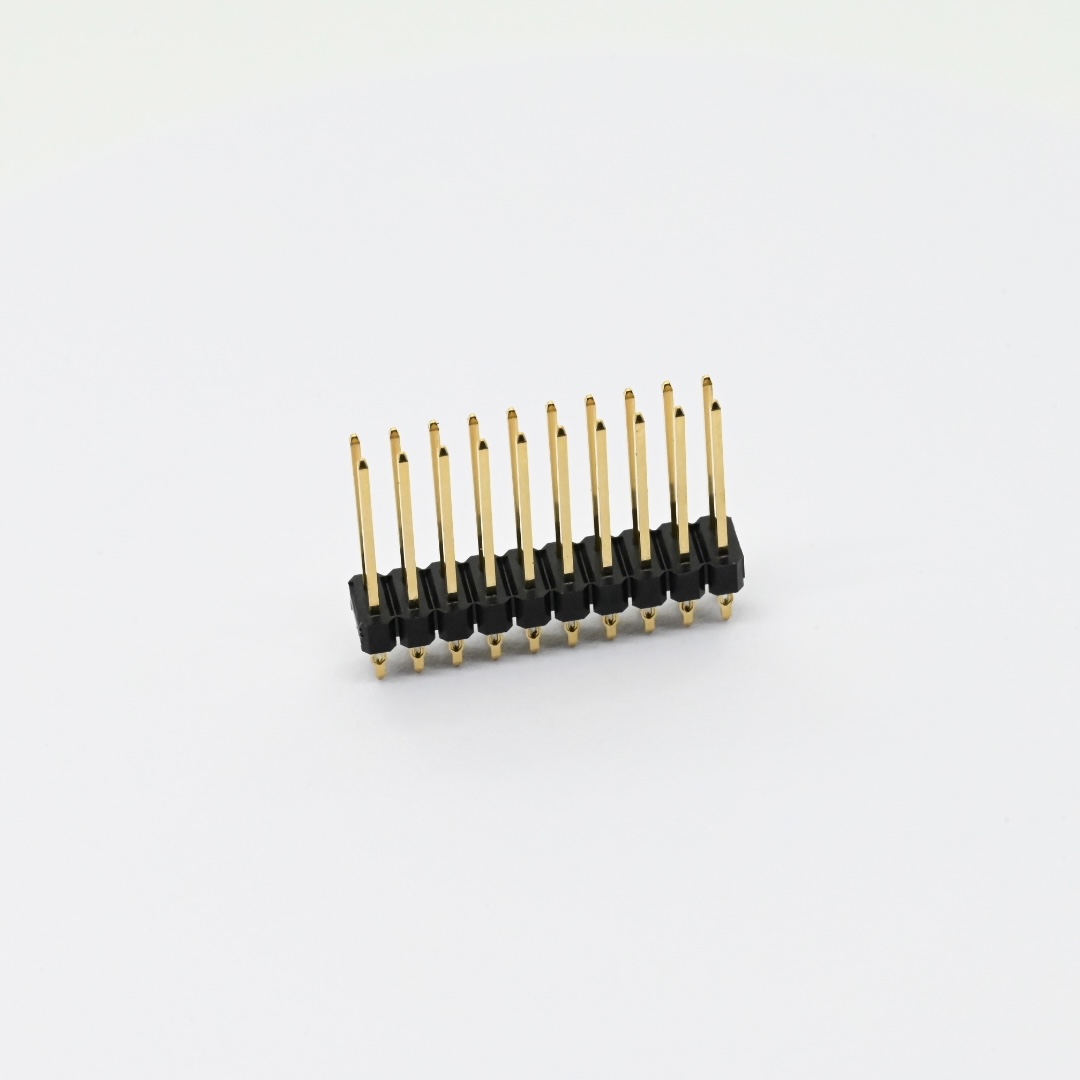

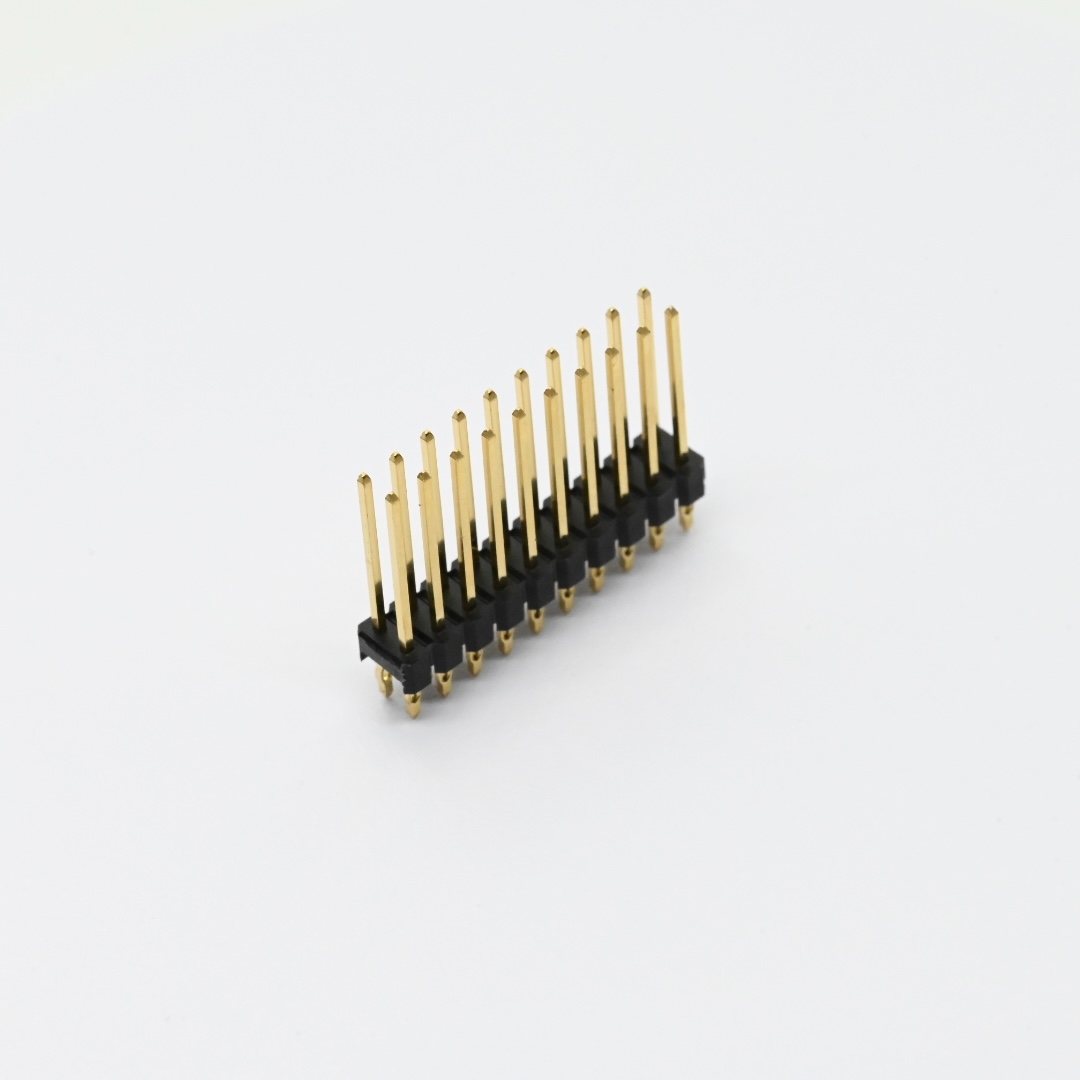

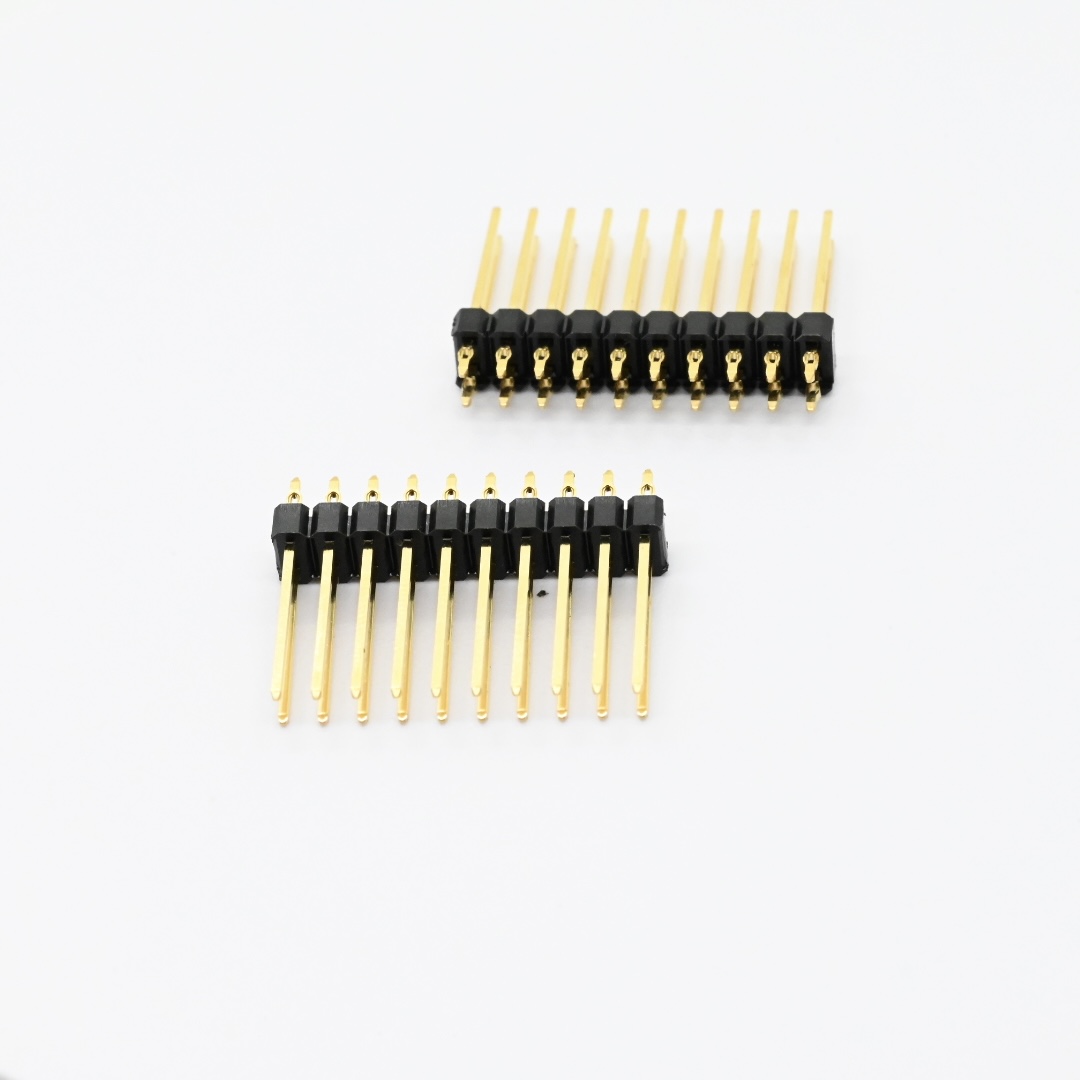

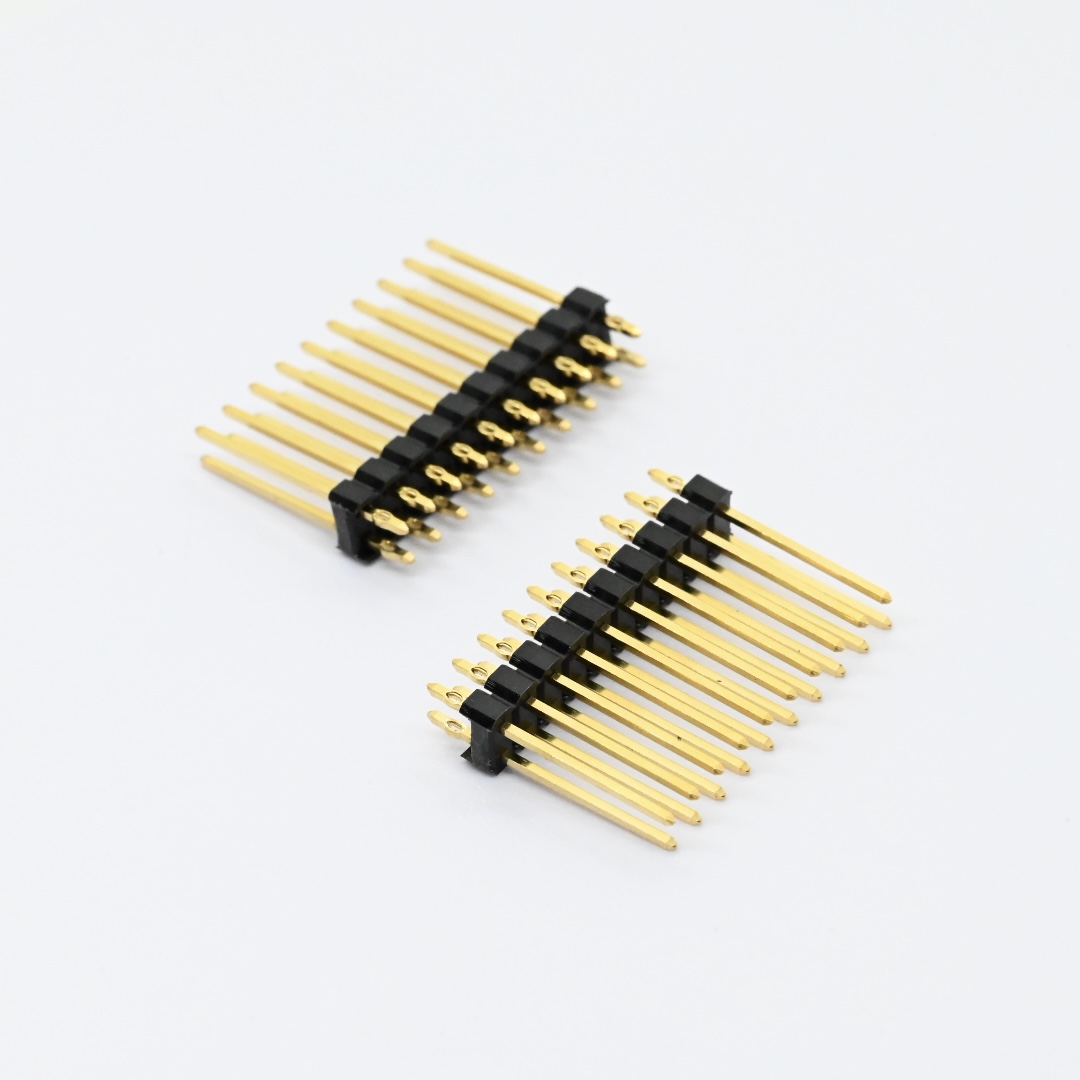

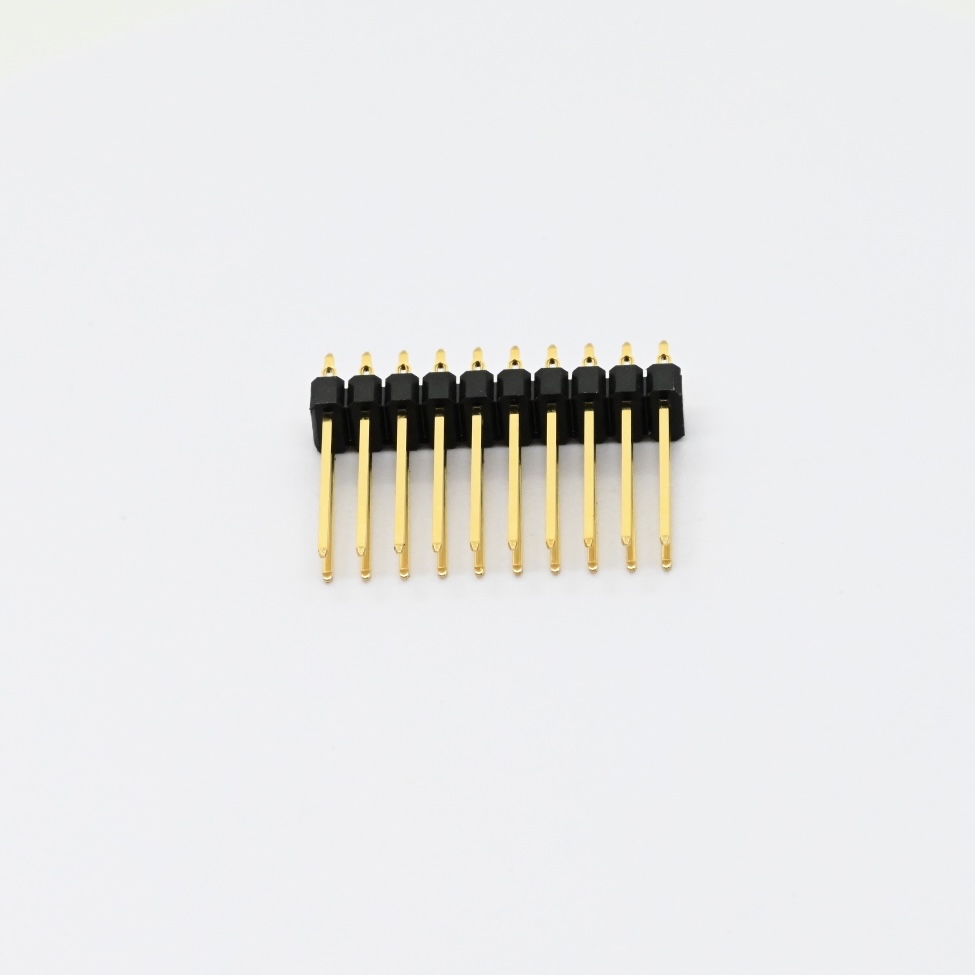

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures 2.54 millimeter straight dual row press fit pin header to achieve stable board to board power and signal interconnection for various electronic equipment. This vertical male header supports press fit assembly method, insulator material can select PBT PA6T LCP PA46 or PA9T with UL94 V zero flame retardant standard, brass contact pins, rated current reaches three amp, maximum contact resistance twenty milliohm and minimum insulation resistance one thousand megaohms, dielectric withstand voltage is five hundred volt alternating current, operating temperature ranges from minus forty degree to plus one hundred five degree. It covers contact positions from one up to forty positions, multiple pin length options are available together with rich contact plating selections, packing modes include tray bag tube and tape and reel. Users press pins into printed circuit board plated holes to realize stable mechanical and electrical connection without soldering process. Operators shall prevent pin deformation and plastic housing damage in handling and keep dry storage environment to avoid brass terminal oxidation. Unlike competitors buying outsourced components Antenk completes full in house workflow including brass stamping plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. Please share your pole count pin length plating packing and project requirements for free sample evaluation and full technical document support.

1. Solderless Press‑Fit Header creates reliable mechanical and electrical connection without traditional soldering operations on printed circuit boards.

2. Multi Material Pin Header provides diverse insulator material choices to satisfy different temperature and structural requirements of electronic projects.

3. Custom Pin Length Header supports varied pin dimension options to match different printed circuit board stacking and assembly conditions.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: Straight dual row press fit pin header

1.2 Measurement unit: millimeter

1.3 Key dimension: Pitch 2.54 mm. Contact positions range from 1 to 40 positions. Multiple pin length options including 5.20 mm and 3.30 mm. Multiple insulator height options of 2.54 mm, 2.00 mm and 1.50 mm. Recommended PCB thickness is 1.6 mm. Full PCB layout reference is provided in technical drawing.

1.4 Assembly method: Press fit mounting into PCB plated through holes without soldering

1.5 Ordering feature: Multiple insulator material selections, rich contact plating options, various packing forms such as tray bag tube tube with cap tape and reel and tape and reel with cap are available.

1.6 CTA: Contact our engineering team to obtain complete dimension drawings and ordering specification for your hardware design validation.

2. Material Construction

2.1 Insulator: Optional PBT PA6T LCP PA46 or PA9T, UL94 V‑0 flame retardant rating

2.2 Contact pin: Brass material, supports diverse gold selective gold and tin plating finishes

3. Electrical & Performance Parameters

3.1 Rated current: 3 Amp

3.2 Contact resistance: Max 20 milliohm

3.3 Insulation resistance: Minimum 1000 megaohms

3.4 Dielectric Withstanding Voltage: 500V alternating current

3.5 Operating temperature range: ‑40℃ to +105℃

4. Usage Method

4.1 Assembly mode: Press brass pins into pre plated holes of printed circuit board to achieve connection without soldering

4.2 Operation tip: Select appropriate pole count pin length insulator height material plating and packing according to actual project requirements.

5. Application Scenarios

5.1 Board to board power and signal interconnection for industrial control equipment

5.2 Internal circuit connection of consumer electronic devices

5.3 Circuit assembly for digital household appliances

5.4 Signal connection for precision instrument hardware

6. Operation & Storage Precautions

6.1 Follow drawing dimension tolerance and recommended PCB layout data during structural design

6.2 Avoid pin bending and plastic insulator damage during handling and press fit installation

6.3 Protect plated contact surfaces from scratches and dirt before assembly

6.4 Keep products in dry storage environment to prevent oxidation of brass pins

6.5 Confirm pole count pin length insulator height material plating and packing requirements before placing purchase order

6.6 CTA: Submit your customized pole count pin length material plating and project information, we provide free sample evaluation and professional technical consultation services.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different types of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

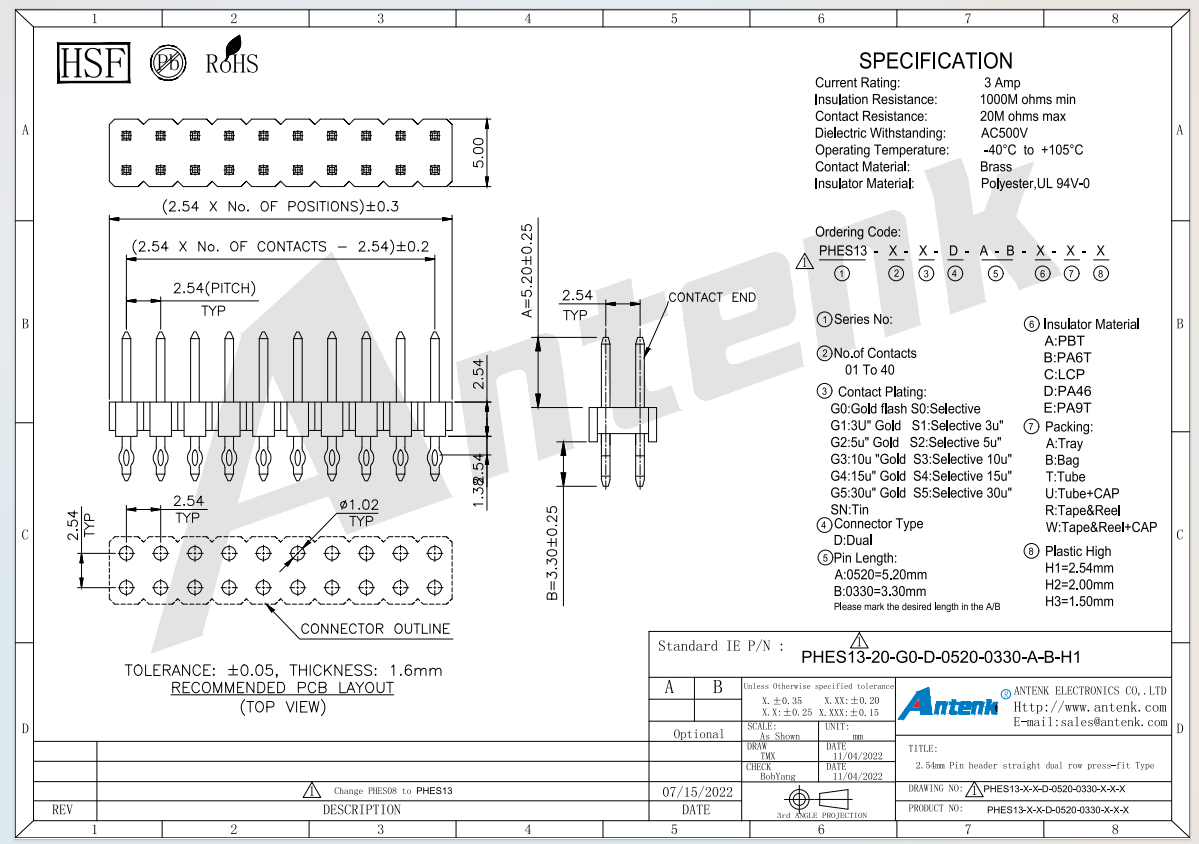

Product Drawing:
