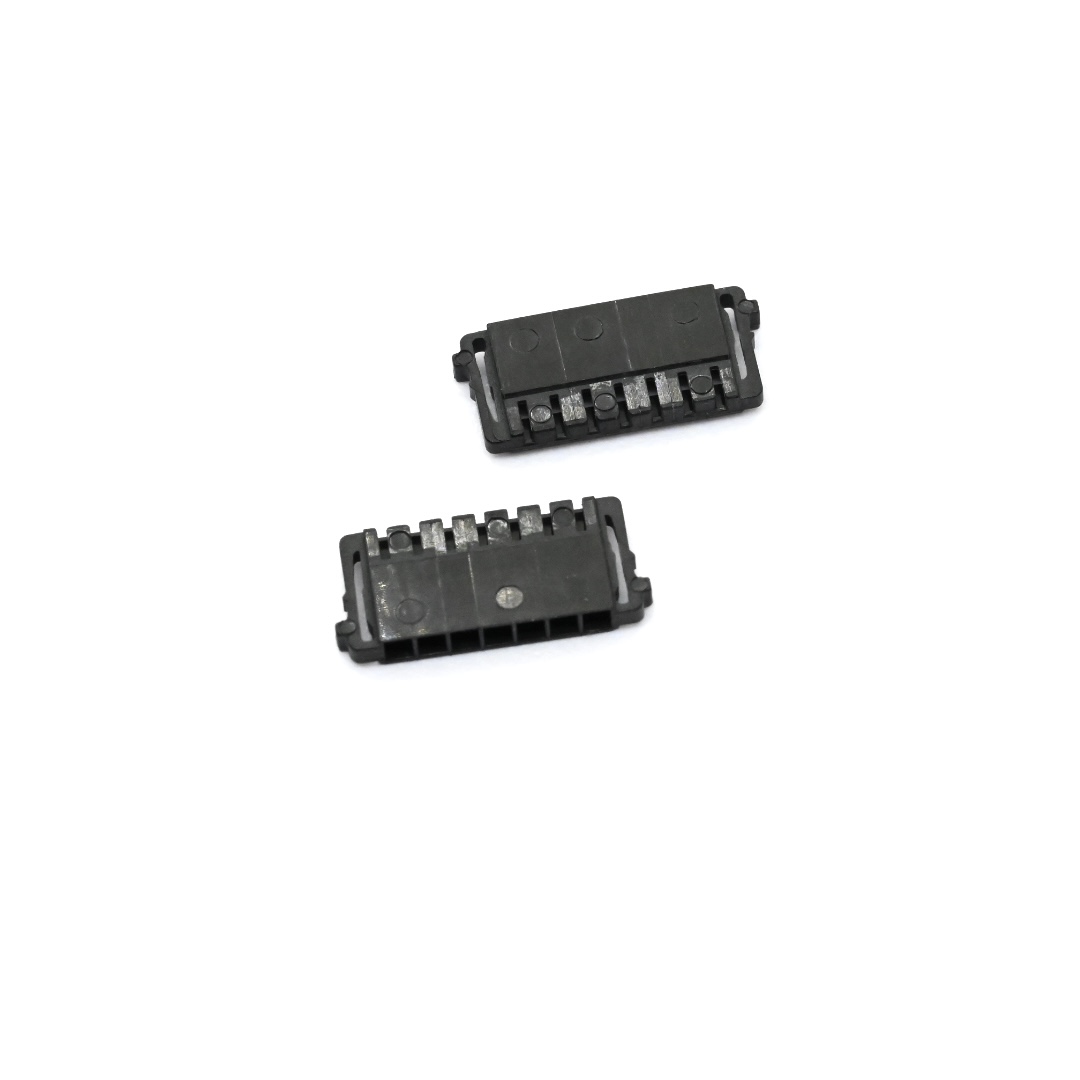

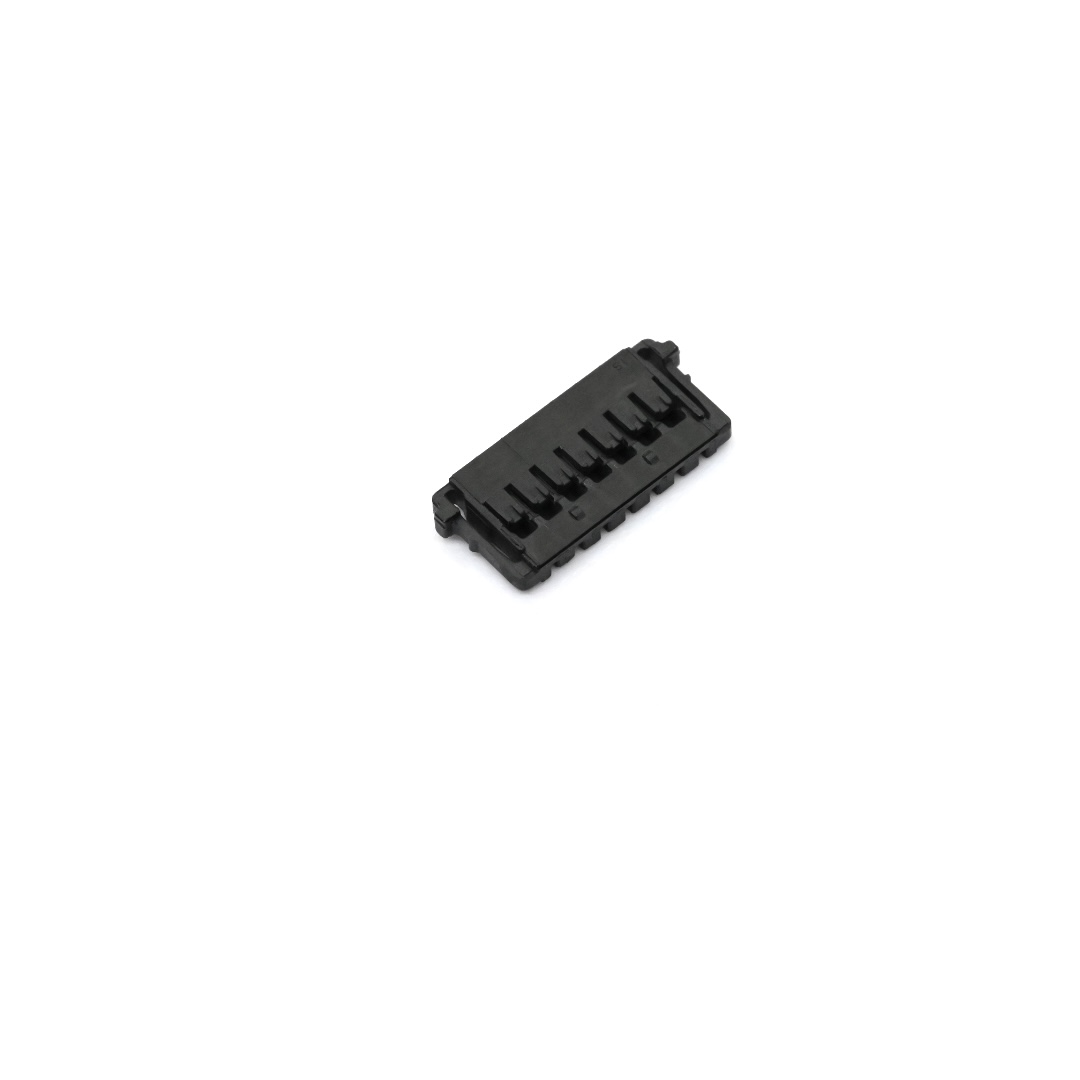

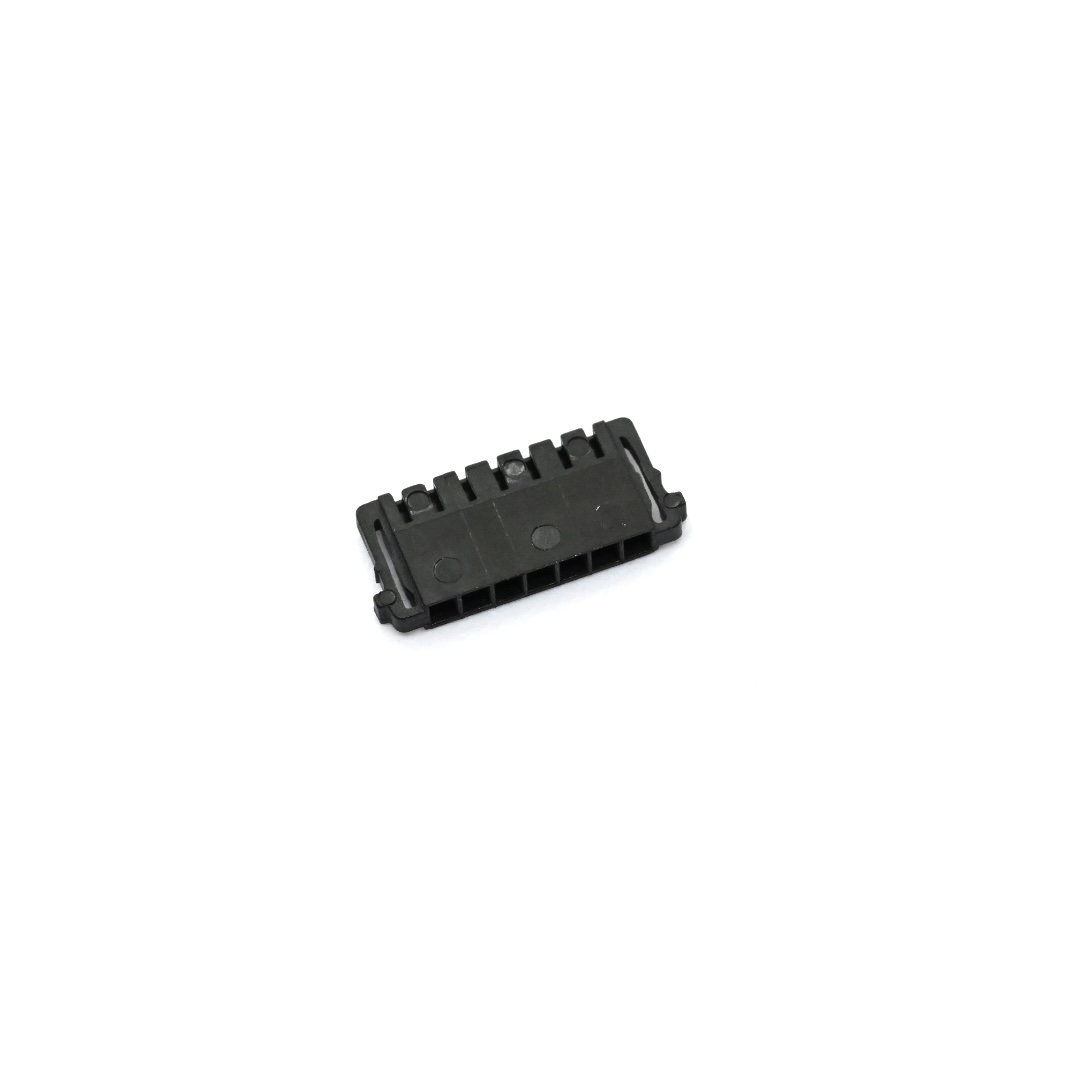

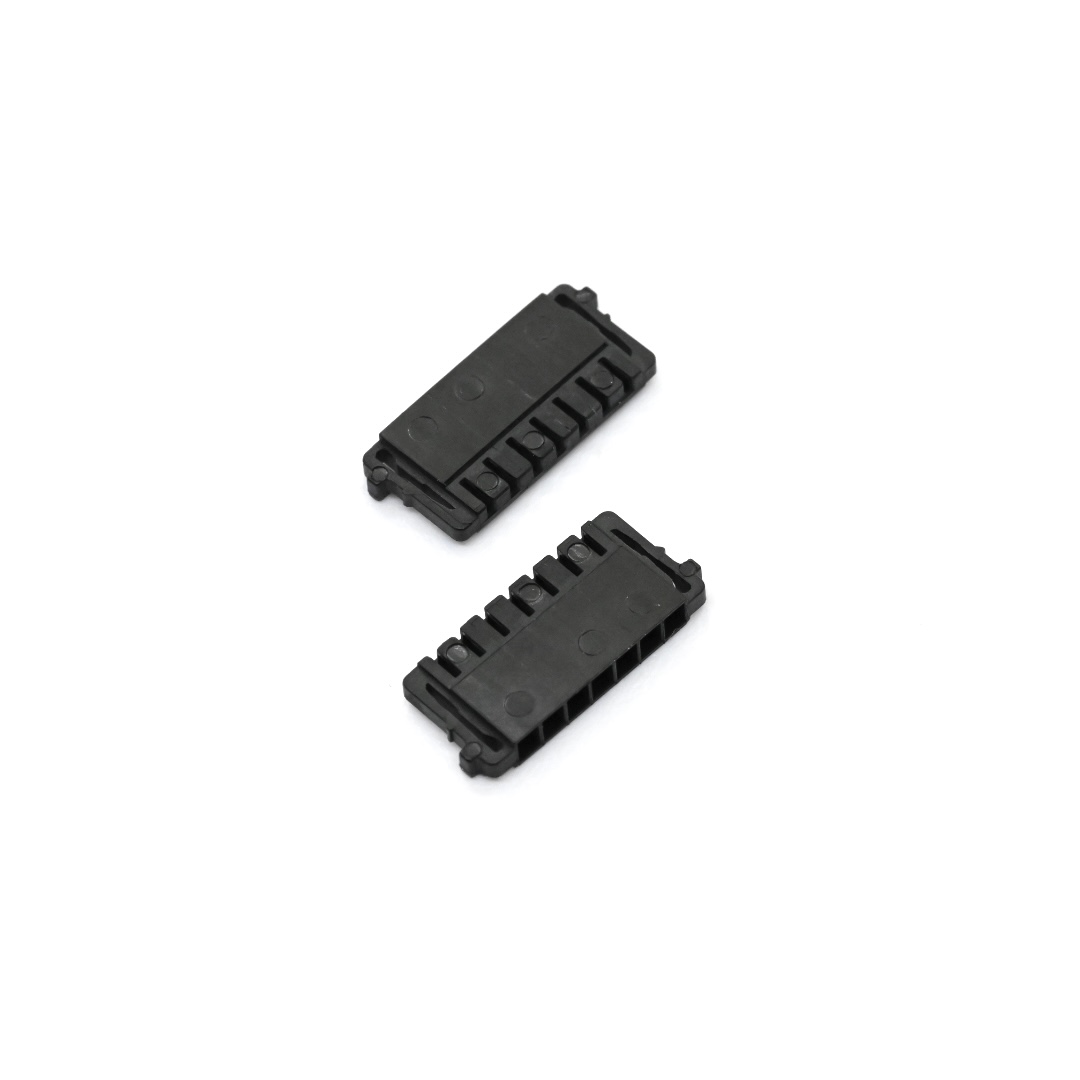

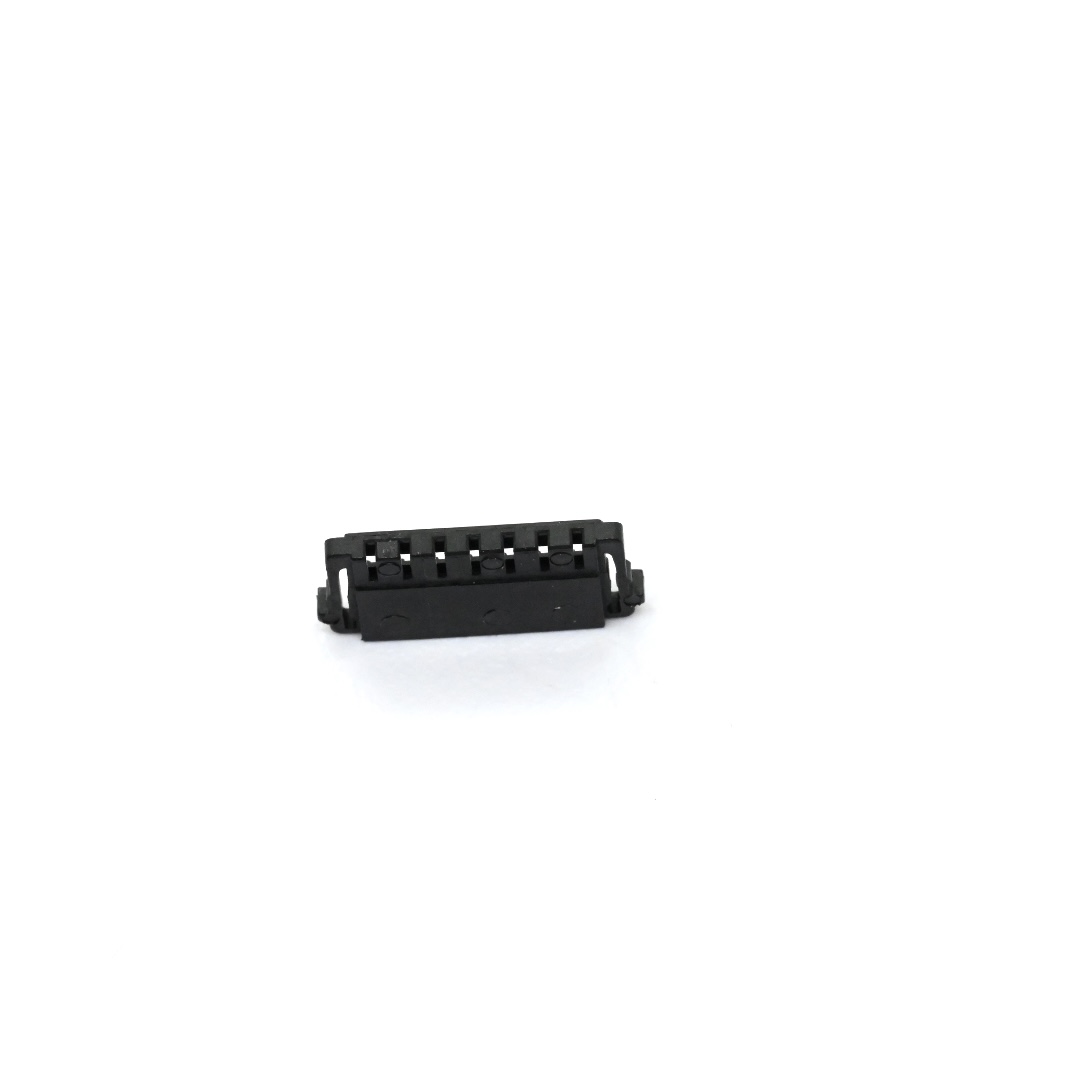

Product Description:

Huizhou Antenk Electronics Co., Ltd. manufactures 1.50 millimeter pitch wire to board connector housing to deliver reliable cable interconnection for compact electronic devices. This black PA66 plastic housing meets UL94 V zero flame retardant requirement and mates with AW1503R series wafer connectors, supports poles ranging from two up to twelve positions, rated current three amp alternating current direct current and rated voltage one hundred fifty volt alternating current direct current, contact resistance below twenty milliohm and insulation resistance above one thousand megaohm, dielectric withstand voltage reaches five hundred volt alternating current per minute, operating temperature ranges from minus twenty five degree to plus eighty five degree. Users crimp corresponding terminals into housing cavities and lock onto matching wafer header to finish stable wire to board connection. Operators shall avoid plastic shell crack and cavity damage during assembly and store goods under dry environment to prevent plastic aging. Unlike competitors purchasing outsourced components Antenk completes full in house workflow including plastic molding assembly and comprehensive laboratory performance testing. Our factory holds ISO9001 ISO14001 IATF16949 and UL certifications and more than seventy percent finished goods export worldwide. Please send your pole count and project requirements for free sample evaluation and full technical document support.

1. Black PA66 Connector Housing features UL94 V zero flame retardant performance for secure wire to board connection in electronic assemblies.

2. Compact Wire Housing Shell saves internal device space while offering stable cavity structure for crimped terminal installation.

3. Flame Retardant Connector Shell reduces fire risk and maintains reliable working performance under normal electronic equipment operating conditions.

Detailed Specifications:

1. Mechanical Specifications

1.1 Product type: 1.50 millimeter pitch wire to board connector housing

1.2 Measurement unit: millimeter

1.3 Key dimension: Pitch 1.50 mm. Contact poles range from 2 to 12 positions. This housing is designed to mate with AW1503R series wafer connectors. Dimension tolerances follow drawing requirements, complete dimension drawings are available for reference.

1.4 Assembly method: Load crimped terminals into housing cavities then plug onto matching wafer header to complete wire to board connection

1.5 Ordering feature: Standard black PA66 housing, customizable pole count from 2 poles up to 12 poles

1.6 CTA: Contact our engineering team to acquire full dimension drawings and ordering guide for your hardware design validation.

2. Material Construction

2.1 Housing material: PA66 plastic, UL94 V‑0 flame retardant grade, default color black

3. Electrical & Performance Parameters

3.1 Rated current: 3 Amp alternating current direct current

3.2 Rated voltage: 150 Volt alternating current direct current

3.3 Contact resistance: Maximum 20 milliohm

3.4 Insulation resistance: Minimum 1000 megaohm

3.5 Dielectric Withstanding Voltage: 500V alternating current per minute

3.6 Operating temperature range: ‑25℃ to +85℃

4. Usage Method

4.1 Assembly mode: Insert crimped terminals into corresponding housing cavities, then engage the housing with matched wafer header to achieve secure wire to board interconnection

4.2 Operation tip: Select proper pole quantity according to actual circuit design requirements and use compatible AW1503R series mating wafer connectors.

5. Application Scenarios

5.1 Wire to board signal and power connection for compact consumer electronic devices

5.2 Internal cable assembly for digital household appliances

5.3 Signal wiring for small industrial control modules

5.4 Internal circuit connection for precision miniature electronic hardware

6. Operation & Storage Precautions

6.1 Adhere to drawing dimension tolerances during product structural design

6.2 Avoid plastic housing cracking and cavity damage during terminal loading and mating operations

6.3 Prevent housing surface scratches and contamination before assembly

6.4 Keep products stored under dry environment to slow plastic material aging

6.5 Confirm pole number and mating part specification before placing purchase order

6.6 CTA: Submit your required pole number and project details, we provide free sample evaluation and professional technical consultation services.

FAQ

Q: How many packaging do you have?

A: We have five packages including PE bag, hand bag, zip lock bag, colorful box and white box currently.

Q: Can you do our own packaging?

A: Yes, you just provide the package design and we will produce what you want. We also have the professional designer can help you do the packaging design.

Q: How many different ty pes of products your company manufactures?

A: Now we have more than 1,000 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.

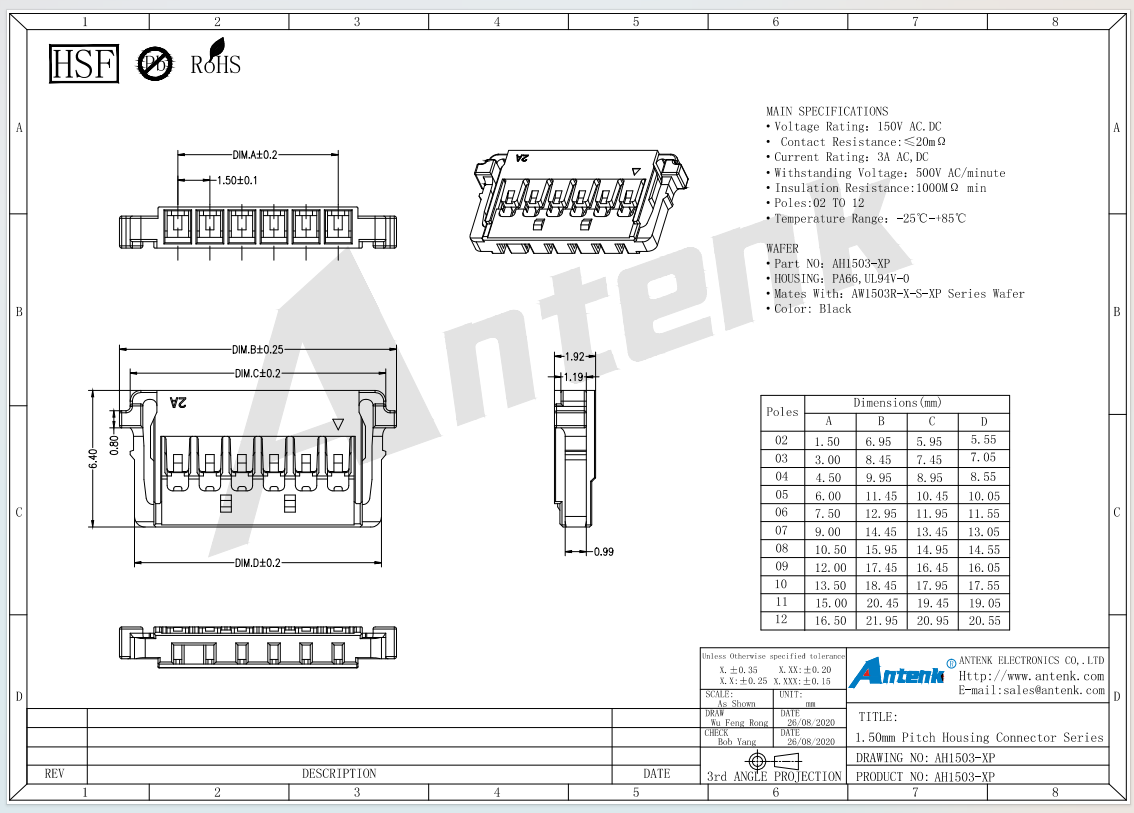

Product Drawing:
