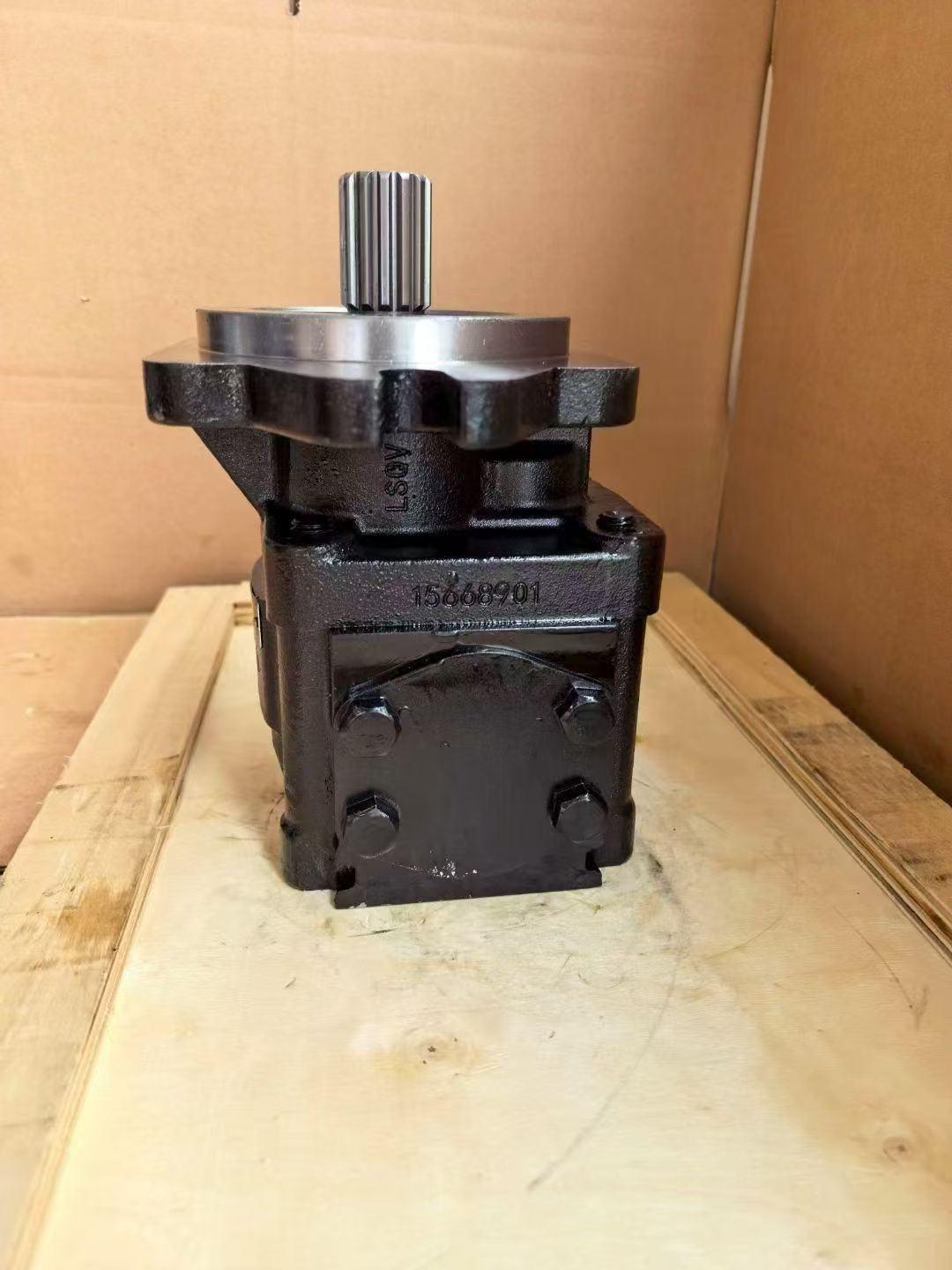

KP30.51D0‑06S8‑LME/OF‑N‑CSC Hydraulic gear pump

Product Overview

KP30.51D0‑06S8‑LME/OF‑N‑CSC is a heavy‑duty external Gear pump from CASAPPA KP30 Kappa‑30 series. It serves as the core power source for the hydraulic system of mobile construction Machine. Featuring high‑strength cast‑iron housing and axial pressure compensation design, this pump delivers stable high‑pressure oil flow with high volumetric efficiency, suitable for continuous heavy‑load working conditions. The CSC compact housing, 14‑tooth splined shaft and SAE flange mounting are specially configured for original equipment replacement on various mobile hydraulic Machine.

Technical Specifications

- Model: KP30.51D0‑06S8‑LME/OF‑N‑CSC

- Brand: CASAPPA

- Type: External high‑pressure Gear pump

- Displacement: 51.83 cc/rev

- Max continuous working pressure: 230 bar (3335 psi)

- Max intermittent pressure: 250 bar (3625 psi)

- Max peak pressure: 270 bar (3915 psi)

- Speed range: 350‑2500 rpm

- Theoretical flow @1500rpm: 77.7 L/min

- Shaft: 14‑tooth splined shaft (CSC type), clockwise rotation

- Mounting: SAE standard flange, compact CSC housing

- Working medium: ISO VG32‑VG68 mineral hydraulic oil

- Operating temperature: ‑20℃ ~ +80℃

- Approx weight: 21 kg

Working Principle

As the power unit of the hydraulic system, this Gear pump draws hydraulic oil from the reservoir through the suction port. The meshing external gear pair transports fluid, converting mechanical rotational energy into hydraulic pressure energy. The built‑in axial pressure‑compensation structure minimizes internal leakage under high pressure, maintaining stable flow output to drive hydraulic actuators of the Machine. It is widely adopted in open‑circuit hydraulic circuits for mobile equipment.

Core Advantages

1. Cast‑iron heavy‑duty housing with axial clearance compensation, low internal leakage, high volumetric efficiency under high‑pressure operation.

2. CSC compact housing design, SAE flange and 14‑tooth splined shaft, direct‑fit replacement for original equipment without modification.

3. Good resistance to pressure peaks and vibration, reliable performance for harsh construction‑site working conditions.

4. Wide speed range, stable performance from low‑speed to high‑speed operation of the Machine.

5. High‑precision gear pair, low noise, long service life under continuous heavy‑duty work of the hydraulic system.

Application Scope

This CASAPPA Gear pump is widely applied in the hydraulic system of wheel loaders, skid‑steer loaders, backhoe loaders, excavators and other mobile construction Machine. It is commonly used as main hydraulic power pump for open‑circuit hydraulic power supply of mobile engineering equipment.
