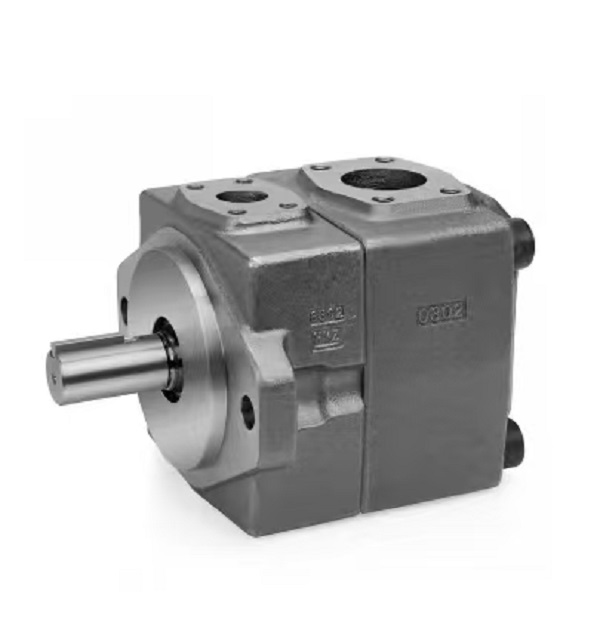

PV2R Series Vane Pump

Product Overview

PV2R Series Vane Pump is a high‑performance fixed‑displacement Hydraulic Vane pump, widely adopted as a core hydraulic pump to provide stable power output for the hydraulic system of various industrial Machine . This hydraulic pump features low‑noise operation, compact mechanical layout and reliable volumetric efficiency. It delivers steady oil flow to drive actuators inside the hydraulic system, guaranteeing smooth and consistent movement for the whole Machine. Available in single pump and double pump configurations, it supports multiple displacement options and is also a popular drop‑in replacement for original equipment assemblies[(Yuken Euro...)].

Technical Specifications

- Model Series: PV2R1, PV2R2, PV2R3, PV2R4 (single pump); PV2R12, PV2R13, PV2R23 (double pump)

- Product Type: Fixed displacement Hydraulic Vane pump

- Displacement Range: 5.8‑237 cm³/rev

- Max Working Pressure: 21 MPa

- Rated Speed: 600‑1800 rpm

- Working Medium: Anti‑wear hydraulic mineral oil

- Structure: Modular cartridge kit design, convenient for on‑site maintenance

- Installation: Flange‑mount or foot‑mount for different Machine

- Function: Power source for complete hydraulic system circuits

Working Principle

As a key hydraulic pump, the Hydraulic Vane pump PV2R transfers mechanical rotational power into hydraulic energy. Rotor‑driven vanes slide inside the cam ring, forming variable sealed chambers. Oil is sucked in through the inlet port, pressurized, and delivered outward to the hydraulic system. The dual‑pump variant supplies independent flow for two separate loops within one Machine. The cartridge‑type internal assembly keeps stable pumping performance and reduces downtime during component overhaul .

Core Advantages

1. Optimized internal structure, running with notably low noise; well‑suited for indoor‑working Machine.

2. High volumetric efficiency, stable output flow, maintaining reliable performance of the complete hydraulic system.

3. Modular cartridge‑kit construction, quick disassembly for inspection and part replacement, cutting maintenance cost of the hydraulic pump.

4. Comprehensive displacement selections; single‑pump and tandem double‑pump versions meet diversified power‑demand for different Machine.

5. Standard mounting dimensions, good interchangeability, convenient for retrofitting and original‑part substitution inside existing hydraulic system .

Application Scope

PV2R Hydraulic Vane pump serves as a main hydraulic pump for injection molding machines, machine‑tools, press equipment, metallurgical machinery and other industrial Machine. It constitutes the power unit of the hydraulic system, and also fits some light‑duty processing and automation equipment. Widely deployed in plastic factories, metal‑working workshops and general industrial production lines .
