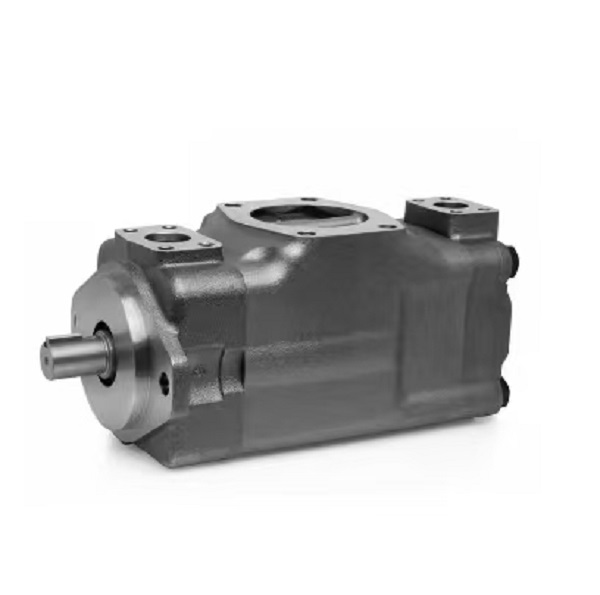

VQ Series Vane Pump

Product Overview

VQ Series Vane Pump is a high‑pressure fixed‑displacement Hydraulic Vane pump. As a vital hydraulic pump, it delivers stable high‑pressure oil flow for the hydraulic system of heavy‑duty industrial Machine. This hydraulic pump adopts optimized vane‑cam structure, featuring high volumetric efficiency, low noise and strong pressure‑resistance capacity. It maintains consistent power output under heavy working load, ensuring reliable operation of the whole hydraulic system. Single pump, double pump and triple pump versions are available, widely used for original equipment matching and aftermarket spare‑part replacement for various Machine.

Technical Specifications

- Model Series: VQ15, VQ25, VQ35, VQ45; tandem VQ21, VQ31, VQ32

- Product Type: Fixed‑displacement Hydraulic Vane pump

- Displacement Range: 21‑194 cm³/rev

- Rated Working Pressure: 21 MPa

- Operating Speed: 600‑2400 rpm

- Working Medium: Anti‑wear hydraulic mineral oil

- Structure: Cartridge insert design for easy overhaul

- Mounting: Flange‑mount, foot‑mount to suit different Machine

- Main Function: Power source for complete hydraulic system

Working Principle

As a classic Hydraulic Vane pump, the VQ series hydraulic pump converts mechanical rotary energy into hydraulic power. The rotor drives vanes sliding against the cam ring, forming sealed variable chambers. Hydraulic oil is sucked in, compressed and discharged with stable pressure into the hydraulic system. Tandem combined pumps can supply independent flow for multiple loops of one Machine. The replaceable cartridge assembly keeps long‑term working stability and simplifies maintenance when performance declines.

Core Advantages

1. Reinforced internal components, withstand higher system pressure, well‑adapted to heavy‑load working conditions of industrial Machine.

2. Excellent volumetric efficiency, steady flow output, effectively guaranteeing working performance of the hydraulic system.

3. Low‑noise running design, reduces equipment noise pollution in production workshops.

4. Cartridge‑type insert structure; quick replacement of internal components, greatly cutting maintenance downtime of the hydraulic pump.

5. Rich combination selections: single, double and triple pump configurations, meeting multi‑loop power requirements of complex Machine.

6. Standard installation and port dimensions, high interchangeability, convenient for retrofitting existing hydraulic system.

Application Scope

VQ series Hydraulic Vane pump serves as the main hydraulic pump for injection molding machines, metal stamping presses, metallurgical equipment, forging machinery and other heavy‑duty industrial Machine. It provides high‑pressure power source for the hydraulic system. Widely deployed in plastic processing plants, metal‑forming workshops, hydraulic stations and heavy‑industry production lines.
