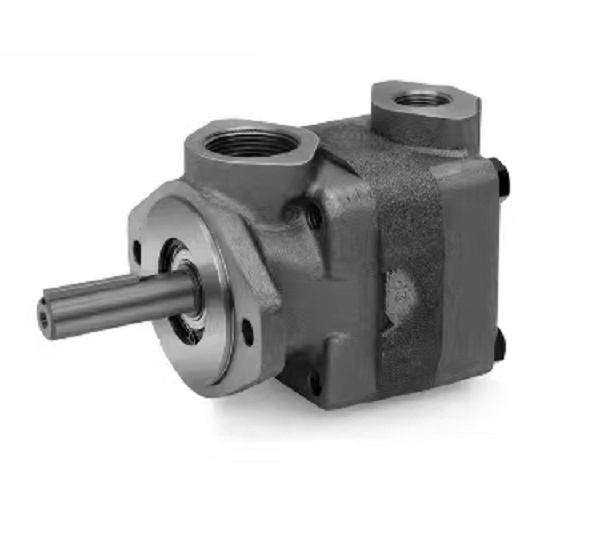

V10、V20 Series Vane Pump

Product Overview

V10, V20 Series Vane Pump is a reliable fixed‑displacement Hydraulic Vane pump. As a classic hydraulic pump, it provides steady pressure and flow for the hydraulic system of light‑to‑medium‑duty industrial Machine. This compact hydraulic pump features simple internal construction, low noise and good anti‑wear performance. It ensures stable power output for the hydraulic system, and is widely used for OEM assembly and aftermarket spare‑part replacement of various Machine.

Technical Specifications

- Model Series: V10, V20

- Product Type: Fixed‑displacement Hydraulic Vane pump

- Displacement Range: 5‑42 cm³/rev

- Rated Working Pressure: 17.2 MPa

- Operating Speed: 600‑2800 rpm

- Working Medium: Anti‑wear mineral hydraulic oil

- Structure: Cartridge insert assembly for easy service

- Mounting: Flange‑mount design, easy to install on different Machine

- Main Function: Power supply for complete hydraulic system

Working Principle

As a mature Hydraulic Vane pump, this hydraulic pump transforms mechanical rotational energy into hydraulic energy. The rotor drives vanes sliding along the cam ring, forming sealed oil chambers. Hydraulic oil is sucked in, pressurized and discharged into the hydraulic system to drive cylinders and actuators of the Machine. Thanks to the balanced vane structure, radial force is reduced, lowering internal friction. The replaceable cartridge kit allows quick overhaul without full pump disassembly, keeping the hydraulic system running normally.

Core Advantages

1. Compact and lightweight body, perfect for Machine with limited installation space.

2. Balanced internal structure, small shaft load, low noise and long service life.

3. Stable volumetric efficiency, consistent oil delivery, safeguarding normal operation of the hydraulic system.

4. Cartridge‑type inner kit design; convenient inspection and parts replacement, reducing maintenance cost of the hydraulic pump.

5. Standard port and mounting dimensions, strong interchangeability for old‑unit replacement on existing Machine.

6. Simple structure, high operational stability, low failure rate for general‑purpose working conditions.

Application Scope

V10, V20 series Hydraulic Vane pump serves as the main hydraulic pump for machine tools, small presses, material‑handling equipment, packaging machinery and other light‑medium‑duty industrial Machine. It provides power source for the hydraulic system. Commonly applied in machinery workshops, automated production lines, small hydraulic power units and general industrial processing equipment.
