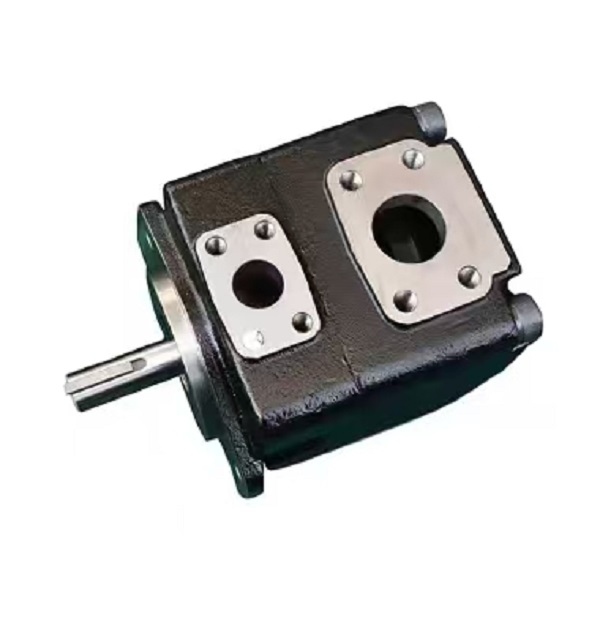

T6/T67/T7 Vane Pump

Product Overview

T6/T67/T7 Vane Pump is a high‑pressure fixed‑displacement Hydraulic Vane pump. As a premium‑grade hydraulic pump, it delivers stable high‑pressure oil flow for the hydraulic system of heavy‑duty industrial Machine. This hydraulic pump adopts pin‑type vane construction, featuring high volumetric efficiency, low noise and outstanding pressure‑bearing capability. Single, double and triple‑tandem pump combinations are available to satisfy multi‑circuit power requirements. It guarantees stable, long‑term operation of the whole hydraulic system, widely applied for OEM matching and aftermarket component replacement of various heavy‑duty Machine.

Technical Specifications

- Model Series: T6, T67, T7; single‑pump, double‑pump, triple‑pump combined types

- Product Type: Fixed‑displacement Hydraulic Vane pump

- Displacement Range:5‑269 cm³/rev

- Max Working Pressure: up to 32 MPa[(DENISON Hy...)]

- Rotational Speed:600‑3600 rpm

- Working Medium: Anti‑wear mineral hydraulic oil

- Structure: Replaceable cartridge vane kit, pin‑supported vane design

- Mounting: Standard flange mounting; spline or straight‑key shaft options

- Main Function: Core power source for complete hydraulic system

Working Principle

The Hydraulic Vane pump T6/T67/T7 converts mechanical rotary energy into hydraulic power. The pin‑supported vanes closely cling to the cam ring, forming sealed variable oil chambers. Oil is sucked into pump cavity, compressed and delivered with steady pressure into the hydraulic system to drive cylinders and actuators of the Machine. Tandem combined hydraulic pump provides independent flow for multiple hydraulic loops on one equipment. The balanced internal structure greatly reduces radial shaft load and internal abrasion. The whole cartridge assembly can be replaced directly without complete pump disassembly to restore performance of the hydraulic system.

Core Advantages

1. Advanced pin‑vane structure, excellent pressure resistance, suited for heavy‑load working conditions of industrial Machine.

2. High volumetric efficiency, stable flow output, reliably sustaining overall performance of the hydraulic system.

3. Optimized internal profile, low‑noise smooth operation, ideal for indoor workshop‑operated Machine.

4. Modular interchangeable cartridge kit, simple inspection and maintenance, cutting downtime of the hydraulic pump.

5. Rich combination selections of single, double and triple pumps, flexible power distribution for complex multi‑loop hydraulic system.

6. Standard mounting and port dimensions, high interchangeability, convenient for retrofitting existing Machine.

Application Scope

T6/T67/T7 series Hydraulic Vane pump acts as the main hydraulic pump for injection‑molding machinery, die‑casting machines, metallurgical presses, forging equipment, shipboard machinery and other heavy‑duty industrial Machine. It supplies high‑pressure power for the hydraulic system. Widely used in plastic processing plants, metal‑forming workshops, hydraulic power stations, port and marine equipment projects.
