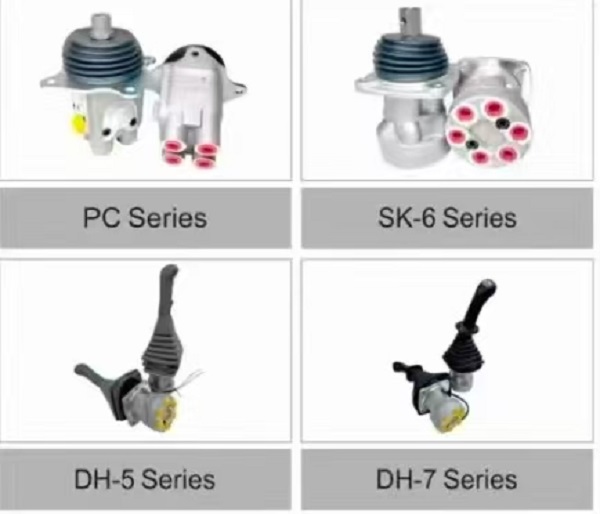

PC Series Joystick

Product Overview

PC Series Joystick is a high‑performance industrial proportional control joystick. As a core operating controller, it transmits operator movement commands to the hydraulic system of engineering Machine. This joystick adopts modular mechanical‑electronic integrated structure, delivering precise proportional signal output. It supports single‑axis and dual‑axis operation, optional auxiliary push‑buttons and trigger switches. It accurately regulates direction and speed for actuators inside the hydraulic system, ensuring smooth, sensitive manipulation for the whole Machine. Widely applied for original equipment matching and aftermarket spare‑part replacement.

Technical Specifications

- Model Series: PC‑series industrial joystick

- Operation Axis: Single‑axis, dual‑axis optional

- Sensor Type: Potentiometer / Hall‑effect non‑contact sensor

- Output Signal: Analog voltage signal

- Reset Mode: Spring automatic center‑return

- Protection Grade: IP54‑IP65

- Mechanical Service Life: ≥ 1,000,000 operating cycles

- Working Temperature:‑40℃ ~ +85℃

- Optional Accessory: Multi‑function push‑buttons, trigger switches

- Application: Command input for the hydraulic system of heavy‑duty Machine

Working Principle

When the operator pushes the PC Series Joystick, internal transmission mechanism drives the sensor unit. Mechanical deflection is converted into continuous proportional electrical signals. These signals are delivered to controller or pilot valve, further driving the hydraulic system to adjust flow and pressure. The movement speed of Machine actuators changes according to joystick deflection angle. Built‑in return spring automatically resets the handle to neutral position upon release, cutting hydraulic output and stopping equipment action. Hall‑effect non‑contact version avoids mechanical brush wear and keeps long‑term signal stability of the hydraulic system.

Core Advantages

1. Ergonomic grip design, comfortable hand‑feel, reducing operator fatigue during long‑time running of Machine.

2. Two sensor options: potentiometer and contact‑free Hall‑effect; stable signal output for accurate control of the hydraulic system.

3. Automatic spring centering, clear neutral positioning, effectively preventing mis‑operation for the Machine.

4. Good dust‑proof and water‑proof performance, adaptable to harsh construction, mining and outdoor working conditions.

5. Modular assembly structure; buttons and shafts are configurable to satisfy diversified control logic of the hydraulic system.

6. Standard mounting hole layout, high interchangeability, easy disassembly and replacement, lowering maintenance cost of Machine.

Application Scope

PC Series Joystick serves as main operating controller for excavators, aerial work platforms, cranes, forklifts, agricultural machinery and other engineering Machine. It sends control instructions to the hydraulic system. Commonly used in construction sites, port terminals, mine workshops, agricultural operating fields and mobile equipment cabins.
