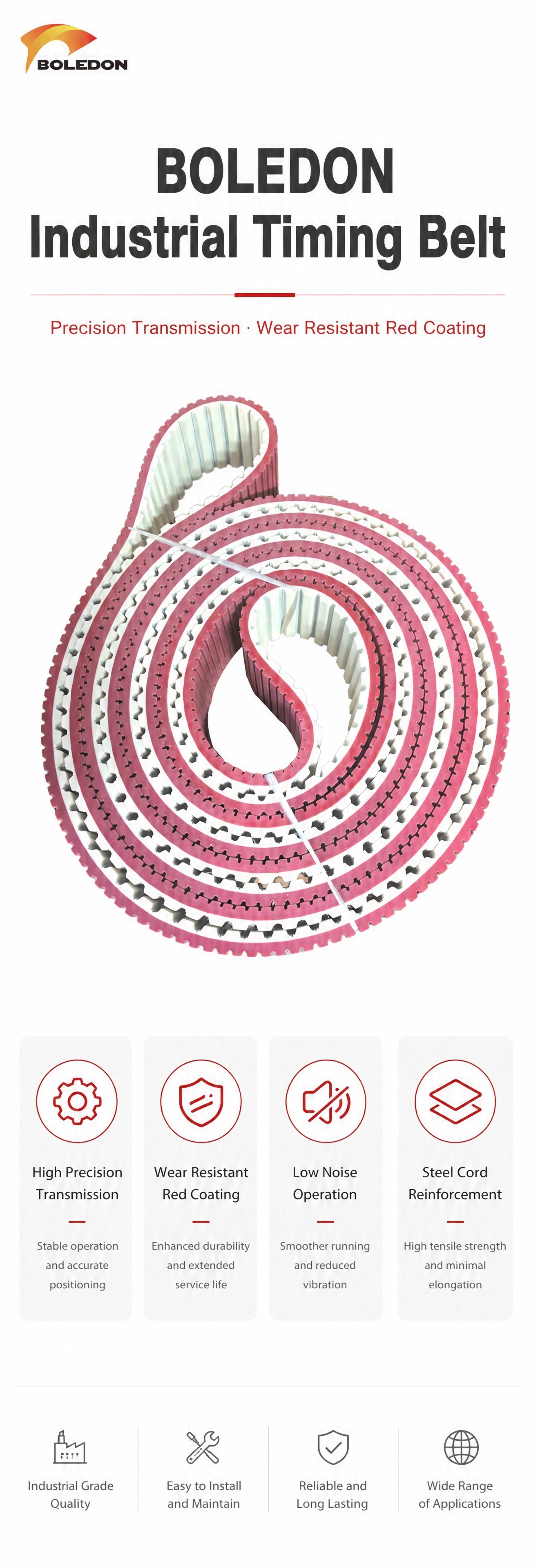

Our HTD5M PU Timing Belt with 12mm red rubber coating and slotting is a custom engineered member of PU Timing Belts and Rubber Timing Belts, designed to solve complicated traction and conveying challenges for automated manufacturing. As one of the high-performance Industrial Belts, this upgraded synchronous belt combines the precise positioning capacity of HTD curvilinear tooth profile with the unique advantages of slotted thick red rubber surface, bringing better material gripping and air dissipation than ordinary smooth coated timing belts.
The base body of this synchronous belt adopts premium thermoplastic polyurethane reinforced with embedded high-tensile steel cords. Compared with conventional rubber timing belts, PU Timing Belts maintain ultra-low elongation and stable tooth geometry under continuous cyclic movement, which guarantees consistent timing accuracy and avoids tooth skipping during long-hour operation. The outer layer features a 12mm thick specially formulated red rubber, securely hot-vulcanized and bonded onto the PU substrate. The most critical customization feature is the vertical slotting machined on the rubber surface. These evenly spaced slots serve two core purposes: first, they increase friction coefficient by forming micro grip edges to hold sheets, profiles and films firmly; second, the grooves discharge trapped air between belt surface and workpieces, eliminating vacuum adsorption issue that often causes material sticking, wrinkling or misalignment. Most standard Industrial Belts only offer plain rubber surface; our slotting processing makes this model stand out for high-speed traction applications. We support fully custom width, circumference and modification, such as adjusting slot depth, slot spacing, adding drilling or edge trimming to match customers’ machine drawings.
Many mechanical designers who purchase Rubber Timing Belts often encounter two tricky failures on traction stations. The first is vacuum suction: flat smooth rubber sticks tightly to thin materials, causing deformation and jamming. The second is heat accumulation: continuous friction raises surface temperature, accelerates rubber aging and shortens belt service life. Our slotted HTD5M synchronous belt addresses both problems perfectly. The slots break the full contact plane to release air, while creating more flexible contact edges. The HTD5M tooth profile meshes accurately with matching timing pulleys, so power transmission and feeding length remain synchronized without drifting. The red rubber formula balances wear resistance and softness; it grips rigid profiles without slipping and protects fragile surfaces from scratches. The bonding technology prevents delamination even under repeated impact and variable tension, a common defect found on low-cost coated PU Timing Belts.
A machinery manufacturer in Turkey builds automatic cutting equipment for thin aluminum extrusions. Their original setup used ordinary smooth Rubber Timing Belts. When pulling long aluminum profiles, air trapped between belt and metal surface created vacuum suction, leading to profile deviation during feeding. The cutting length tolerance exceeded the acceptable threshold, generating large volumes of scrap aluminum. After testing multiple Industrial Belts, they switched to our HTD5M PU Timing Belt with 12mm red rubber coating and slotting. The slot structure releases air instantly, removing vacuum adhesion. The thick red rubber provides strong friction to pull profiles steadily without surface marks, and the synchronous belt maintains precise feeding length. After 10 months of continuous operation, the cutting error was reduced dramatically. Scrap rate dropped from over 8% down to below 1.5%. The customer now specifies this slotted belt as standard spare part for all new extrusion pulling machines and places recurring bulk orders for after-sales maintenance.
A composite film producer from Poland operates high-speed laminating lines for multi-layer flexible packaging films. The machine requires PU Timing Belts to pull thin composite film through heating and pressing rollers. Smooth rubber coated belts caused film creases and local sticking because air could not escape quickly at high running speed. The production line frequently paused to clear wrinkled film, limiting daily output. Our HTD5M slotted synchronous belt solved this bottleneck. The vertical slots on the 12mm red rubber layer allow air to escape during contact, so the film lies flat while being pulled. The HTD tooth profile ensures the feeding speed matches lamination roller speed perfectly. The client reported stable lamination quality, fewer shutdowns, and raised daily production capacity. These Rubber Timing Belts became their primary selection for traction stations across all laminating production lines.
A ceramic processing factory in Vietnam uses automated squaring and chamfering machines for ceramic tiles. Feeding relies on Industrial Belts to push tiles toward cutting tools. Traditional timing belts either slipped under heavy tile weight or wore rapidly, resulting in inconsistent tile size and high reject rate. The factory tested our HTD5M PU Timing Belt with 12mm slotted red rubber. The slotted rubber surface delivers strong anti-slip grip for heavy ceramic tiles, while absorbing minor vibration during feeding. The robust PU base and steel cord reinforcement resist abrasion from ceramic dust. Thanks to reliable operation of this synchronous belt, tile positioning becomes stable, product consistency improved, and the replacement frequency of traction belts decreased significantly, lowering maintenance labor and spare part cost for the whole workshop.
Among all Industrial Belts, customized PU Timing Belts with slotted red rubber coating provide unique value for traction, pulling and conveying tasks. The HTD5M tooth profile delivers precise synchronous transmission. The 12mm thick red rubber brings high friction and cushioning protection for workpieces. The slotting design eliminates vacuum sticking and improves heat dissipation, solving pain points that plain Rubber Timing Belts cannot handle. We offer full customization of dimensions and surface processing, with strict quality inspection before shipment. If your automated equipment needs a heavy-duty synchronous belt for pulling profiles, films, ceramic or sheet materials, our HTD5M PU Timing Belt with 12mm red rubber coating and slotting will be your reliable transmission solution.
If you are interested in the product, contact 2bvideo.com for more information for more information
