4WRZ/4WRZE High-Flow Proportional Control Proportional Directional Valves

Product Overview

4WRZ/4WRZE High-Flow Proportional Control Proportional Directional Valves is a two-stage pilot operated Hydraulic valve, specially designed for high flow and high precision control. As a key control component of the hydraulic system, it can continuously adjust the flow rate and direction of hydraulic oil to accurately control the speed, position and force of the actuator on the Machine.

4WRZ model matches external amplifier, while 4WRZE is equipped with integrated on-board electronics (OBE). Plate mounting complies with ISO4401 standard, available in NG10, NG16, NG25, NG32 sizes. It adopts spring-centered main spool, optional manual override. Suitable for heavy-duty industrial hydraulic equipment requiring large flow output.

Technical Specifications

- Model: 4WRZ (external amplifier), 4WRZE (built-in integrated amplifier)

- Type: Pilot operated two-stage proportional directional Hydraulic valve

- Sizes: NG10 / NG16 / NG25 / NG32

- Max working pressure: 35 MPa

- Max flow rate: up to 1600 L/min

- Power supply: DC24V

- Spool: Spring centering, multiple spool symbols optional

- Mounting: Subplate mounting to ISO4401

- Medium: Anti-wear hydraulic oil

- Operating temperature: -20℃ ~ +80℃

- Solenoid: Detachable coil design, optional manual override

Working Principle

The controller sends analog signal to the proportional solenoid of this Hydraulic valve. The pilot stage converts electrical signal into pilot pressure to push the main spool. The displacement of main spool changes proportionally with input signal, so the opening size and oil flow direction of the valve port are adjusted. It realizes stepless regulation of speed and action direction for hydraulic cylinder or hydraulic motor on the Machine. When the control signal disappears, the centering spring pushes the main spool back to neutral position, cutting off the oil circuit of the hydraulic system.

Core Advantages

1. Two-stage pilot operated structure, capable of handling ultra-high flow, suitable for heavy load hydraulic system of large Machine.

2. 4WRZE integrated amplifier simplifies wiring, reduces signal interference; 4WRZ with external amplifier is flexible for customized control cabinet design.

3. High precision ground main spool, low internal leakage, excellent linearity and stable control performance.

4. Detachable solenoid coil and optional manual override, convenient for commissioning and maintenance.

5. Rigid valve body, strong pressure and vibration resistance, stable long-time continuous operation.

Application Range

This Hydraulic valve is widely used in heavy-duty hydraulic system of industrial Machine, including large hydraulic press, metallurgical equipment, marine machinery, material test bench, injection molding machine, woodworking machinery and automated production lines. It is used for precise motion control of large-bore hydraulic cylinders and high-torque hydraulic motors.

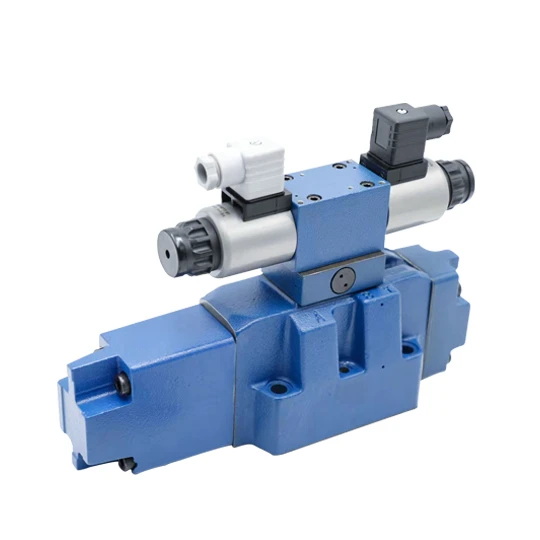

adiffer-4wrz-pilot-operated-high-flow-proportional-directional-valve-1
