EBG Electro-Hydraulic Proportional Relief Valve

Product Overview

EBG Electro-Hydraulic Proportional Relief Valve is a high-performance Hydraulic valve, adopting pilot-operated structure, widely used to control the pressure of hydraulic system. It adjusts the system pressure proportionally according to the input electric signal, realizing stepless remote pressure regulation for the Machine. This series is the Yuken proportional pressure control valve, including EBG-03, EBG-06, EBG-10 three main models, needs to match the dedicated proportional amplifier for normal operation .

Technical Specifications

- Main Models: EBG-03, EBG-06, EBG-10

- Max working pressure: 24.5 MPa

- Max flow rate: 100L/min (03), 200L/min (06), 400L/min (10)

- Minimum flow: 3 L/min

- Hysteresis ≤3%, Repeatability ≤1%

- Coil resistance: 10Ω

- Weight: approx.5.6kg~10kg

- Control signal: matched power amplifier, 4-20mA / 0-10V signal input

- Optional built-in safety valve for upper pressure limit protection

Working Principle

As a pilot type proportional Hydraulic valve, it consists of a small proportional pilot relief valve and low-noise main relief valve. The proportional solenoid receives the electric signal from amplifier and generates electromagnetic force proportional to the signal. The electromagnetic force pushes the pilot spool, changes pilot pressure, then controls the main spool opening. Excess hydraulic oil will overflow back to tank to maintain target pressure of the hydraulic system. The pressure setting can be changed remotely to adapt variable load requirements of the Machine.

Core Advantages

1. High control precision, low hysteresis and excellent repeatability, stable pressure holding under dynamic load

2. Low-noise optimized main valve structure, reduce running noise of the hydraulic station

3. Stepless pressure adjustment via electrical signal, no manual re-adjustment on site, convenient for automatic production line

4. Optional built-in safety relief valve, double protection for the whole hydraulic system

5. Compact structure, easy installation and maintenance, strong adaptability to harsh workshop environment

Application Range

Suitable for pressure regulation and overload protection of various Machine and hydraulic equipment: hydraulic press, injection molding machine, metal forming machine tool, test bench, engineering machinery, metallurgical hydraulic station and other automated hydraulic system.

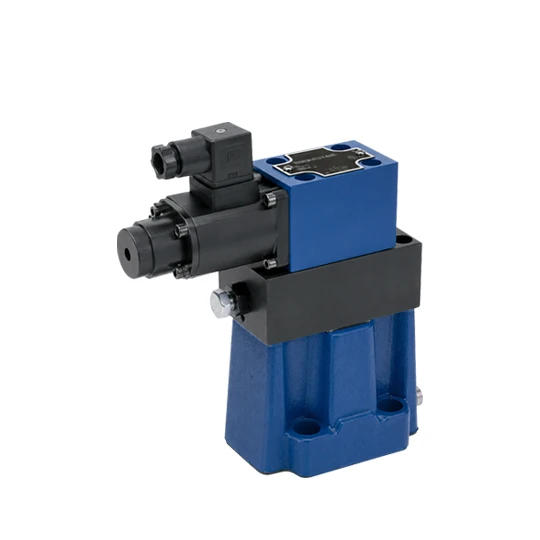

adiffer-ebg-electro-hydraulic-proportional-relief-valve-1
