EFBG-03 Low-Flow Proportional Flow Control Valve

Product Overview

EFBG-03 is an energy-saving electro-hydraulic proportional pressure & flow control Hydraulic valve, originally designed by Yuken. It can independently regulate pressure and flow of the hydraulic system via two separate electrical signals. Built-in temperature compensation ensures stable flow output regardless of oil temperature fluctuations. This subplate-mounted valve is widely adopted for medium & small size Machine hydraulic circuits requiring precise speed and pressure control. It features inlet throttling control and automatically tracks load pressure to maintain minimal pressure difference, reducing power consumption and heat generation.

Technical Specifications

- Model: EFBG-03

- Mounting: Subplate mounting

- Max working pressure: 24.5 MPa (250 bar)

- Flow range: 1 ~125 L/min

- Hysteresis: ≤3%

- Repeatability: ≤1%

- Coil resistance: 10Ω

- Weight: approx.16 kg

- Pressure range option: C type (1.6~15.7MPa), H type (1.8~24.5MPa)

- Feature: Built-in temperature compensation

Working Principle

This multi-function Hydraulic valve integrates proportional flow control and proportional pressure relief function. Two proportional solenoids receive analog electrical signals respectively. One signal sets target flow, adjusting the throttle opening to control the flow delivered into the hydraulic system. The other signal sets maximum system pressure. The valve continuously follows load pressure and keeps low differential pressure, only supplying the minimal required pressure and flow for the Machine actuator. Thanks to temperature compensation structure, flow stays stable when hydraulic oil viscosity changes with temperature.

Core Advantages

1. Combined proportional pressure + flow control, one Hydraulic valve realizes two control functions

2. Built-in temperature compensation, stable flow output under varying oil temperature

3. Energy-saving design, lower power loss and less heat buildup in hydraulic system

4. Low hysteresis and high repeatability for precise motion control

5. Subplate installation, easy maintenance and replacement for different Machine equipment

Application Range

Suitable for hydraulic system of various industrial Machine: injection molding machine, metal forming machinery, hydraulic press, die-casting machine, hydraulic test bench, automation production line, small metallurgical equipment.

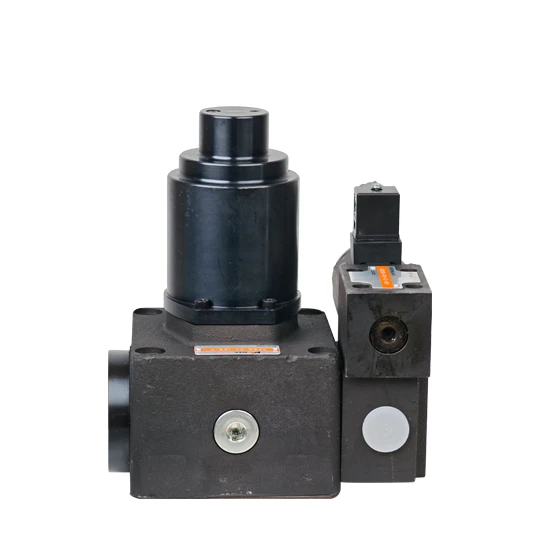

adiffer-efbg-03-electro-hydraulic-proportional-relief-flow-control-valve-02
