Product details

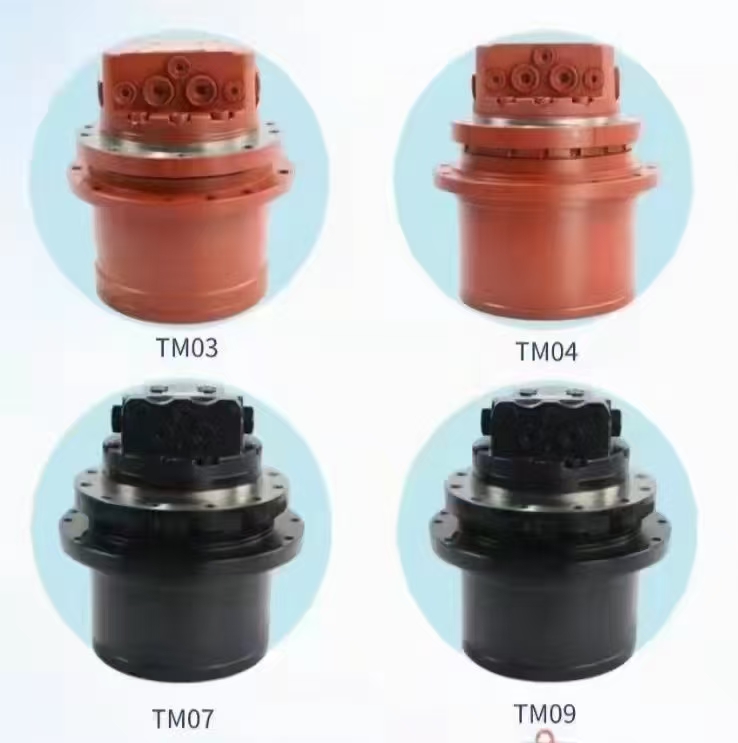

TM03 FINAL DRIVE Travel Assembly

Product Overview

TM03 FINAL DRIVE Travel Assembly is a complete hydraulic travel drive unit widely used on mini excavators. As a core hydraulic power component, this Travel Assembly integrates hydraulic travel motor and planetary reduction gearbox in one compact housing. It converts hydraulic power into torque to drive the tracks of construction Machine. Paired with SWING REDUCER for rotation function, the FINAL DRIVE handles the forward, backward and braking movement of the machine. The TM03 unit features high torque output, compact size and excellent wear resistance, ideal replacement parts for small excavator overhaul.

Technical Specifications

- Model: TM03 FINAL DRIVE Travel Assembly

- Type: Integrated travel motor + planetary gear reducer

- Applicable machine: 1.5~3.5 ton mini excavators

- Motor type: Piston hydraulic motor

- Max output torque: High low-speed high-torque performance

- Max working pressure: 25~30 MPa

- Reduction structure: Multi-stage planetary gear

- Brake: Built-in mechanical parking brake

- Function: Track driving, travel braking, anti-rollback

- Installation: Direct bolt-on replacement

Working Principle

Hydraulic oil enters the piston motor of the FINAL DRIVE Travel Assembly. The motor generates rotary power, then the multi-stage planetary gear set amplifies torque and reduces rotating speed to drive the crawler track. The built-in mechanical brake locks the output shaft when hydraulic pressure drops, preventing the machine from sliding on slopes. While the FINAL DRIVE Travel Assembly controls crawler movement, the SWING REDUCER works separately to deliver torque for the upper house rotation. Both components are critical to the excavator’s full hydraulic system.

Core Advantages

1. All-in-one FINAL DRIVE Travel Assembly, hydraulic motor and planetary reducer integrated, easy to install and replace

2. High torque output, stable performance under heavy load and rough site conditions

3. Built-in reliable parking brake, effectively prevent downhill sliding for the Machine

4. Precision planetary gears, low noise, long service life and low failure rate

5. Perfect matching with corresponding SWING REDUCER to restore full machine operation

Application Range

Mainly used for mini excavators. The TM03 FINAL DRIVE Travel Assembly provides crawler travelling power, matched with SWING REDUCER for swing rotation. Widely applied in small construction Machine, landscaping engineering, municipal maintenance and indoor demolition projects.
