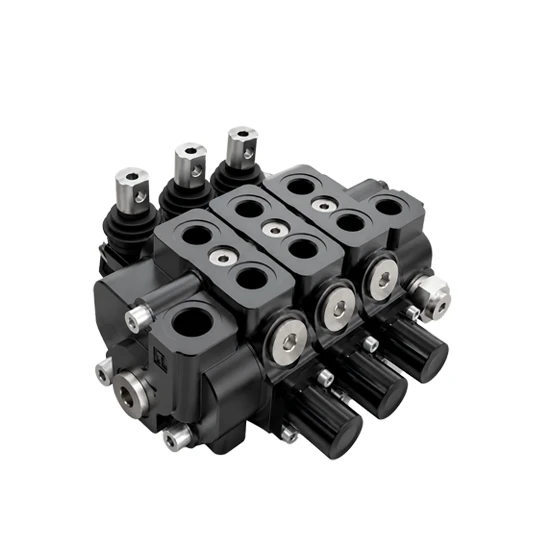

SD6 Hydraulic Valve for Small Loaders & Tractors

Product Overview

SD6 is a modular sectional hydraulic valve, perfectly engineered for small loaders, compact tractors and other mobile hydraulic equipment. As a premium hydraulic valve, it controls the direction, flow and pressure of oil inside the hydraulic system, delivering stable and precise operation for your Machine. Its compact sectional design allows flexible spool quantity configuration from 1 to 12 sections to match different machine functions such as lifting, tilting and auxiliary attachments.

Technical Specifications

- Nominal flow: 45 L/min

- Max working pressure: 315 bar (4600 psi)

- Spool options: 1~12 sections, customizable

- Control modes: manual, pneumatic, hydraulic, electro-hydraulic, cable remote control

- Circuit type: parallel, tandem or series circuit optional

- Built-in: main pressure relief valve + load check valve per section

- Operating temperature: -40℃ ~ +60℃

- Port connection: G / M / UNF / NPT thread available[(Walvoil S....)]

Working Principle

This hydraulic valve distributes pressurized hydraulic oil from the hydraulic system to different actuators. Each independent spool controls one movement of the machine. The built-in load check valve prevents load drop when the handle returns to neutral. Optional load sensing version optimizes power consumption and reduces heat generation for the whole hydraulic system.

Core Advantages

1. Modular sectional structure: easy to add/remove spools, convenient for maintenance and spare parts replacement.

2. Smooth operation: low friction spool design ensures soft, shock-free movement for small loaders and tractors.

3. High durability: cast iron body with precise machining, strong anti-contamination performance, long service life under tough farm and construction site conditions.

4. Multiple control options: support manual lever or remote control to meet different machine design requirements.

5. Integrated protection valves: each section comes with anti-cavitation and anti-shock options to protect your hydraulic system and machine components.

Application Range

Ideal for small loaders, compact tractors, backhoe loaders, mini excavators, truck-mounted cranes, aerial work platforms, boom mowers and other light to medium mobile Machine. Widely used in agricultural, landscaping and small construction fields.
