SD8 Hydraulic Control Valve for Cranes & Farm Machines

Product Overview

SD8 hydraulic control valve is a high-performance sectional hydraulic valve specially designed for cranes and farm machines. It regulates flow, pressure and direction of hydraulic oil within the hydraulic system, enabling reliable and smooth action control of your Machine. The modular sectional structure allows flexible combination of spools from 1 to 12 sections, which can be customized to match multi-function requirements of cranes, tractors and other mobile machinery.

Technical Specifications

- Rated flow: 80 L/min

- Maximum working pressure: 315 bar (4600 psi)

- Spool quantity: 1 ~ 12 sections, customizable

- Control methods: manual, cable, hydraulic, electro-hydraulic control

- Circuit design: parallel / tandem circuit optional

- Built-in components: main pressure relief valve, individual load check valve for each section

- Operating temperature range: -40℃ ~ +60℃

- Port thread: G, NPT, UNF optional

Working Principle

This hydraulic valve distributes pressurized hydraulic fluid from the hydraulic system to different actuators of the Machine. Each spool independently controls one motion, such as lifting, slewing, extending and retracting. The built-in load check valve prevents unexpected load falling when the control lever returns to neutral position. Load sensing version is available to reduce energy loss and heat generation for the whole hydraulic system.

Core Advantages

1. Robust sectional construction: easy to add or remove valve sections, simple maintenance and spare parts replacement.

2. Stable & smooth operation: precision machined spools reduce impact during movement, suitable for crane lifting and farm machinery operation.

3. Strong anti-pollution capability: high-quality valve body, good adaptability to harsh working environments like farms and construction sites.

4. Multiple control options: support manual operation and remote electro-hydraulic control to satisfy different Machine design schemes.

5. Integrated safety protection: built-in relief and anti-cavitation valves to protect the hydraulic system and extend service life of related components.

Application Range

Perfectly applied for truck-mounted cranes, small mobile cranes, tractors, harvesters, feeders, agricultural loaders and other farm machines. Also suitable for light construction equipment, forestry machinery and other mobile hydraulic Machine.

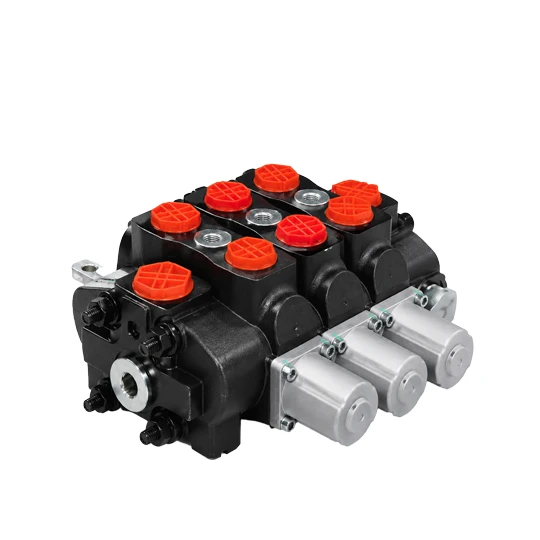

adiffer-sd8-hssd8-sectional-directional-control-valves
