SD180 High-Flow Hydraulic Valve for Excavators & Cranes

Product Overview

SD180 high-flow hydraulic valve is a heavy-duty sectional hydraulic valve engineered for excavators, mobile cranes and other large mobile machinery. As a premium hydraulic valve, it precisely governs oil direction, flow rate and pressure inside the hydraulic system, delivering powerful, coordinated movement control for your Machine. Its modular sectional structure supports custom spool combinations to satisfy complex multi-action demands of heavy-duty working equipment.

Technical Specifications

- Rated flow: 180 L/min

- Max working pressure: 350 bar (5075 psi)

- Spool quantity: 1~12 sections, customizable

- Control modes: manual, cable remote, hydraulic, electro-hydraulic proportional control

- Circuit type: parallel / load-sensing circuit optional

- Built-in parts: main relief valve, individual load check valve, anti-cavitation valve per section

- Operating temperature: -30℃ ~ +70℃

- Port thread: G, NPT, SAE thread optional

Working Principle

This hydraulic valve allocates pressurized hydraulic fluid from the hydraulic system to different actuators of the Machine. Each valve spool independently manages one movement including boom lifting, arm telescoping, bucket digging and slewing. The built-in load check valve locks loads securely and prevents sudden dropping when the handle returns to neutral. Load-sensing design matches output flow with actual load demand, cutting energy waste and heat buildup in the hydraulic system.

Core Advantages

1. High-flow heavy-duty design: supports large displacement output, meets high-load working requirements of excavators and cranes.

2. Modular sectional assembly: easy to add or remove valve sections, convenient for maintenance and spare part replacement.

3. Precision machining: low-leakage spool assembly, smooth operation with minimal impact during frequent compound actions.

4. Excellent contamination resistance: robust cast valve body, stable performance under dusty construction and outdoor working conditions.

5. Integrated safety protection: multi built-in valves safeguard the hydraulic system and other machine components against overload and pressure shock.

Application Range

Mainly used for medium & large excavators, truck-mounted cranes, mobile cranes, material handlers, forestry harvesters and other heavy mobile Machine. Widely adopted in construction, mining, waste recycling and heavy lifting industries.

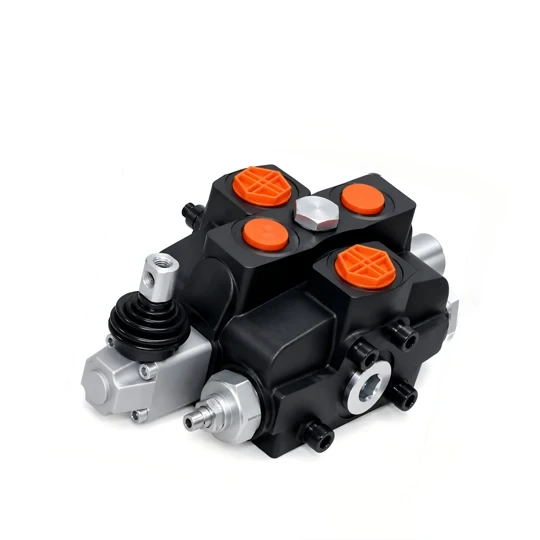

adiffer-sd180-sds180-sectional-directional-control-valves-1.webp-1
