DCV100 Hydraulic Control Valve for Loaders & Forklifts

Product Overview

DCV100 sectional hydraulic control valve is a robust modular hydraulic valve specially engineered for loaders, forklifts and material handling equipment. As a premium hydraulic valve, it accurately controls hydraulic oil flow, direction and pressure within the hydraulic system to deliver stable, responsive lifting and tilting operation for your Machine. Its sectional modular design supports flexible spool configuration from 1 to 12 sections, perfectly matching multi-function requirements of front loaders, warehouse forklifts and other mobile handling machinery.

Technical Specifications

- Rated flow: 100 L/min

- Max working pressure: 350 bar (5075 psi)

- Spool quantity: 1~12 sections, customizable

- Control modes: manual lever, cable remote, pneumatic, hydraulic, electro-hydraulic control

- Circuit type: parallel circuit

- Built-in components: main pressure relief valve, independent load check valve, anti-cavitation valve per section

- Operating temperature: -40℃ ~ +80℃

- Port thread: G, NPT, UNF, SAE thread optional

Working Principle

This hydraulic valve distributes pressurized hydraulic fluid from the hydraulic system to different actuators of the Machine. Each spool independently manages lifting, tilting and auxiliary movements of loaders and forklifts. The built-in load check valve locks the load firmly to prevent unexpected cargo drop when the control handle returns to neutral. The integrated relief valve limits peak pressure, protecting the whole hydraulic system from overload damage during frequent loading and unloading cycles.

Core Advantages

1. Modular sectional construction: easy to add or remove valve sections, convenient for maintenance and spare parts replacement.

2. Responsive & smooth operation: precision-machined spool reduces internal leakage and operating shock, ideal for frequent forklift cargo lifting.

3. Heavy-duty cast valve body: excellent anti-contamination performance, stable performance under dusty warehouse and construction site environments.

4. Multiple control options: manual and remote electro-hydraulic control available to satisfy different Machine design schemes.

5. Integrated safety protection: built-in relief and anti-cavitation valves safeguard the hydraulic system and machine components.

Application Range

Designed for wheel loaders, skid steer loaders, counterbalance forklifts, rough terrain forklifts, pallet handlers and other material handling Machine. Also widely applied in small construction machinery and agricultural loaders.

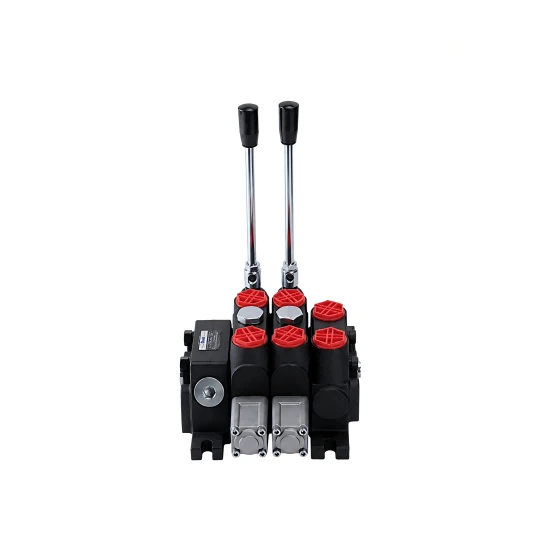

adiffer-dcv100-sectional-directional-control-valves.webp.webp.wbp_
