A11V Axial Piston Pumps

Product Overview

A11V (A11VO / A11VLO) is swashplate variable displacement axial piston pump designed for open-circuit hydraulic system. It converts mechanical power into hydraulic power and acts as the main power source for heavy-duty mobile Machine. A11V series features high power density, robust structure and flexible control modes, widely adopted as main hydraulic pump for construction and mining machinery. A11VLO variant comes with built-in charge pump for better self-priming performance.

Technical Specifications

- Model: A11VO (standard), A11VLO (with integrated charge pump)

- Displacement: 40, 60, 75, 95, 130, 145, 190, 260 cm³/rev

- Nominal pressure: 350 bar

- Peak pressure: 400 bar

- Design: Swashplate axial piston structure

- Control options: LR, DLR, LG, DR, DFR, electro-proportional control

- 100% through-drive available, can connect gear pump or another piston pump

- Dual case drain ports; A11VLO built-in impeller charge pump for improved suction

- SAE standard mounting flange and oil ports

Working Principle

When the drive shaft rotates, cylinder block and pistons revolve together. Pistons slide on the swashplate via slippers and perform reciprocating axial movement. Oil suction happens when pistons retract; oil discharge occurs when pistons compress. By adjusting the swashplate tilt angle, piston stroke changes continuously, so displacement and output flow can be infinitely adjusted to match varying load demand of the hydraulic system.

Key Features

1. High power density, compact footprint, high volumetric efficiency under heavy pressure

2. Multiple control selections: load sensing, constant power, pressure cut-off, proportional control

3. 100% through-drive design, convenient multi-pump combination to simplify system layout

4. A11VLO version with built-in charge pump, excellent self-priming capability

5. Power setting adjustable on-site even during pump running

6. Heavy-duty cast iron housing, stable performance under shock and vibration, long service life

7. Low noise and wide speed range, suitable for harsh outdoor working environments

Application

- Construction machinery: excavator main pump, rotary drilling rig, concrete pump truck, heavy crane

- Mining equipment: underground mining vehicle, rock drill, mining loader

- Mobile machinery: large wheel loader, road paver, forestry machine

- Marine & offshore: deck winch and marine hydraulic power pack

- Heavy industrial hydraulic power unit and hydraulic press

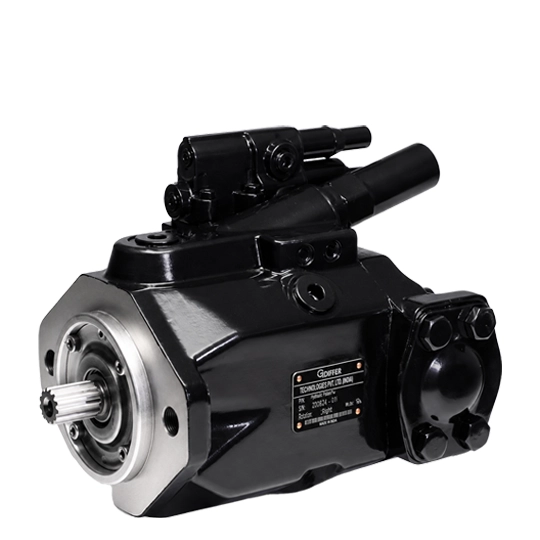

adiffer-da11v-axial-piston-pump-re-type-1
