A4VSO Heavy Duty Piston Pumps

Product Overview

A4VSO Heavy Duty Piston Pumps is swashplate type variable displacement axial piston pump for open-circuit hydraulic system. It converts mechanical torque into hydraulic power and acts as the core power source for heavy-duty industrial and high-load Machine. Famous for ultra-high pressure rating, robust cast housing and modular control design, this series is widely adopted in heavy industry, metallurgy and large hydraulic stations. It supports multiple control modes and through-drive combination for flexible hydraulic system layout[(Bosch Rexr...)].

Technical Specifications

- Series: 1x / 30

- Displacement sizes: 40,71,125,180,250,355,500,750,1000 cm³/rev

- Nominal pressure: 350 bar

- Peak pressure: 400 bar

- Structure: Swashplate axial piston design

- Control options: DR, FR, DFR, LR, MA, EM, HS, EO, HD, DS

- 100% through-drive available, can assemble additional pump

- Visual swivel angle indicator

- Flexible mounting position, excellent suction performance

- Optional special version for HFC fire-resistant hydraulic fluid

Working Principle

When drive shaft rotates, cylinder block and piston-slipper assemblies rotate together. Pistons slide on the swashplate and generate reciprocating axial movement. Oil suction occurs when pistons retract; oil discharge happens when pistons compress. Adjusting the tilt angle of swashplate changes piston stroke, so displacement and output flow can be steplessly modified to match varying load requirements of the hydraulic system. Pre-compression structure reduces pressure pulsation and vibration.

Key Features

1. Heavy-duty high-pressure design, stable continuous operation under 350 bar working pressure

2. Modular control structure, easy to swap different control covers

3. Built-in visual swivel angle indicator for convenient status inspection

4. Full through-drive design, multi-pump combination to simplify your Machine hydraulic circuit

5. Low pressure pulsation, low noise, high volumetric efficiency and long service life

6. Drive shaft can bear both axial and radial loads, strong anti-shock & anti-vibration capability

7. Support variable speed drive, optional fire-resistant hydraulic fluid version for special working conditions

Application

- Metallurgical equipment: steel rolling machine, hydraulic press, metal forging machine

- Heavy industry: large hydraulic power pack, injection molding machine, test bench

- Mining machinery: heavy mining equipment, rock crushing system

- Marine industry: deck machinery, marine hydraulic station

- Large construction machine: heavy crane, tunnel boring machine

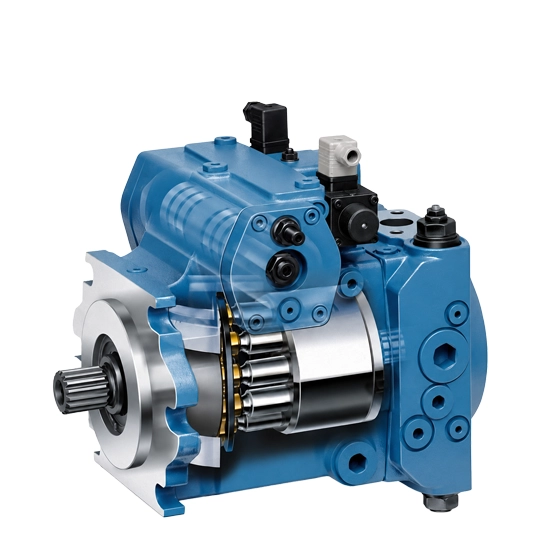

adiffer-da4vso-high-pressure-axial-pump-re-type-3
