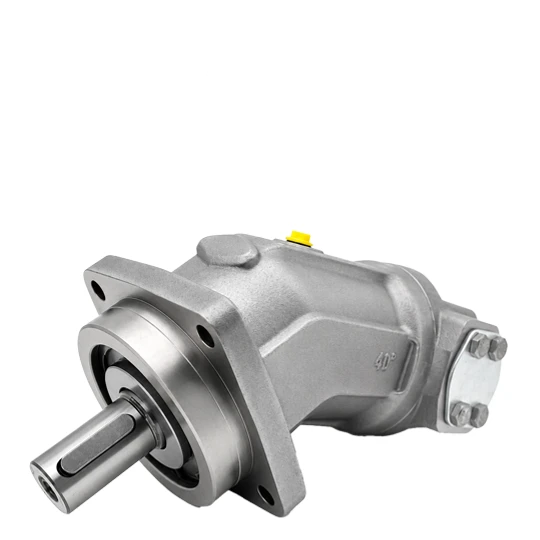

A2FO Bent Axis Pumps

Product Overview

A2FO Bent Axis Pumps is fixed displacement bent-axis axial piston pump for open-circuit hydraulic system. It converts rotary mechanical power into high-pressure hydraulic power and serves as a reliable high-power source for heavy-duty Machine. Unlike swashplate pumps, A2FO adopts bent-axis structure with tapered pistons. It features outstanding efficiency, high power density and robust bearing system. This fixed pump delivers flow proportional to rotating speed, widely used in mobile and industrial hydrostatic transmission. A2FO is pump version, while A2FM is the matching bent-axis motor.

Technical Specifications

- Series: 6 series

- Displacement range: 5,10,12,16,22,28,32,45,56,63,80,107,125,160,180,200,250,355,500,750,1000 cm³/rev

- Nominal pressure:

- 5cc:315 bar

- 10~200cc:400 bar

- 250~1000cc:350 bar

- Peak pressure:

- 5cc:350 bar

- 10~200cc:450 bar

- 250~1000cc:400 bar

- Structure: Bent-axis tapered piston, fixed displacement

- Shaft option: Keyed shaft, splined shaft, conical shaft

- Port standard: SAE flange or threaded ports

- Rotation: Clockwise / Counter-clockwise optional

- One-piece tapered piston with piston ring sealing

- Drive shaft can withstand radial load

Working Principle

The drive shaft and cylinder block are arranged at a fixed tilt angle (bent-axis design). When the shaft rotates, tapered pistons revolve together with cylinder block. Pistons reciprocate along the cylinder bore, realizing oil suction and oil discharge. Since the tilt angle is fixed, displacement keeps constant. The pump output flow only changes with driving speed. Spherical valve plate achieves self-centering, reducing friction and improving volumetric efficiency of the hydraulic system.

Key Features

1. Bent-axis design, ultra-high total efficiency, low heat generation under continuous high pressure

2. Fixed displacement structure, simple construction, fewer wearing parts, long service life

3. High power density, compact size and favorable power-to-weight ratio

4. Spherical distribution plate, automatic centering, low noise and stable running

5. Reinforced shaft bearing design, strong shock resistance, suitable for severe vibration working conditions

6. Multiple shaft and port selections, easy installation and integration into your Machine

7. Optional long-life bearing for large displacement models (250~1000cc)

8. Good self-priming performance, compatible with standard mineral hydraulic oil

Application

- Construction machinery: concrete pump truck, crane, road roller, drilling rig

- Wind power: wind turbine pitch control hydraulic system

- Marine equipment: deck winch, marine hydraulic power unit

- Mining machinery: underground mining vehicle, rock drilling equipment

- Industrial hydraulics: hydraulic press, test bench, heavy power pack
