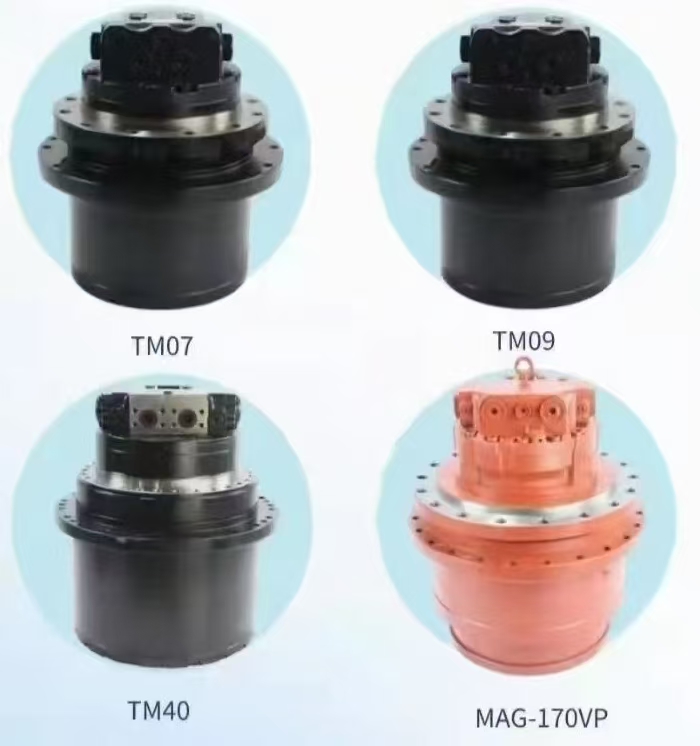

TM07 FINAL DRIVE Travel Assembly

Product Overview

TM07 FINAL DRIVE Travel Assembly is integrated hydraulic travel motor & planetary reducer assembly, also known as travel device for 5–6 ton mini crawler excavators. It converts hydraulic power from the hydraulic system into high torque low-speed rotation to drive track movement of the Machine. This unit combines variable two-speed hydraulic motor and multi-stage planetary gear reducer in one compact housing. While FINAL DRIVE handles crawler travel, SWING REDUCER is the separate unit for upper structure rotation.

Technical Specifications

- Model: TM07 (TM07VA, JMV44/22 variant)

- Displacement: 22 / 44 cc/rev (2-speed switchable)

- Rated working pressure: 255 bar

- Max output torque: 9500 N·m

- Gear reduction ratio: 53.7

- Output speed: 25 / 50 rpm (low / high speed)

- Built-in: counterbalance valve, parking brake, relief valve

- Bidirectional rotation

- Operating temperature range: -20℃ ~ 80℃

- Applicable machines: 5~6 ton mini excavator, fit Volvo EC55, Doosan DH55/DH60, Hyundai R60, XCMG XE60, Sany SY60 etc.

Working Principle

High-pressure oil enters the hydraulic motor inside Travel Assembly, pushing piston groups to rotate motor shaft. The motor high-speed low-torque power transmits to multi-stage planetary gear set inside FINAL DRIVE. Planetary reducer amplifies torque and reduces speed to drive sprocket and track. Two-speed valve automatically switches between high-speed travel for moving and low-speed high-torque for climbing or digging. Spring-applied hydraulic release parking brake locks the drive when machine stops to prevent sliding on slopes.

Key Features

1. All-in-one compact integrated design: hydraulic motor + planetary FINAL DRIVE in single housing, easy installation

2. 2-speed automatic shifting, balance valve prevents rollback on slopes

3. Built-in mechanical parking brake, reliable holding performance

4. Heavy-duty planetary gears with carburizing heat treatment, strong wear resistance

5. High torque output, stable performance under muddy, bumpy construction site

6. Integrated relief protection to avoid overload damage for hydraulic system

7. Standard mounting flange and port layout, interchangeable with OEM original parts

8. Low noise, good sealing performance, long service life for mini excavation Machine

Application

- Mini crawler excavator: 5–6 ton excavators, Volvo EC55B, Doosan DH55 DH60, Hyundai R60, XCMG60, Sany SY60

- Small crawler drilling rig, crawler mulcher and other compact tracked construction Machine

- Matching spare part together with SWING REDUCER for complete excavator hydraulic drive system
