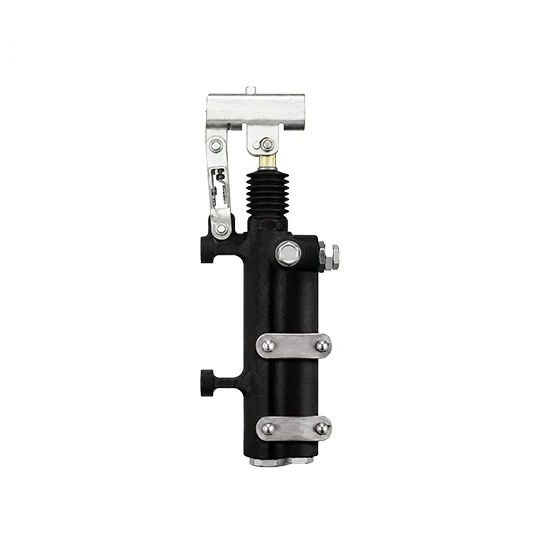

PMO Hydraulic Hand Pumps

Product Overview

PMO hydraulic hand pumps are portable manual hydraulic power units. They generate hydraulic pressure by manually actuating the lever when no electricity is available. The PMO series comes with an integrated oil reservoir, different from wall-mounted hand pumps, making it an all-in-one compact pressure source for hydraulic cylinders, clamping tools and test equipment. It supplies stable power for your hydraulic system and Machine.

Technical Specifications (Typical PMO model)

- Max working pressure: 350 bar

- Pump type: Single-acting / double-acting optional

- Structure: Built-in oil tank

- Port thread: G3/8" or 1/4 NPT optional

- Pump body: Cast iron

- Recommended oil: ISO VG mineral hydraulic oil

- Optional accessories: Pressure gauge, safety relief valve, quick couplings

- Operation: Two-speed design — large flow at low pressure for fast advance, small flow at high pressure to reduce hand effort

Working Principle

Swing the hand lever to drive the internal piston reciprocation. At low load, the pump delivers large flow for rapid cylinder extension. Once pressure rises against heavy load, it automatically shifts to high-pressure small flow mode to save labor. The unloading valve releases pressure to retract the cylinder after finishing work.

Key Features

1. Integrated oil tank, no separate tank required, easy to move

2. Two-speed pumping design, lower operating force under high pressure

3. Built-in overpressure relief valve to protect hydraulic circuit

4. Heavy-duty cast iron pump body, excellent sealing performance

5. Compact all-in-one structure, simple maintenance, few wearing parts

6. Multiple tank volume options for different working durations

Application

Workshop clamping, equipment lifting, hydraulic pressure testing, machinery overhaul, field maintenance, emergency operation for mobile Machine and hydraulic system.
