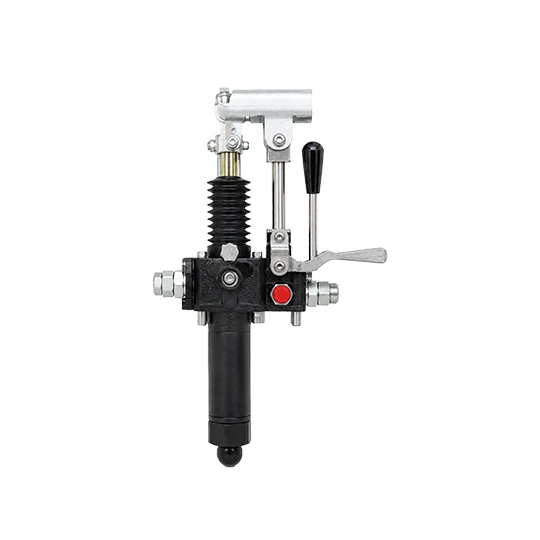

PMD Hydraulic Hand Pumps

Product Overview

PMD hydraulic hand pumps are double-acting tank-mounted manual hydraulic power units, designed to drive double-acting hydraulic cylinders. Equipped with built-in 4/3 directional control valve, this pump can control cylinder extension, hold pressure and retraction directly by manual lever operation. It serves as independent portable power source for your hydraulic system and Machine, ideal for sites without electricity supply.

Technical Specifications (Typical PMD series)

- Pump type: Double acting hand pump

- Displacement: 6 ~ 45 cc per cycle

- Max working pressure: up to 350–420 bar

- Valve function: 4/3 closed centre directional valve

- Body material: Cast iron

- Port thread: G3/8" or 1/4 NPT optional

- Mounting: Tank-mounted design

- Recommended fluid: ISO VG mineral hydraulic oil

- Optional: Built-in relief valve, pressure gauge, quick couplings

- Operation: Double-stroke pumping, oil output on both up and down lever strokes

Working Principle

Swing the operating lever, the internal piston generates oil flow on both push and pull strokes to improve working efficiency. The integrated 4/3 directional valve switches oil flow between port A and port B. You can control forward movement, maintain pressure or reverse retraction for double-acting cylinders. Built-in relief valve limits maximum pressure to protect the hydraulic circuit from overload damage.

Key Features

1. Double-acting pumping structure, continuous oil output on both lever strokes, faster operation

2. Integral 4/3 directional valve, directly control extend & retract of double-acting cylinders

3. Cast iron pump body, wear-resistant piston, robust for heavy-duty intermittent work

4. Built-in safety relief valve for overpressure protection

5. Tank-mounted installation, compact assembly, easy to integrate into Machine

6. Simple operation, low maintenance, suitable for field emergency hydraulic work

Application

Hydraulic clamping, lifting & positioning, workshop fixture control, agricultural machinery, mobile maintenance, marine emergency actuators, hydraulic test benches and all hydraulic system where double-acting cylinders are used without electric power.
